PANORAMIC VIEW MONITOR SYSTEM

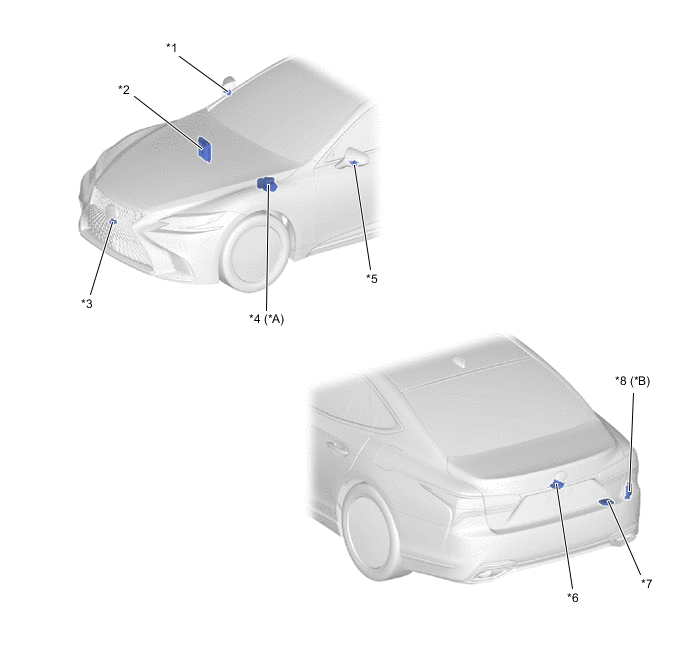

| *A | Models with Vacuum Brake Booster | *B | Models with Blind Spot Monitor System |
| *1 | Side Television Camera Assembly RH | *2 | ECM |
| *3 | Front Television Camera Assembly | *4 | Skid Control ECU |
| *5 | Side Television Camera Assembly LH | *6 | Television Camera Assembly |
| *7 | Clearance Warning ECU Assembly | *8 | Blind Spot Monitor Sensor RH |
| *A | Models with Electronically Controlled Brake System | - | - |

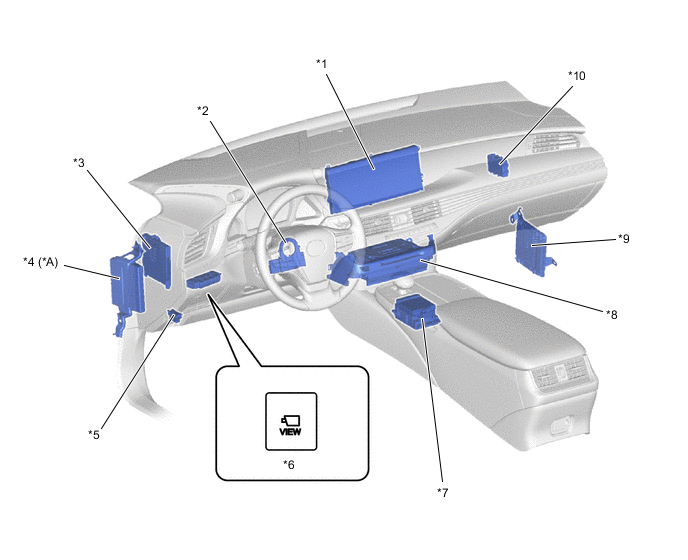

| *1 | Multi-display | *2 | Steering Sensor |
| *3 | Main Body ECU (Multiplex Network Body ECU) | *4 | Skid Control ECU Assembly |
| *5 | DLC3 | *6 | Panoramic View Monitor Main Switch |
| *7 | Remote Touch (Remote Operation Controller Assembly) | *8 | Radio Receiver Assembly |
| *9 | Parking Assist ECU | *10 | Central Gateway ECU (Network Gateway ECU) |
