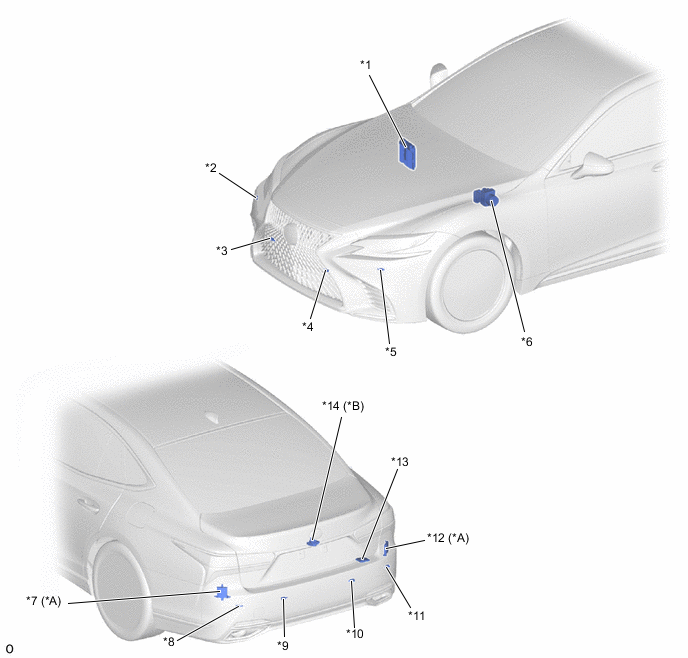

| *A |
Models with Blind Spot Monitor System |
*B |
Models with Panoramic View Monitor System |
| *1 |
ECM |
*2 |
Front Corner Ultrasonic Sensor RH |
| *3 |
Front Center Ultrasonic Sensor RH |
*4 |
Front Center Ultrasonic Sensor LH |
| *5 |
Front Corner Ultrasonic Sensor LH |
*6 |
Skid Control ECU |
| *7 |
Blind Spot Monitor Sensor LH |
*8 |
Rear Corner Ultrasonic Sensor LH |
| *9 |
Rear Center Ultrasonic Sensor LH |
*10 |
Rear Center Ultrasonic Sensor RH |
| *11 |
Rear Corner Ultrasonic Sensor RH |
*12 |
Blind Spot Monitor Sensor RH |
| *13 |
Clearance Warning ECU Assembly |
*14 |
Television Camera Assembly |
