REAR SUSPENSION SYSTEM

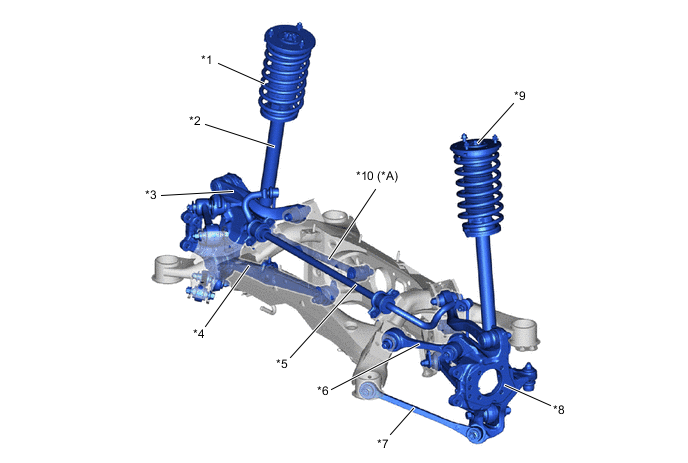

Figure 1. Models without Air Suspension System
| *A | Models without LDH System | - | - |
| *1 | Rear Coil Spring | *2 | Rear Shock Absorber Assembly |
| *3 | Rear Upper Control Arm Assembly | *4 | Rear No. 2 Suspension Arm Assembly |
| *5 | Rear Stabilizer Bar | *6 | Rear No. 1 Suspension Arm Assembly |
| *7 | Lower Control Arm Assembly | *8 | Rear Axle Carrier Sub-assembly |
| *9 | Rear Suspension Support Assembly | *10 | Toe Control Link Sub-assembly |

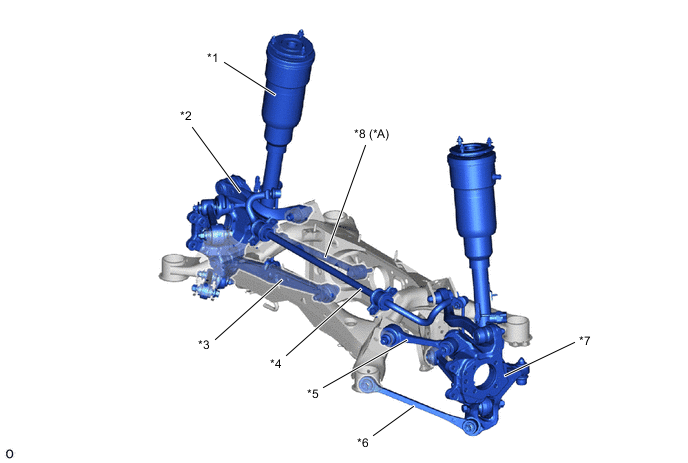

Figure 2. Models with Air Suspension System
| *A | Models without LDH System | - | - |
| *1 | Rear Pneumatic Cylinder with Shock Absorber Assembly | *2 | Rear Upper Control Arm Assembly |
| *3 | Rear No. 2 Suspension Arm Assembly | *4 | Rear Stabilizer Bar |
| *5 | Rear No. 1 Suspension Arm Assembly | *6 | Lower Control Arm Assembly |
| *7 | Rear Axle Carrier Sub-assembly | *8 | Toe Control Link Sub-assembly |
