CRUISE CONTROL SYSTEM

Figure 1. Models with 8GR-FKS Engine

B0056T7C01
*1

Throttle Body with Motor Assembly


  • Throttle Control Motor

  • Throttle Position Sensor

 *2 ECM
*3 Skid Control ECU - -

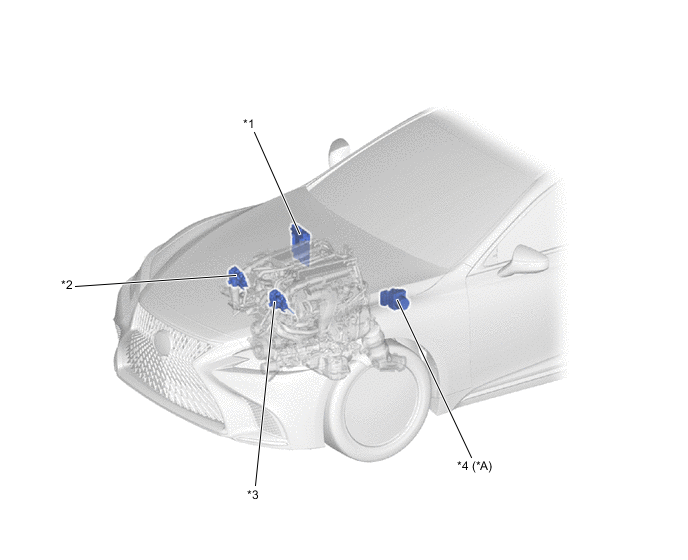

Figure 2. Models with V35A-FTS Engine

B0056QKC01
*A Models with Vacuum Brake Booster - -
*1 ECM *2

Throttle Body with Motor Assembly (Bank 1)


  • Throttle Control Motor

  • Throttle Position Sensor
*3

Throttle Body with Motor Assembly (Bank 2)


  • Throttle Control Motor

  • Throttle Position Sensor

 *4 Skid Control ECU

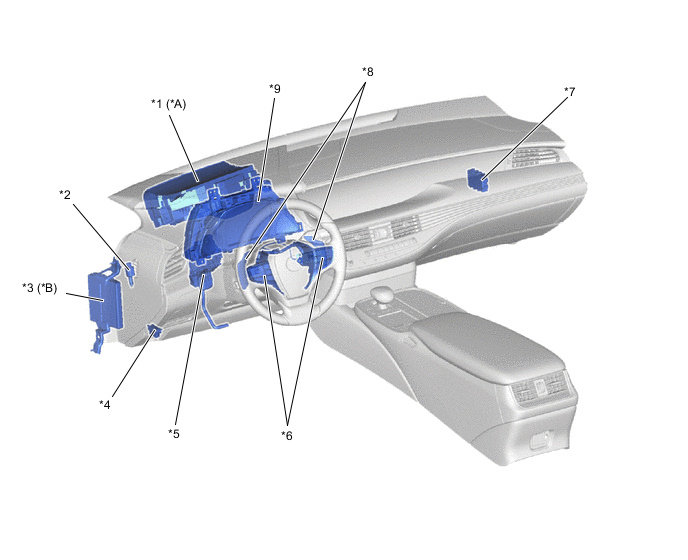

B0056OHC01
*A Models with Headup Display *B Models with Electronically Controlled Brake System
*1 Headup Display (Meter Mirror Sub-assembly) *2 Stop Light Switch Assembly
*3 Skid Control ECU Assembly *4 DLC3
*5 Accelerator Pedal Sensor Assembly *6

Steering Pad Switch Assembly


  • Cruise Control Main Switch

  • -SET Switch

  • +RES Switch

  • CANCEL Switch
*7 Central Gateway ECU (Network Gateway ECU) *8 Paddle Shift Switch (Transmission Shift Switch Assembly)
*9

Combination Meter Assembly


  • Cruise Control Indicator

  • Cruise Control SET Indicator

  • Multi-information Display

  • Master Warning Indicator

  • Meter Buzzer

 - -
