CRUISE CONTROL SYSTEM

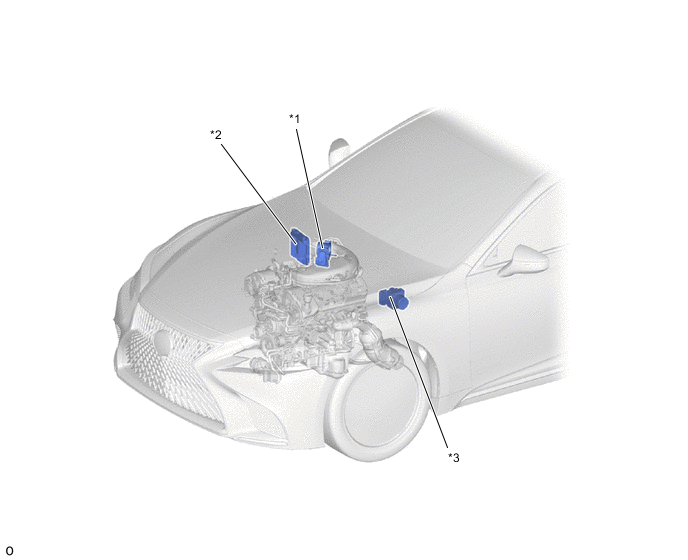

B0056T7C01
*1

Throttle Body with Motor Assembly


  • Throttle Control Motor

  • Throttle Position Sensor

 *2 ECM
*3 Skid Control ECU - -

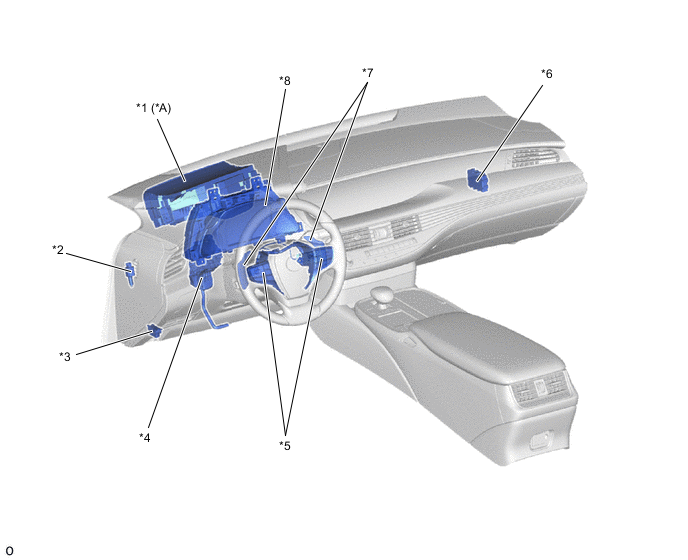

B0056MPC01
*A Models with Headup Display - -
*1 Headup Display (Meter Mirror Sub-assembly) *2 Stop Light Switch Assembly
*3 DLC3 *4 Accelerator Pedal Sensor Assembly
*5

Steering Pad Switch Assembly


  • Cruise Control Main Switch

  • -SET Switch

  • +RES Switch

  • CANCEL Switch

 *6 Central Gateway ECU (Network Gateway ECU)
*7 Paddle Shift Switch (Transmission Shift Switch Assembly) *8

Combination Meter Assembly


  • Cruise Control Indicator

  • Cruise Control SET Indicator

  • Multi-information Display

  • Master Warning Indicator

  • Meter Buzzer
