PRE-COLLISION SYSTEM

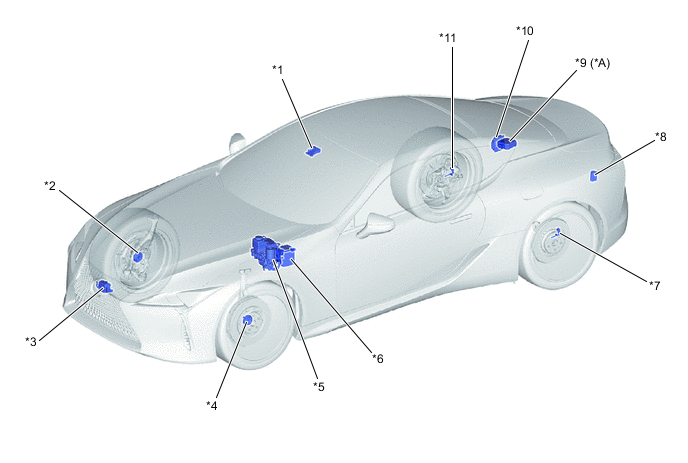

A004CSEC01
*A Models with LEXUS Dynamic Handling (LDH) System - -
*1 Forward Recognition Camera *2 Front Speed Sensor RH
*3 Millimeter Wave Radar Sensor Assembly *4 Front Speed Sensor LH
*5 Brake Master Cylinder with Simulator Assembly *6 Brake Actuator Assembly
*7 Rear Speed Sensor LH *8 No. 3 Semiconductor Power Integration ECU
*9 RR Steering Control ECU *10 Absorber Control ECU
*11 Rear Speed Sensor RH - -

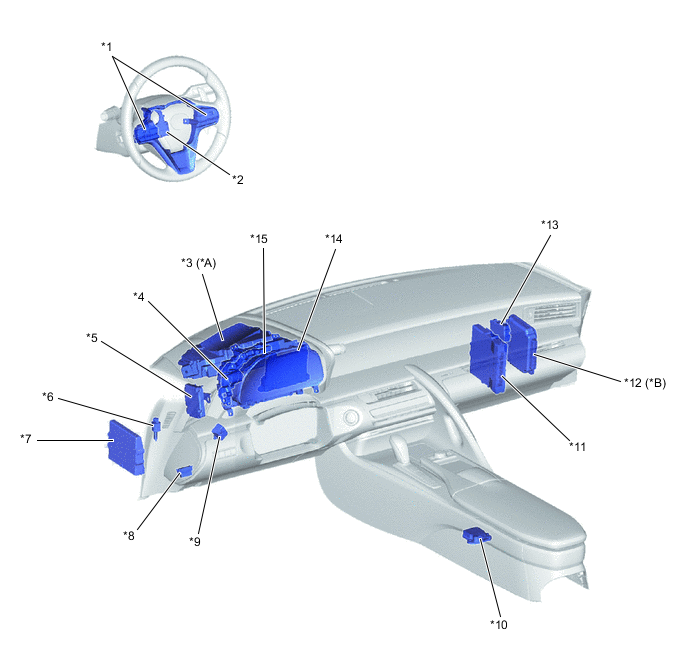

A004C7SC01
*A Models with Headup Display *B Models with LEXUS Dynamic Handling (LDH) System
*1 Steering Pad Switch Assembly *2 Steering Sensor
*3 Meter Mirror Sub-assembly *4 VSC OFF Switch (No. 2 Combination Switch Assembly)
*5 Driving Support ECU Assembly *6 Stop Light Switch Assembly
*7 Skid Control ECU Assembly *8 DLC3
*9 Pre-collision City Buzzer *10 Yawrate Sensor
*11 Hybrid Vehicle Control ECU Assembly *12 FR Steering Control ECU
*13 Central Gateway ECU (Network Gateway ECU) *14 Air Conditioning Amplifier Assembly
*15 Combination Meter Assembly - -
