AIRBAG SYSTEM


  1. CONSTRUCTION


    1. The dual-stage SRS driver airbag is built into the horn button assembly.

    2. The SRS driver airbag consists of an inflator and a bag.

    3. The dual-stage airbag contains a set of 2 initiators and propellants. The airbag ECU assembly helps optimize the SRS airbag deployment rate by controlling the ignition timing of these initiators.

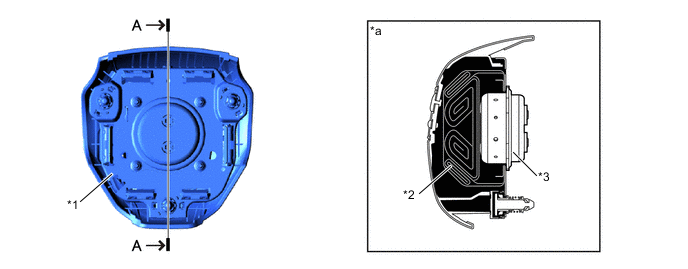

      A004CTHC02
      *1 Driver Airbag (Horn Button Assembly) *2 Bag
      *3 Inflator - -
      *a A - A Cross Section - -
