BLIND SPOT MONITOR SYSTEM

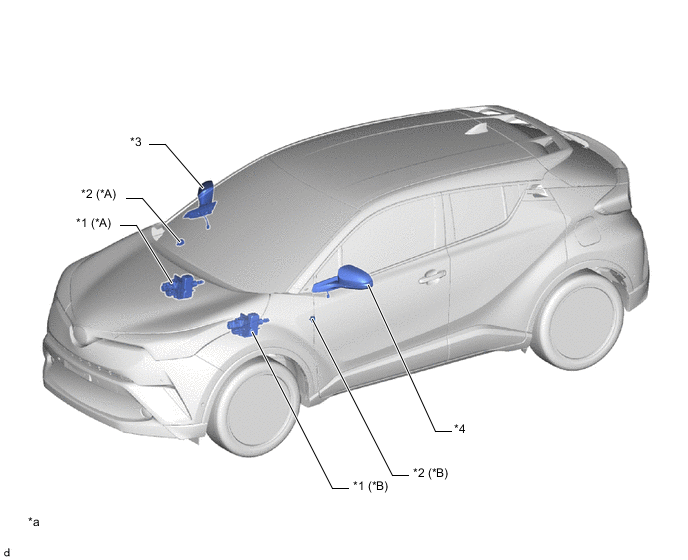

| *A | RHD Models | *B | LHD Models |
| *1 | Brake Booster with Master Cylinder Assembly
|
*2 | RCTA Buzzer (Blind Spot Monitor Buzzer) |
| *3 | Outer Rear View Mirror Assembly RH | *4 | Outer Rear View Mirror Assembly LH |
| *a | The illustrations shown are examples only. | - | - |

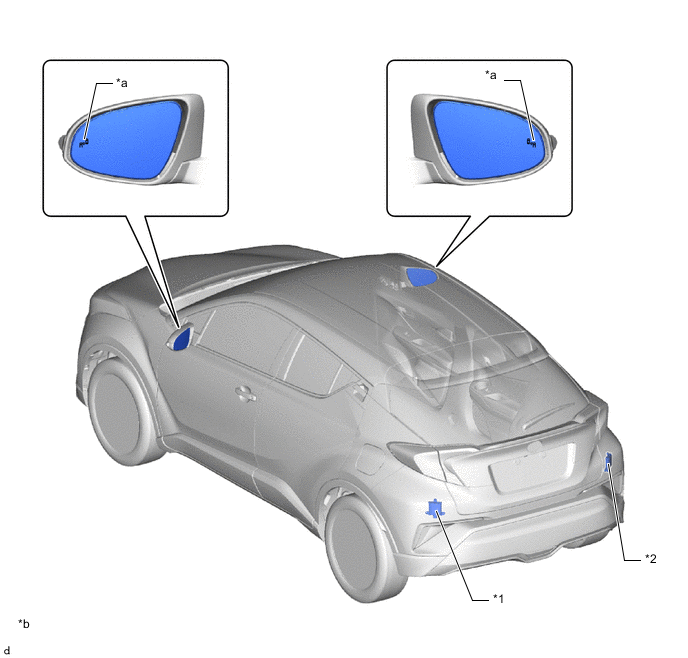

| *1 | Blind Spot Monitor Sensor LH | *2 | Blind Spot Monitor Sensor RH |
| *a | Outer Rear View Mirror Indicator Light | *b | The illustrations shown are examples only. |

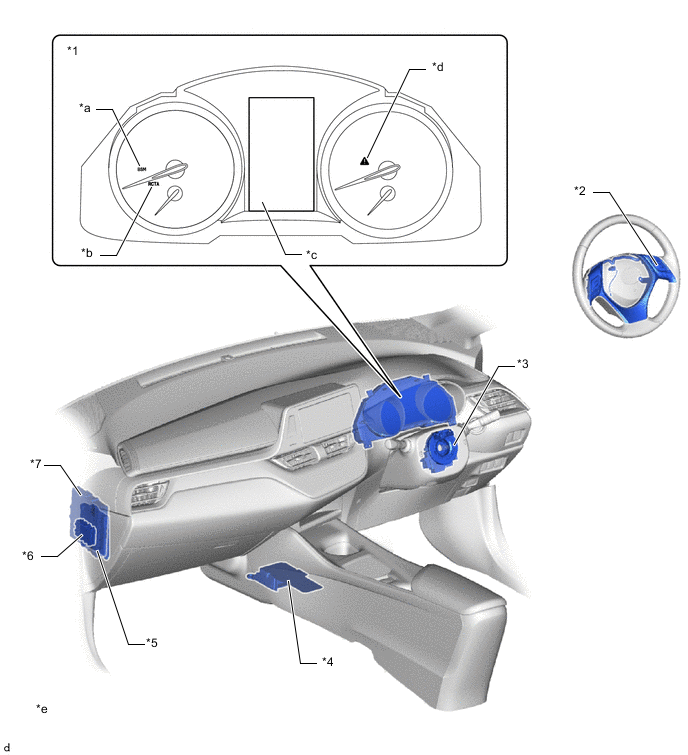

Figure 1. LHD Models
| *1 | Combination Meter Assembly | *2 | Steering Pad Switch Assembly |
| *3 | Main Body ECU (Multiplex Network Body ECU) | *4 | Hybrid Vehicle Control ECU |
| *5 | Central Gateway ECU (Network Gateway ECU) | *6 | Airbag Sensor Assembly
|
| *7 | Spiral Cable with Sensor Sub-assembly
|
- | - |
| *a | BSM Indicator Light | *b | RCTA Indicator Light |
| *c | Multi-information Display | *d | Master Warning Light |
| *e | The illustrations shown are examples only. | - | - |

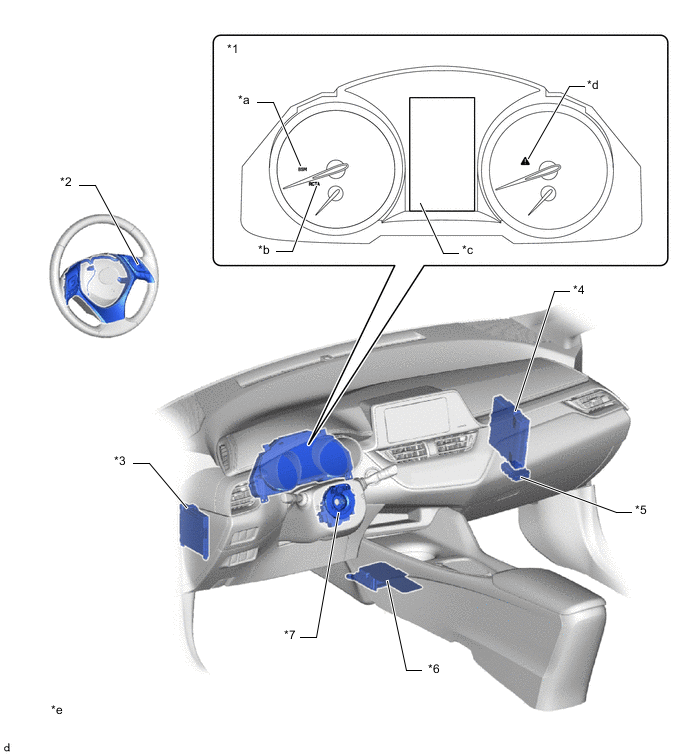

Figure 2. RHD Models
| *1 | Combination Meter Assembly | *2 | Steering Pad Switch Assembly |
| *3 | Spiral Cable with Sensor Sub-assembly
|
*4 | Airbag Sensor Assembly
|
| *5 | Main Body ECU (Multiplex Network Body ECU) | *6 | Central Gateway ECU (Network Gateway ECU) |
| *7 | Hybrid Vehicle Control ECU | - | - |
| *a | BSM Indicator Light | *b | RCTA Indicator Light |
| *c | Multi-information Display | *d | Master Warning Light |
| *e | The illustrations shown are examples only. | - | - |
