CAN COMMUNICATION SYSTEM

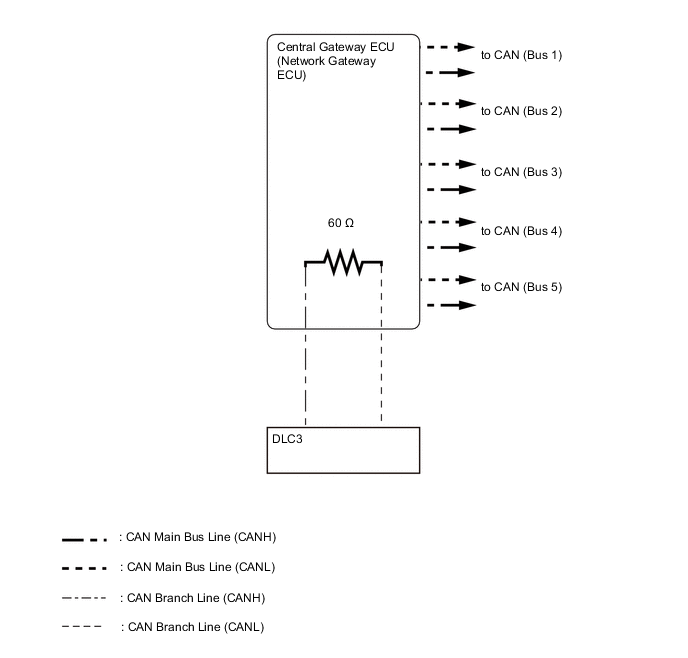

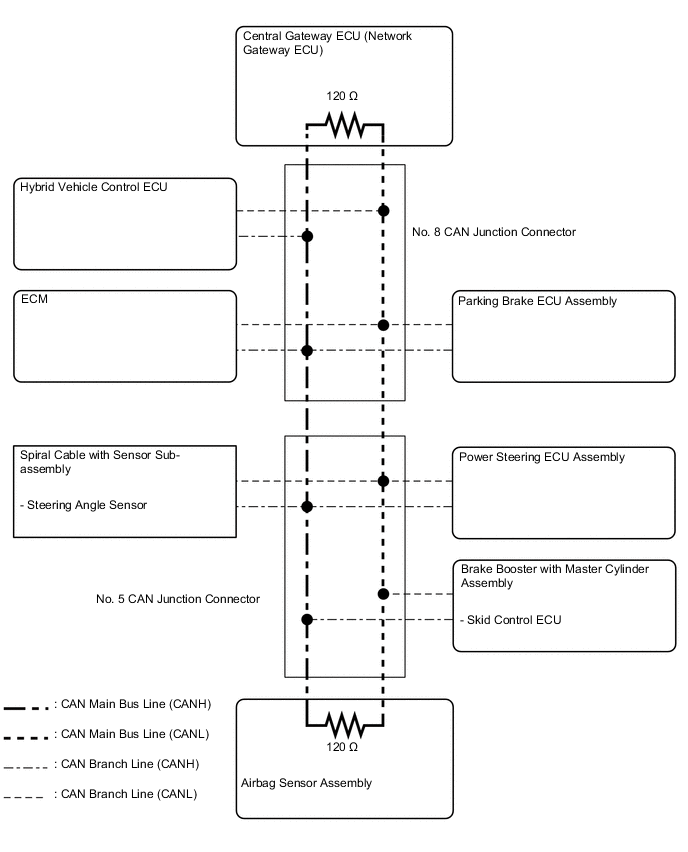

Figure 1. V Bus

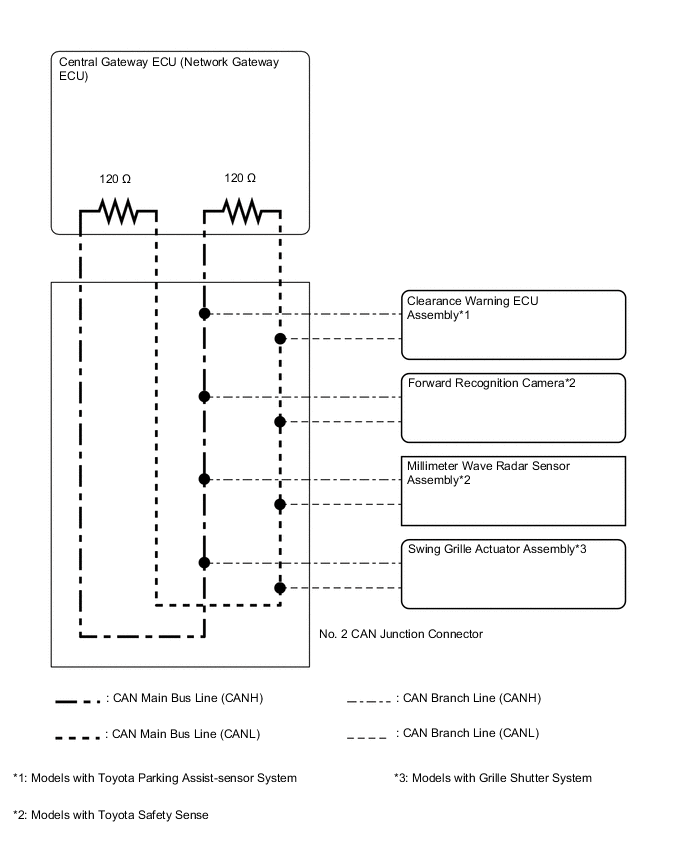

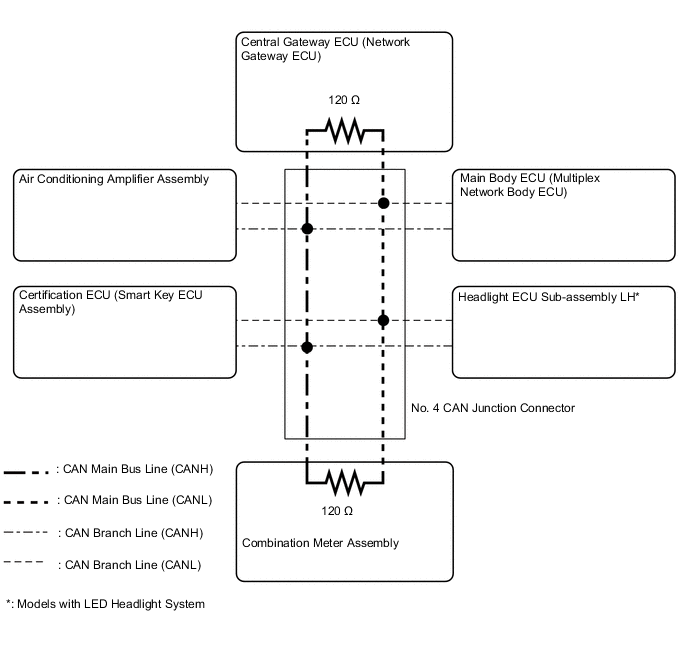

Figure 2. Bus 1 (Models without Blind Spot Monitor System)

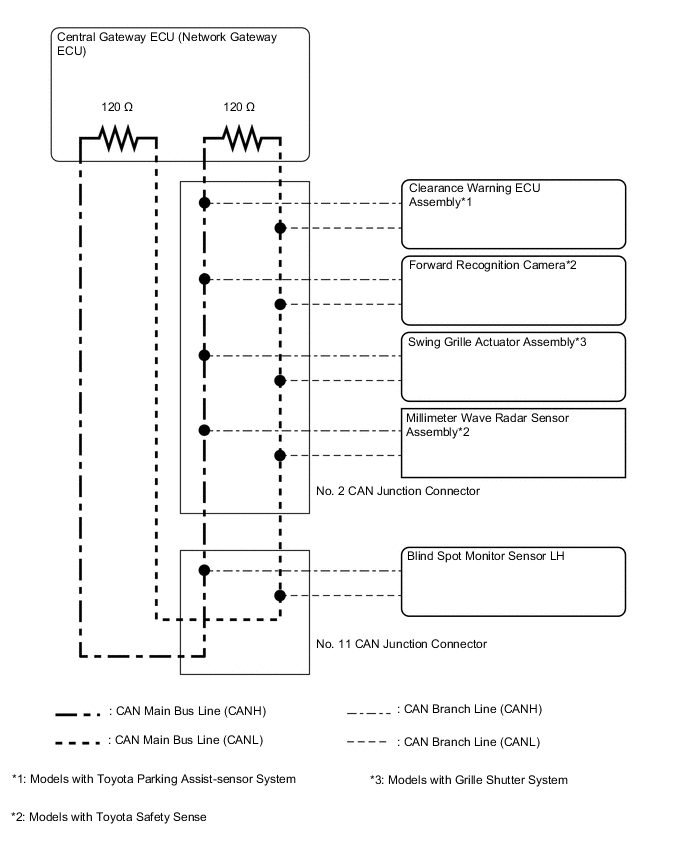

Figure 3. Bus 1 (Models with Blind Spot Monitor System)

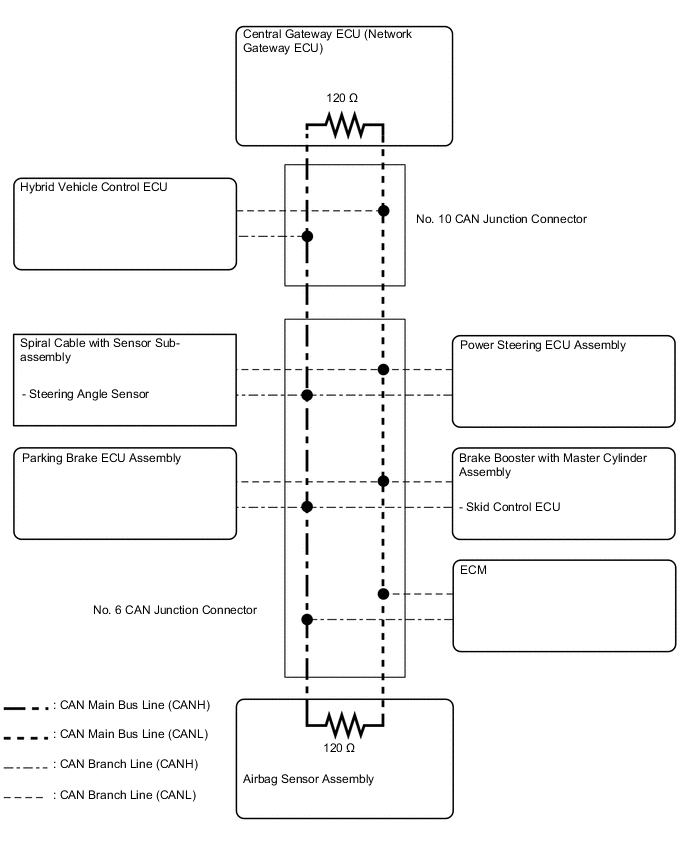

Figure 4. Bus 2 (LHD Models)
Figure 5. Bus 2 (RHD Models)

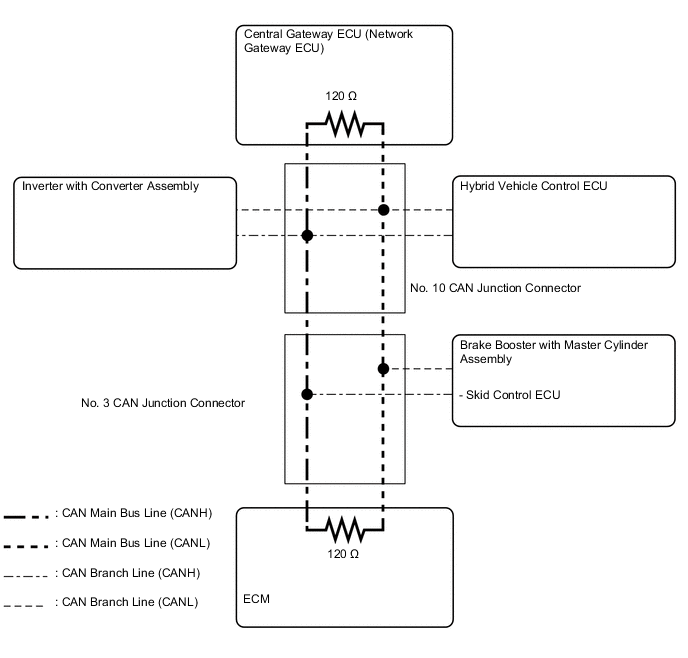

Figure 6. Bus 3
Figure 7. Bus 4 (LHD Models)
Figure 8. Bus 4 (RHD Models)

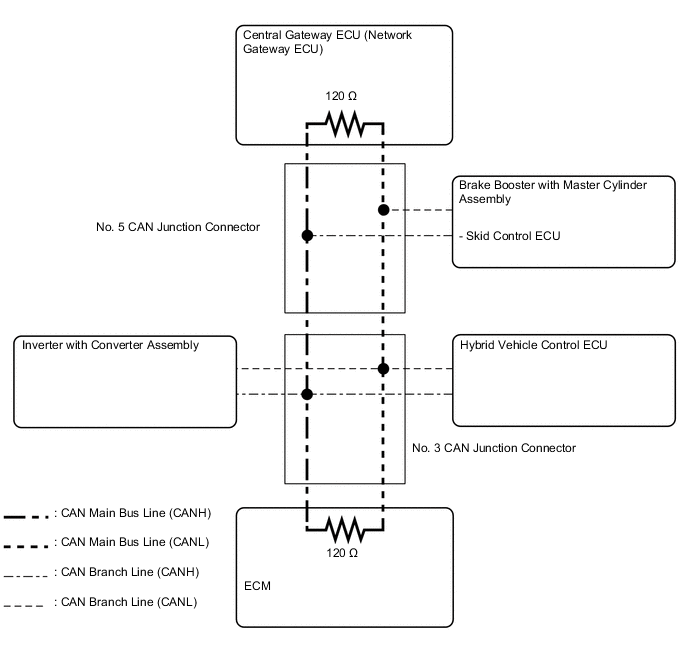

Figure 9. Bus 5

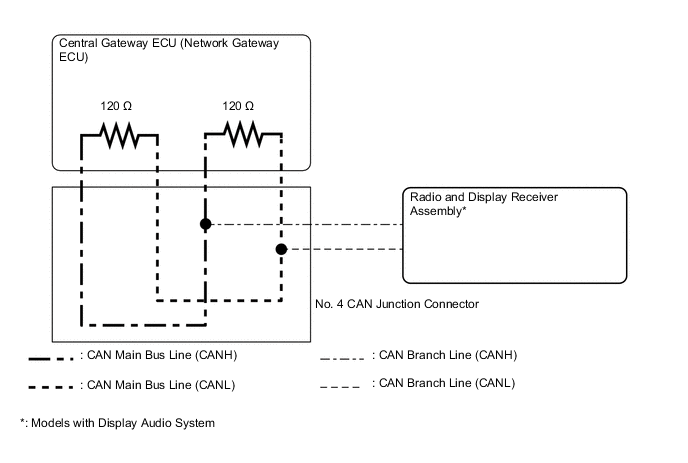

Figure 10. Multi-media Local Bus (Models with Display Audio System)
| *1 | Combination Meter Assembly |
| *2 | Radio and Display Receiver Assembly |
| *3 | CAN Main Bus Line (CANH) |
| *4 | CAN Main Bus Line (CANL) |
Figure 11. Driving Support Local Bus (Models with Toyota Safety Sense)
| *1 | Forward Recognition Camera |
| *2 | Millimeter Wave Radar Sensor Assembly |
| *3 | CAN Main Bus Line (CANH) |
| *4 | CAN Main Bus Line (CANL) |
Figure 12. Blind Spot Monitor Local Bus (Models with Blind Spot Monitor System)
| *1 | Blind Spot Monitor Sensor LH |
| *2 | Blind Spot Monitor Sensor RH |
| *3 | CAN Main Bus Line (CANH) |
| *4 | CAN Main Bus Line (CANL) |
