CAN COMMUNICATION SYSTEM

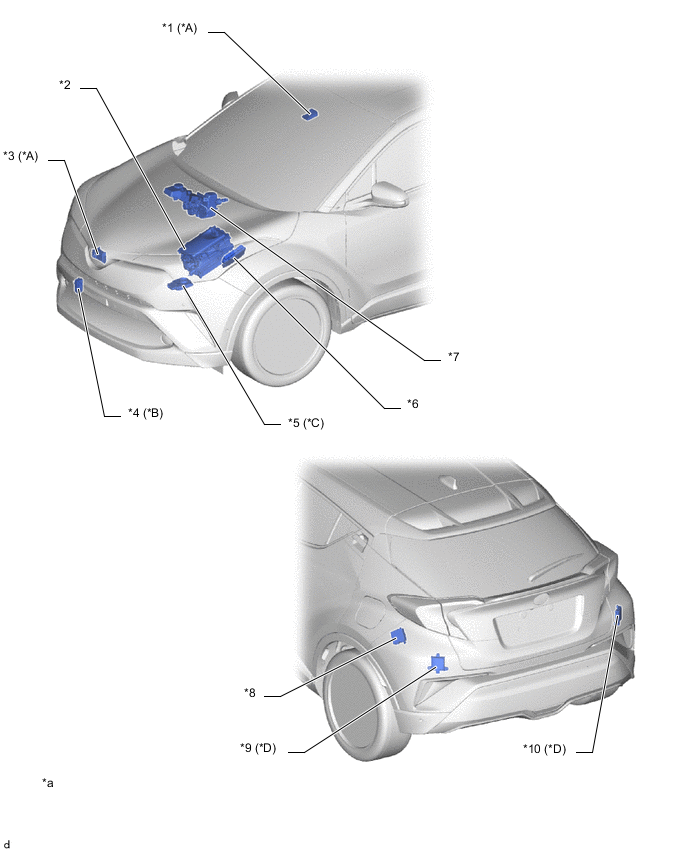

Figure 1. LHD Models
| *A | Models with Toyota Safety Sense | *B | Models with Grille Shutter System |
| *C | Models with LED Headlight System | *D | Models with Blind Spot Monitor System |
| *1 | Forward Recognition Camera | *2 | Inverter with Converter Assembly |
| *3 | Millimeter Wave Radar Sensor Assembly | *4 | Swing Grille Actuator Assembly |
| *5 | Headlight ECU Sub-assembly LH | *6 | ECM |
| *7 | Brake Booster with Master Cylinder Assembly
|
*8 | Parking Brake ECU Assembly |
| *9 | Blind Spot Monitor Sensor LH | *10 | Blind Spot Monitor Sensor RH |
| *a | The illustrations shown are examples only. | - | - |

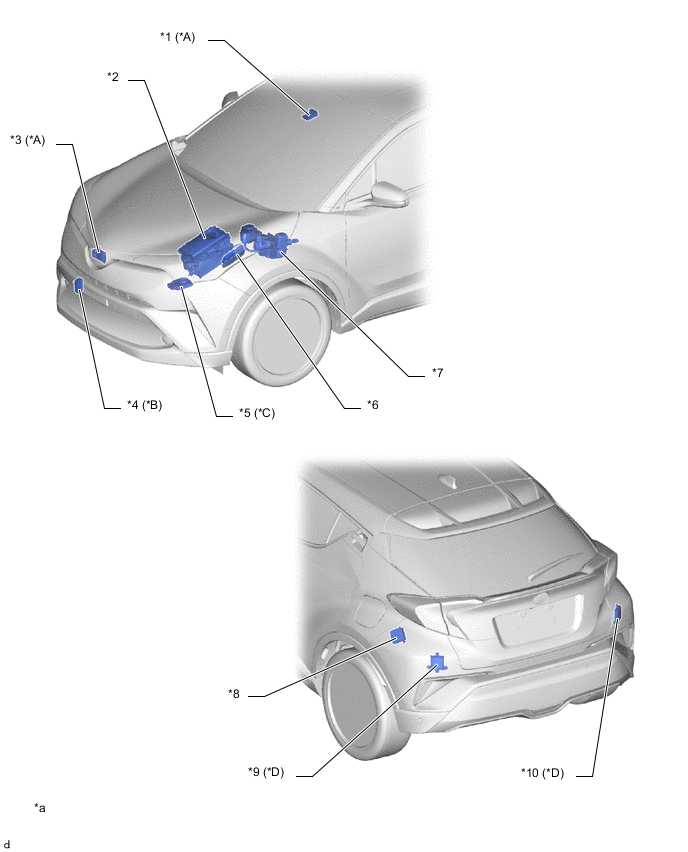

Figure 2. RHD Models
| *A | Models with Toyota Safety Sense | *B | Models with Grille Shutter System |
| *C | Models with LED Headlight System | *D | Models with Blind Spot Monitor System |
| *1 | Forward Recognition Camera | *2 | Inverter with Converter Assembly |
| *3 | Millimeter Wave Radar Sensor Assembly | *4 | Swing Grille Actuator Assembly |
| *5 | Headlight ECU Sub-assembly LH | *6 | ECM |
| *7 | Brake Booster with Master Cylinder Assembly
|
*8 | Parking Brake ECU Assembly |
| *9 | Blind Spot Monitor Sensor LH | *10 | Blind Spot Monitor Sensor RH |
| *a | The illustrations shown are examples only. | - | - |

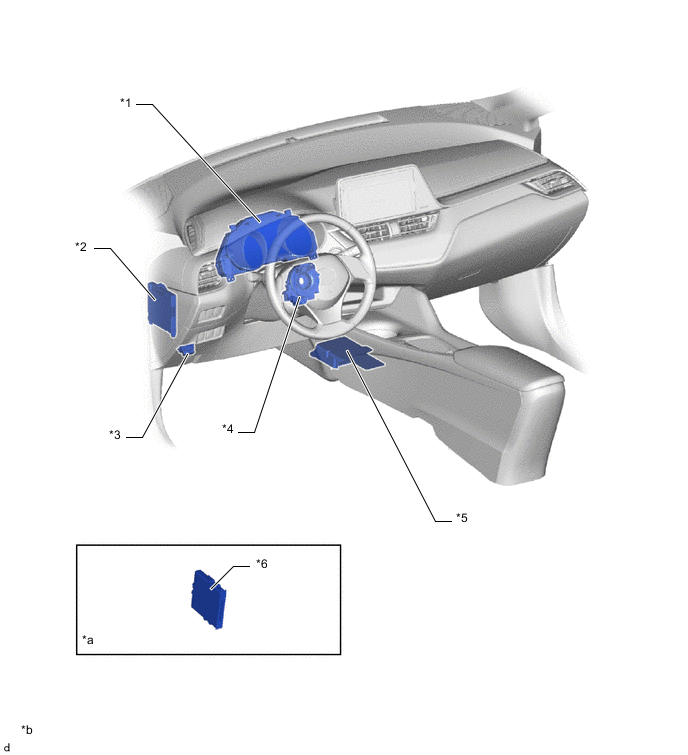

Figure 3. LHD Models
| *1 | Combination Meter Assembly | *2 | Main Body ECU (Multiplex Network Body ECU) |
| *3 | DLC3 | *4 | Spiral Cable with Sensor Sub-assembly
|
| *5 | Airbag Sensor Assembly | *6 | Certification ECU (Smart Key ECU Assembly) |
| *a | Refer to Service Bulletin for the installation position of the parts. | *b | The illustrations shown are examples only. |

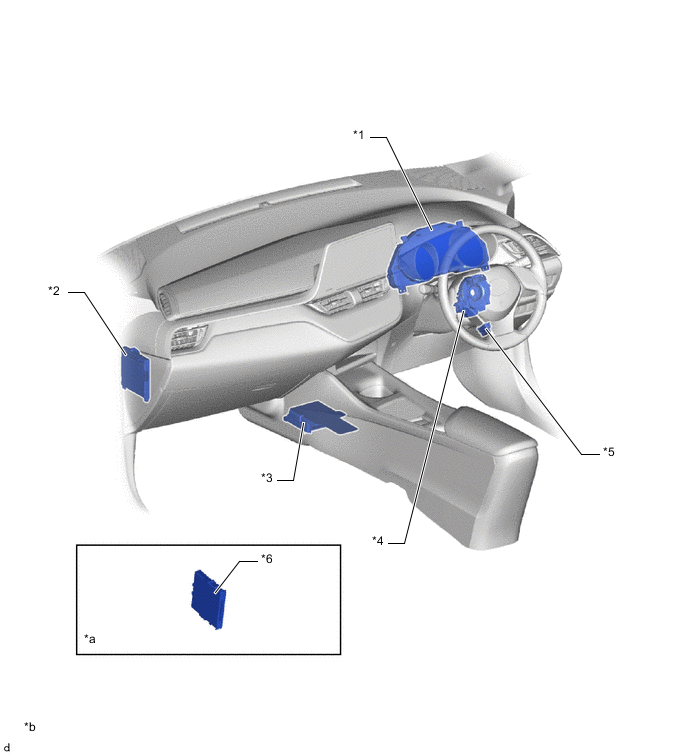

Figure 4. RHD Models
| *1 | Combination Meter Assembly | *2 | Main Body ECU (Multiplex Network Body ECU) |
| *3 | Airbag Sensor Assembly | *4 | Spiral Cable with Sensor Sub-assembly
|
| *5 | DLC3 | *6 | Certification ECU (Smart Key ECU Assembly) |
| *a | Refer to Service Bulletin for the installation position of the parts. | *b | The illustrations shown are examples only. |

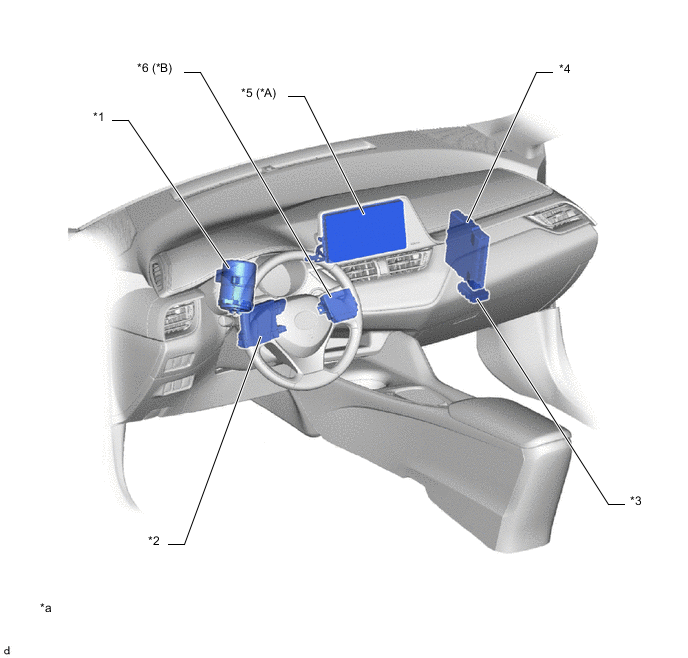

Figure 5. LHD Models
| *A | Models with Display Audio System | *B | Models with Toyota Parking Assist-sensor System |
| *1 | Power Steering ECU Assembly | *2 | Air Conditioning Amplifier Assembly |
| *3 | Central Gateway ECU (Network Gateway ECU) | *4 | Hybrid Vehicle Control ECU |
| *5 | Radio and Display Receiver Assembly | *6 | Clearance Warning ECU Assembly |
| *a | The illustrations shown are examples only. | - | - |

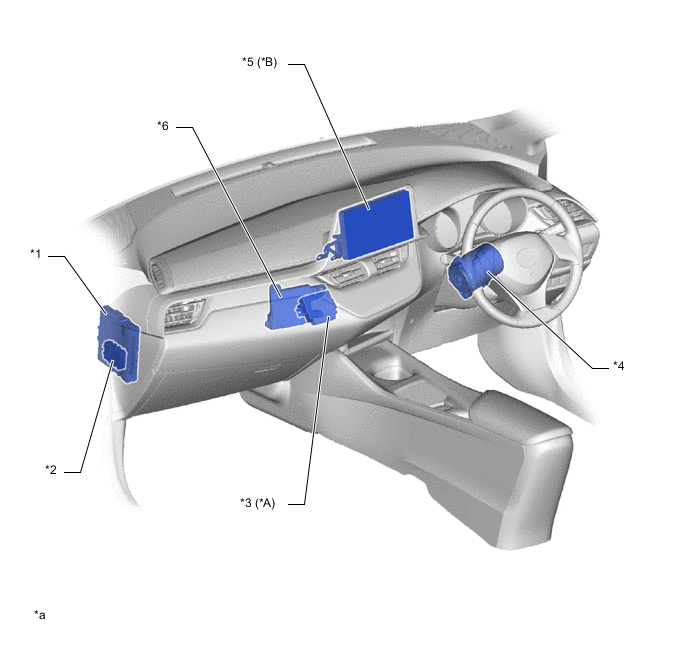

Figure 6. RHD Models
| *A | Models with Toyota Parking Assist-sensor System | *B | Models with Display Audio System |
| *1 | Hybrid Vehicle Control ECU | *2 | Central Gateway ECU (Network Gateway ECU) |
| *3 | Clearance Warning ECU Assembly | *4 | Power Steering ECU Assembly |
| *5 | Radio and Display Receiver Assembly | *6 | Air Conditioning Amplifier Assembly |
| *a | The illustrations shown are examples only. | - | - |
