ELECTRIC PARKING BRAKE SYSTEM


  1. CONSTRUCTION


    1. When the parking brake is locked via switch operation, the indicator light illuminates.

    2. When the electric parking brake switch is pulled up for 5 seconds or more with the parking brake locked, the auto function turns on.

    3. When the electric parking brake switch is pressed for 5 seconds or more with the parking brake released, the auto function turns off.

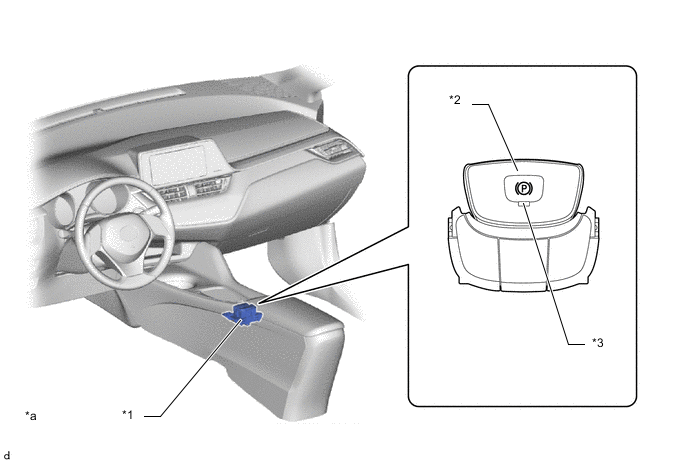

      A001LTQC02
      *1 Electric Parking Brake Switch Assembly *2 Electric Parking Brake Switch
      *3 Indicator Light - -
      *a The illustrations shown are examples only. - -
