ROAD SIGN ASSIST SYSTEM


  1. OPERATION


    1. The combination meter assembly displays recognized signs on the multi-information display based on information of road signs recognized by the forward recognition camera (camera sensor).

    2. The RSA system display mode can be selected by switching the display mode of the multi-information display through operation of the steering pad switch assembly.

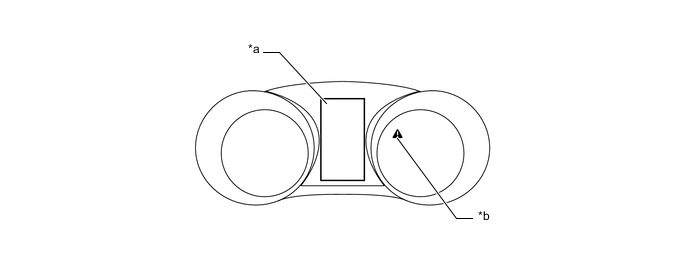

      A001LLEC01
      *a Multi-information Display *b Master Warning Light

    3. When the driving assist system tab is selected for display on the multi-information display, road signs recognized by the forward recognition camera (camera sensor) are displayed on the upper portion of the multi-information display.

    4. A maximum of 3 signs can be displayed simultaneously. When 3 signs are displayed, the signs are displayed in the following order from left to right: speed limit related, speed limit with supplemental sign related or no overtaking related.

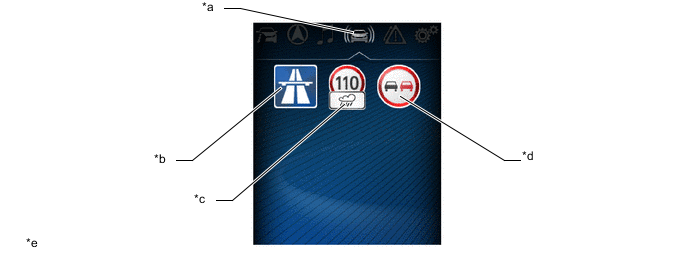

      A001LOIC01
      *a Driving Assist System Tab *b highway Sign Related
      *c Speed Limit with Supplemental Sign Related *d No Overtaking Related
      *e The illustration shown is an example only. The illustration may differ from the actual vehicle screen. - -

    5. When an information tab other than the driving assist system tab is selected for display on the multi-information display, road signs recognized by the forward recognition camera (camera sensor) are displayed as pop-ups above the multi-information display. Furthermore, the pop-up display is only for speed limit signs. It is not displayed for no overtaking signs and speed limit with supplemental signs.

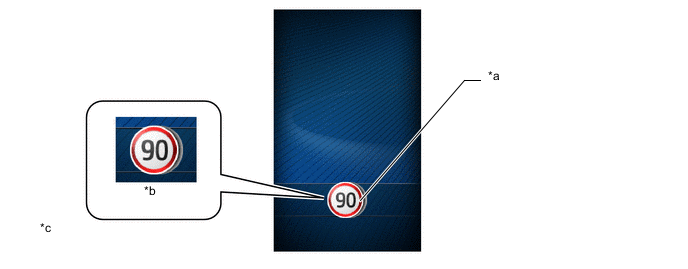

      A001M3CC01
      *a Speed Limit Related *b Multiple Road Signs Recognized
      *c The illustration shown is an example only. The illustration may differ from the actual vehicle screen. - -

    6. When there is a malfunction in the RSA system or the system is temporarily unusable, a warning message is displayed on the multi-information display, the master warning light illuminates and the buzzer sounds.

      Condition Multi-information Display Indication Master Warning Light Buzzer
      System malfunction Check RSA System Illuminates Sounds
      Forward recognition camera (camera sensor) temperature outside of operational range. Front Camera Unavailable - -
      When there is poor visibility for the forward recognition camera (camera sensor). Front Camera Vision Blocked. Clean and Demist Windshield. - -
