ROAD SIGN ASSIST SYSTEM

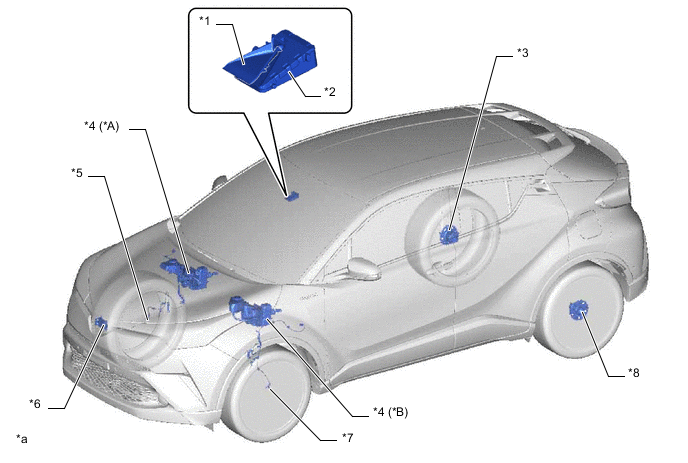

| *A | RHD Models | *B | LHD Models |
| *1 | Camera Heater (Forward Recognition Hood) | *2 | Forward Recognition Camera (Camera Sensor) |
| *3 | Rear Speed Sensor RH (Rear Axle Hub and Bearing Assembly) | *4 | Brake Booster with Master Cylinder Assembly
|
| *5 | Front Speed Sensor RH | *6 | Millimeter Wave Radar Sensor Assembly |
| *7 | Front Speed Sensor LH | *8 | Rear Speed Sensor LH (Rear Axle Hub and Bearing Assembly) |
| *a | The illustrations shown are examples only. | - | - |
Figure 1. LHD Models
| *1 | Headlight Dimmer Switch Assembly | *2 | Spiral Cable with Sensor Sub-assembly
|
| *3 | Steering Pad Switch Assembly | *4 | Combination Meter Assembly |
| *5 | Main Body ECU (Multiplex Network Body ECU) | *6 | Air Conditioning Amplifier Assembly |
| *7 | Airbag Sensor Assembly
|
*8 | Network Gateway ECU |
| *9 | Hybrid Vehicle Control ECU | - | - |
| *a | Steering Pad Switch | *b | The illustration shown is an example only. |

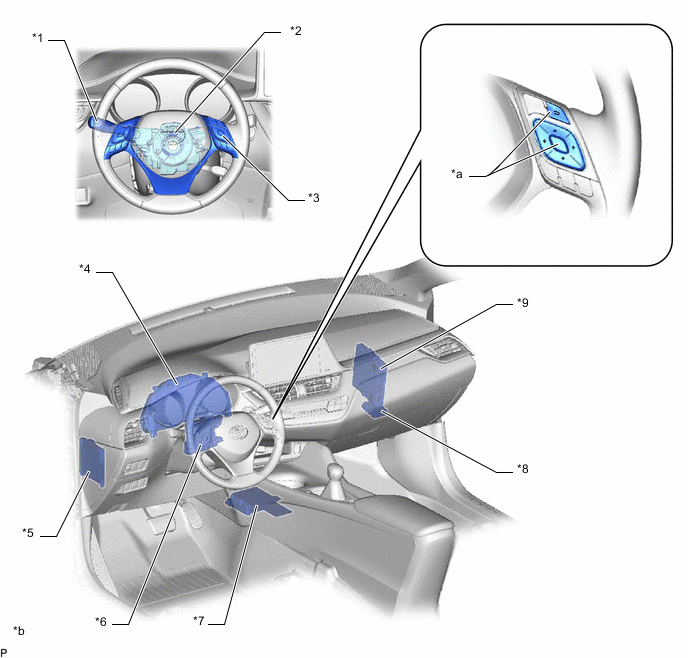

Figure 2. RHD Models
| *1 | Headlight Dimmer Switch Assembly | *2 | Spiral Cable with Sensor Sub-assembly
|
| *3 | Steering Pad Switch Assembly | *4 | Hybrid Vehicle Control ECU |
| *5 | Air Conditioning Amplifier Assembly | *6 | Combination Meter Assembly |
| *7 | Network Gateway ECU | *8 | Main Body ECU (Multiplex Network Body ECU) |
| *9 | Airbag Sensor Assembly
|
- | - |
| *a | Steering Pad Switch | *b | The illustration shown is an example only. |
