LANE DEPARTURE ALERT SYSTEM(w/ Steering Control)


  1. OPERATION


    1. The combination meter assembly illuminates the indicator lights or displays an indicator on the multi-information display, and sounds a buzzer (which is built into the combination meter assembly) in accordance with the respective condition.

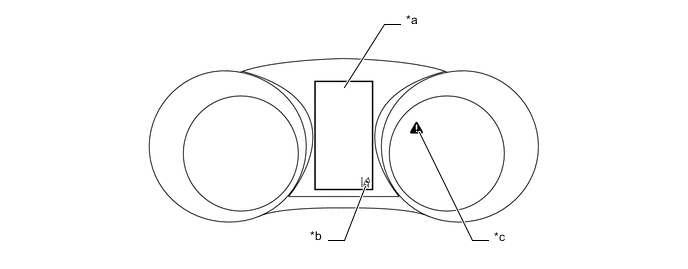

      A001LJHC01
      *a Multi-information Display *b LDA Indicator Light
      *c Master Warning Light - -

    2. Examples are shown below for the illumination or display of each indicator, warning light or multi-information display.

      LDA System (Steering Assist Off or On) [Approximately 50 km/h (32 mph) or More]
      Condition Multi-information Display Indication* LDA indicator Light Buzzer
      LDA Switch Turned On (Steering Assist Off)

      LDA ON.

      Steering Assist Inactive.

      		 Illuminates (White) -

      • Steering Assist Unavailable

      • Lane Markers Detected

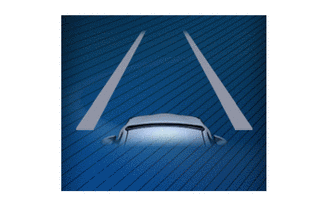

      		 A001LNT Illuminates (White) -

      • Steering Assist Unavailable

      • One Lane Marker Detected

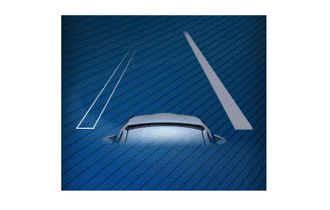

      		 A001LUS Illuminates (White) -

      • Steering Assist Unavailable

      • Lane Markers Detected

      • Lane Departure Alert Operating

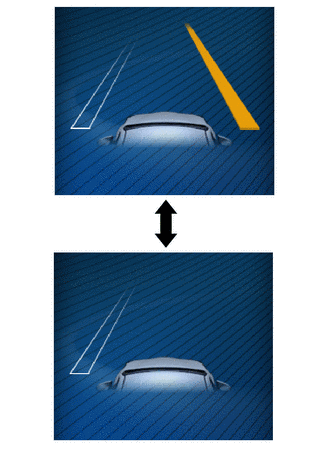

      		 A001LP3 Blinks (Amber) Sounds
      The lane marker icons blink.
      LDA Switch Turned On (Steering Assist On)

      LDA ON.

      Steering Assist Active.

      		 Illuminates (White) -

      • Steering Assist Available

      • Lane Markers Detected

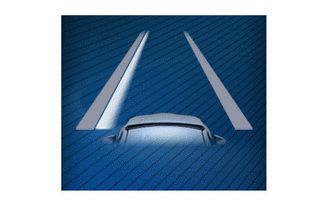

      		 A001M0T Illuminates (Green) -

      • Steering Assist Available

      • One Lane Marker Detected

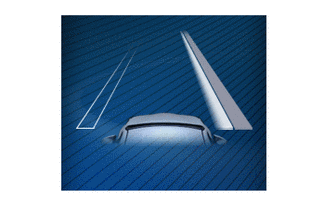

      		 A001LTA Illuminates (Green) -

      • Steering Assist Available

      • Lane Markers Detected

      • Lane Departure Alert Operating

      • Steering Assist Operating

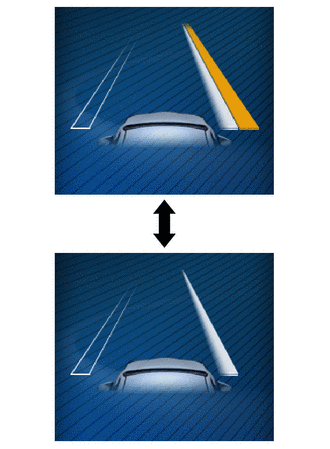

      		 A001M2B Blinks (Amber) Sounds
      The lane marker icons blink.

      *: These illustrations are examples.

    3. Depending on driving conditions, in regards to the vehicle sway warning function, the following multi-information display indications are displayed with priority.

      Vehicle Sway Warning Function
      Vehicle Sway Warning Condition Multi-information Display Indication*
      Off - No display
      On

      • Vehicle sway warning operating

      • Drive information display indication

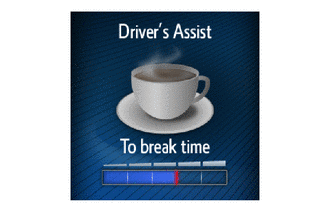

      		 A001LHQ
      On

      • Driving outside the system operation vehicle speed

      • System malfunction or temporarily suspended

      • Drive information display indication

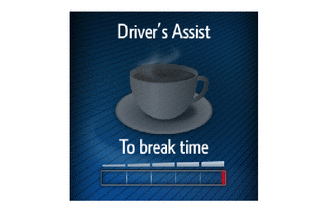

      		 A001LHZ
      On

      • Vehicle sway warning operating

      • Detects consecutive traffic lane deviations due to disorientation

      		 Please Take A Rest.
      Performs priority display and sounds the buzzer.
      On

      • Vehicle sway warning operating

      • Detects that slow drifting is apparent due to state where attentiveness is low

      		 Would You Like To Take A Rest?
      Performs priority display and sounds the buzzer.

    4. Warning content displayed in the combination meter assembly is as follows due to system malfunctions or interruptions.

      Warning Messages
      Condition Multi-information Display Indication LDA indicator Light Master Warning Light Buzzer
      System malfunction. Lane Departure Alert Malfunction. Visit Your Dealer. Illuminates (Amber) Illuminates Sounds
      Forward recognition camera (camera sensor) temperature outside of operational range. Front Camera Unavailable. Illuminates (Amber) Illuminates Sounds
      Vehicle Speed is Approximately 50 km/h (32 mph) or Less. LDA Unavailable Below Approx. 50 km/h. Illuminates - -
      Vehicle speed exceeds maximum speed for which LDA is available. LDA Unavailable at Current Speed. Illuminates - -
      When LDA switch is on (steering assist available), No hands are detected on steering wheel. LDA. Hold Steering Wheel.* Illuminates - -
      LDA Steering Assist Unavailable, Hold Steering Wheel.* Illuminates Illuminates -
      When temporarily unavailable due to sensors other than the forward recognition camera (camera sensor). LDA Unavailable. Illuminates Illuminates Sounds
      When there is poor visibility for the forward recognition camera (camera sensor). Front Camera Vision Blocked. Clean and Demist Windshield. Illuminates Illuminates Sounds

      *: When display changes
