LANE DEPARTURE ALERT SYSTEM(w/ Steering Control)

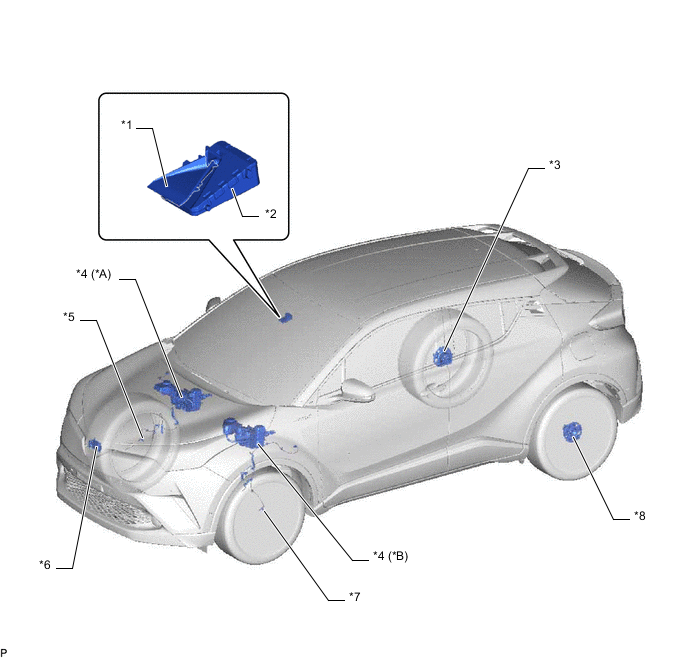

| *A | RHD Models | *B | LHD Models |
| *1 | Camera Heater (Forward Recognition Hood) | *2 | Forward Recognition Camera (Camera Sensor) |
| *3 | Rear Speed Sensor RH (Rear Axle Hub and Bearing Assembly RH) | *4 | Brake Booster with Master Cylinder Assembly
|
| *5 | Front Speed Sensor RH | *6 | Millimeter Wave Radar Sensor Assembly |
| *7 | Front Speed Sensor LH | *8 | Rear Speed Sensor LH (Rear Axle Hub and Bearing Assembly LH) |
Figure 1. LHD Models
| *1 | Spiral Cable with Sensor Sub-assembly
|
*2 | Steering Pad Switch Assembly |
| *3 | Power Steering ECU Assembly | *4 | Combination Meter Assembly |
| *5 | Hybrid Vehicle Control ECU | *6 | Network Gateway ECU |
| *7 | Main Body ECU (Multiplex Network Body ECU) | *8 | Headlight Dimmer Switch Assembly |
| *9 | Airbag Sensor Assembly
|
- | - |
| *a | Steering Pad Switch | *b | LDA Switch |
| *c | The illustration shown is an example only. | - | - |
Figure 2. RHD Models
| *1 | Spiral Cable with Sensor Sub-assembly
|
*2 | Steering Pad Switch Assembly |
| *3 | Hybrid Vehicle Control ECU | *4 | Power Steering ECU Assembly |
| *5 | Combination Meter Assembly | *6 | Headlight Dimmer Switch Assembly |
| *7 | Network Gateway ECU | *8 | Main Body ECU (Multiplex Network Body ECU) |
| *9 | Airbag Sensor Assembly
|
- | - |
| *a | Steering Pad Switch | *b | LDA Switch |
| *c | The illustration shown is an example only. | - | - |
