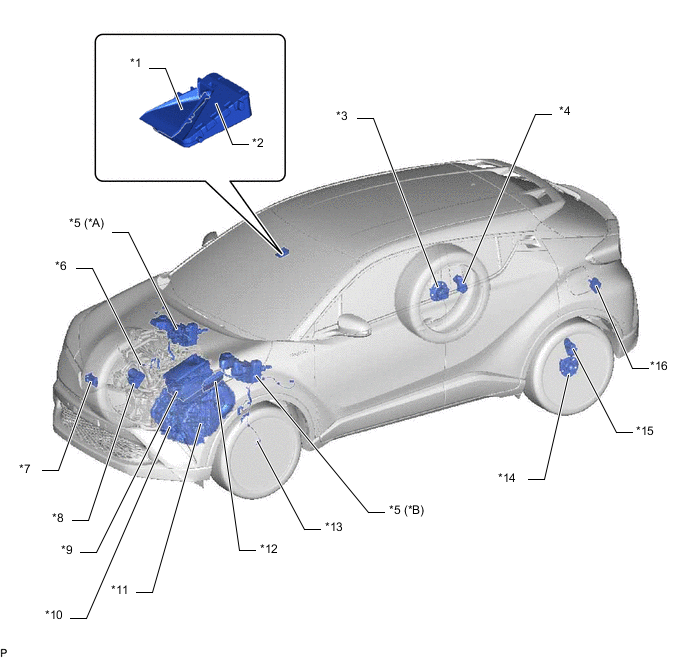

DYNAMIC RADAR CRUISE CONTROL SYSTEM
| *A | RHD Models | *B | LHD Models |
| *1 | Camera Heater (Forward Recognition Hood) | *2 | Forward Recognition Camera (Camera Sensor) |
| *3 | Rear Speed Sensor RH (Rear Axle Hub and Bearing Assembly RH) | *4 | Parking Brake Actuator Assembly RH |
| *5 | Brake Booster with Master Cylinder Assembly
|
*6 | Front Speed Sensor RH |
| *7 | Millimeter Wave Radar Sensor Assembly | *8 | Throttle Body with Motor Assembly
|
| *9 | Inverter with Converter Assembly
|
*10 | Shift Lever Position Sensor |
| *11 | Hybrid Vehicle Transaxle Assembly | *12 | ECM |
| *13 | Front Speed Sensor LH | *14 | Rear Speed Sensor LH (Rear Axle Hub and Bearing Assembly LH) |
| *15 | Parking Brake Actuator Assembly LH | *16 | Parking Brake ECU Assembly |

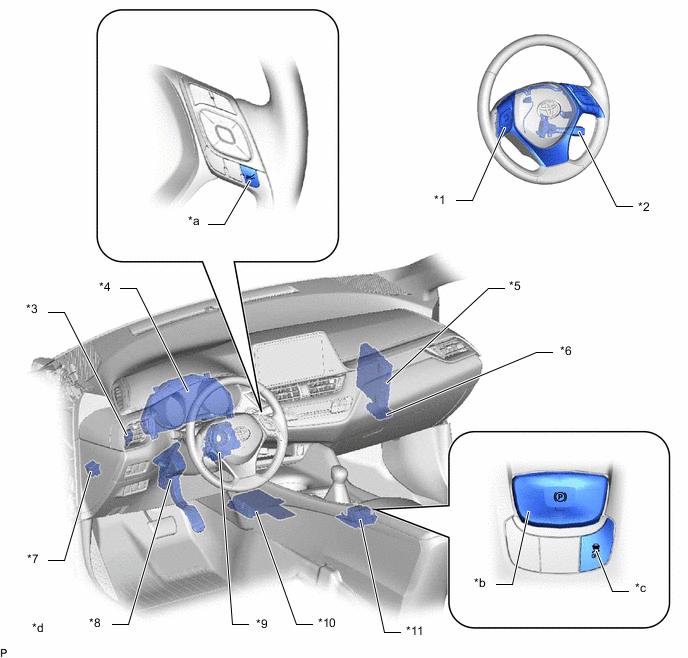

Figure 1. LHD Models
| *1 | Steering Pad Switch Assembly | *2 | Cruise Control Main Switch |
| *3 | Stop Light Switch Assembly | *4 | Combination Meter Assembly |
| *5 | Hybrid Vehicle Control ECU | *6 | Network Gateway ECU |
| *7 | Pre-collision City Buzzer | *8 | Accelerator Pedal Sensor Assembly |
| *9 | Spiral Cable with Sensor Sub-assembly
|
*10 | Airbag Sensor Assembly
|
| *11 | Electric Parking Brake Switch Assembly | - | - |
| *a | Vehicle-to-vehicle Distance Control Switch | *b | Electric Parking Brake Switch |
| *c | VSC OFF (TRC OFF) Switch | *d | The illustration shown is an example only. |

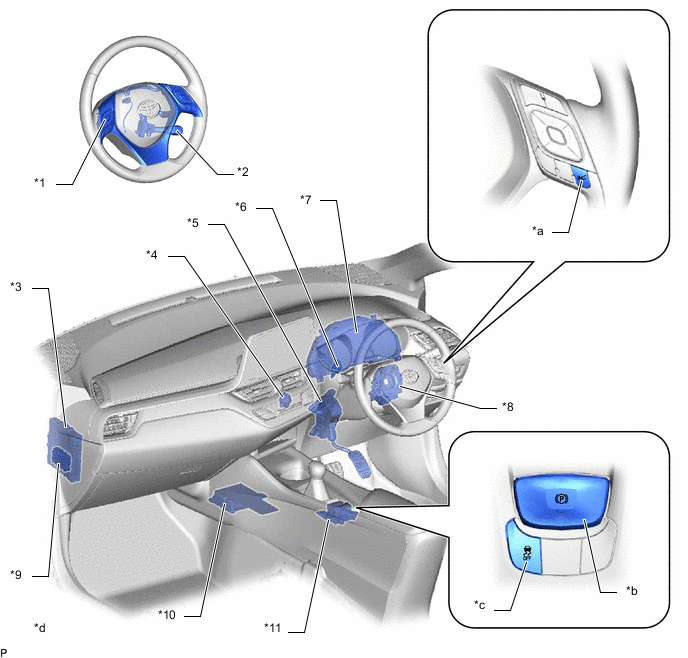

Figure 2. RHD Models
| *1 | Steering Pad Switch Assembly | *2 | Cruise Control Main Switch |
| *3 | Hybrid Vehicle Control ECU | *4 | Pre-collision City Buzzer |
| *5 | Accelerator Pedal Sensor Assembly | *6 | Stop Light Switch Assembly |
| *7 | Combination Meter Assembly | *8 | Spiral Cable with Sensor Sub-assembly
|
| *9 | Network Gateway ECU | *10 | Airbag Sensor Assembly
|
| *11 | Electric Parking Brake Switch Assembly | - | - |
| *a | Vehicle-to-vehicle Distance Control Switch | *b | Electric Parking Brake Switch |
| *c | VSC OFF (TRC OFF) Switch | *d | The illustration shown is an example only. |
