SPEED LIMITER SYSTEM
| *A | RHD Models | *B | LHD Models |

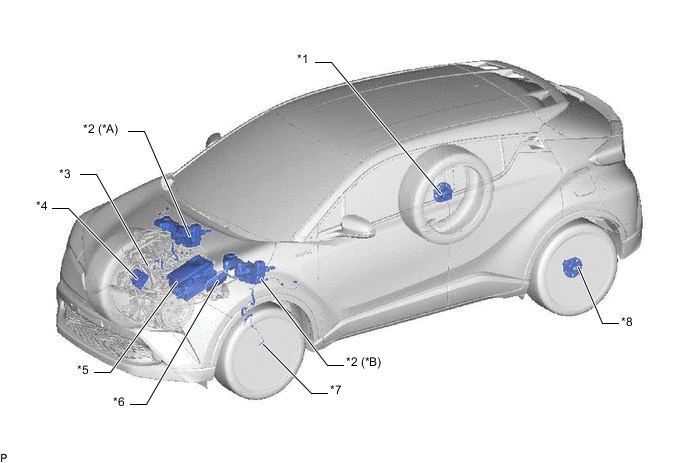

| *1 | Rear Speed Sensor RH (Rear Axle Hub and Bearing Assembly RH) | *2 | Brake Booster with Master Cylinder Assembly
|
| *3 | Front Speed Sensor RH | *4 | Throttle Body with Motor Assembly
|
| *5 | Inverter with Converter Assembly
|
*6 | ECM |
| *7 | Front Speed Sensor LH | *8 | Rear Speed Sensor LH (Rear Axle Hub and Bearing Assembly LH) |
Figure 1. LHD Models

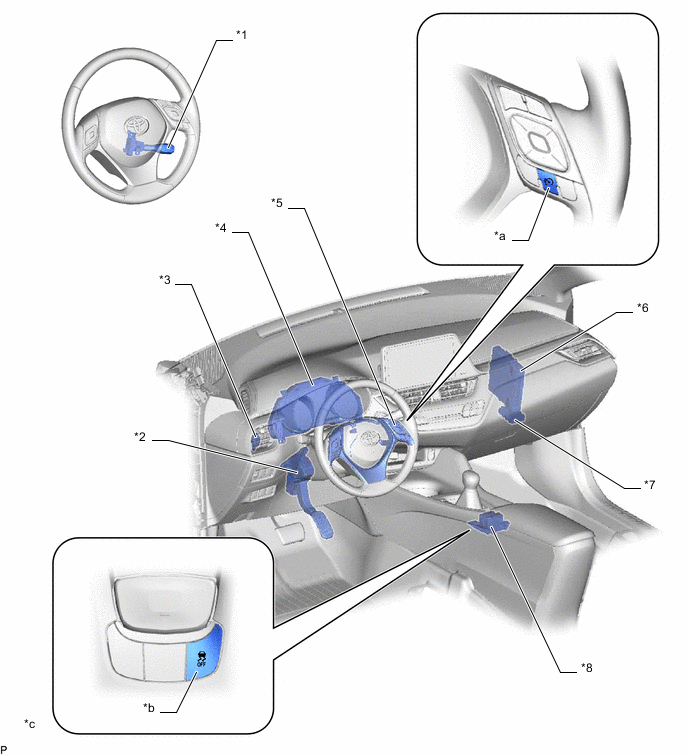

| *1 | Cruise Control Main Switch | *2 | Accelerator Pedal Sensor Assembly |
| *3 | Stop Light Switch Assembly | *4 | Combination Meter Assembly |
| *5 | Steering Pad Switch Assembly | *6 | Hybrid Vehicle Control ECU |
| *7 | Network Gateway ECU | *8 | Electric Parking Brake Switch Assembly |
| *a | Speed Limiter Switch | *b | VSC OFF (TRC OFF) Switch |
| *c | The illustration shown is an example only. | - | - |
Figure 2. RHD Models

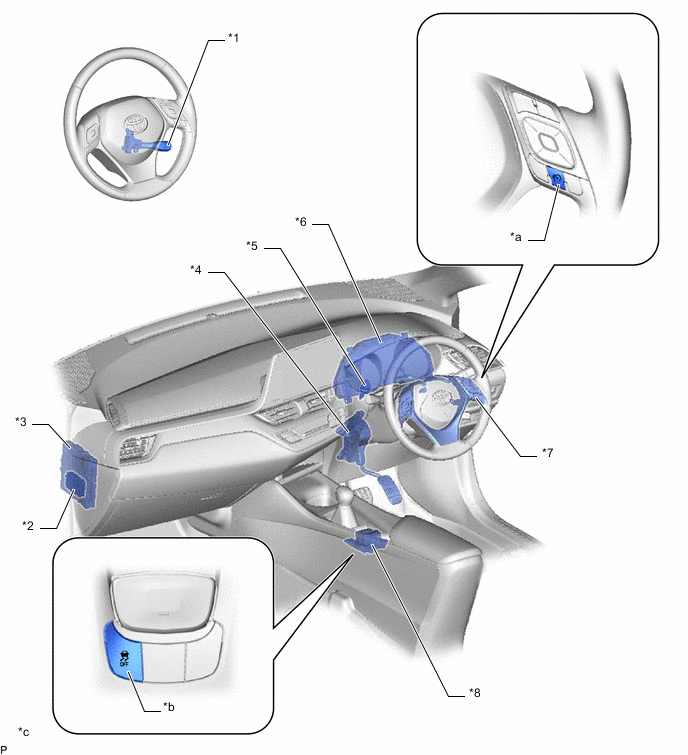

| *1 | Cruise Control Main Switch | *2 | Network Gateway ECU |
| *3 | Hybrid Vehicle Control ECU | *4 | Accelerator Pedal Sensor Assembly |
| *5 | Stop Light Switch Assembly | *6 | Combination Meter Assembly |
| *7 | Steering Pad Switch Assembly | *8 | Electric Parking Brake Switch Assembly |
| *a | Speed Limiter Switch | *b | VSC OFF (TRC OFF) Switch |
| *c | The illustration shown is an example only. | - | - |
