CRUISE CONTROL SYSTEM

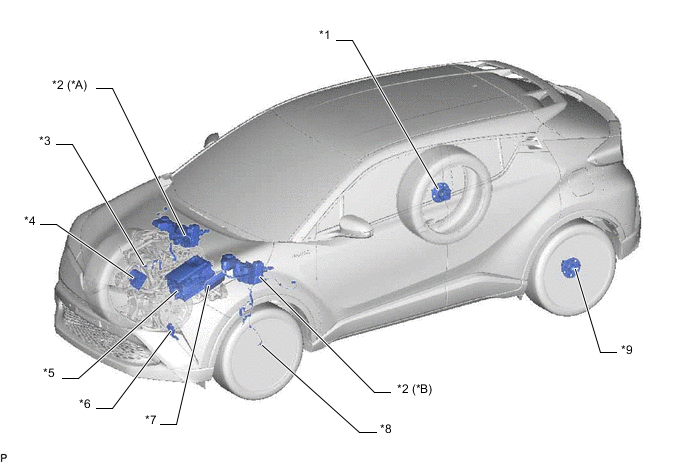

| *A | RHD Models | *B | LHD Models |
| *1 | Rear Speed Sensor RH (Rear Axle Hub and Bearing Assembly RH) | *2 | Brake Booster with Master Cylinder Assembly
|
| *3 | Front Speed Sensor RH | *4 | Throttle Body with Motor Assembly
|
| *5 | Inverter with Converter Assembly
|
*6 | Shift Lever Position Sensor |
| *7 | ECM | *8 | Front Speed Sensor LH |
| *9 | Rear Speed Sensor LH (Rear Axle Hub and Bearing Assembly LH) | - | - |

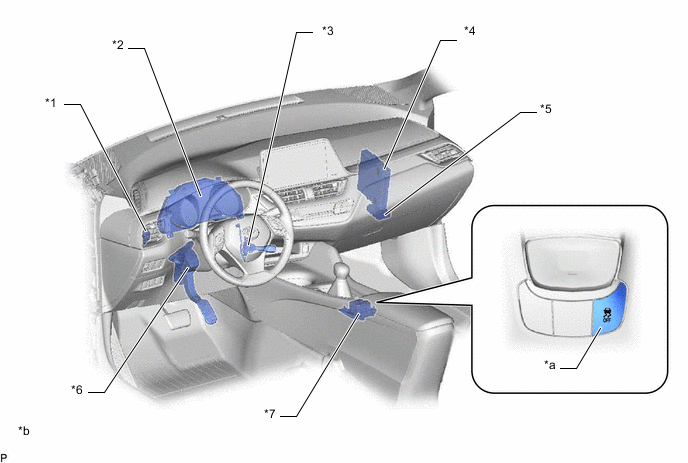

Figure 1. LHD Models
| *1 | Stop Light Switch Assembly | *2 | Combination Meter Assembly |
| *3 | Cruise Control Main Switch | *4 | Hybrid Vehicle Control ECU |
| *5 | Network Gateway ECU | *6 | Accelerator Pedal Sensor Assembly |
| *7 | Electric Parking Brake Switch Assembly | - | - |
| *a | VSC OFF (TRC OFF) Switch | *b | The illustration shown is an example only. |

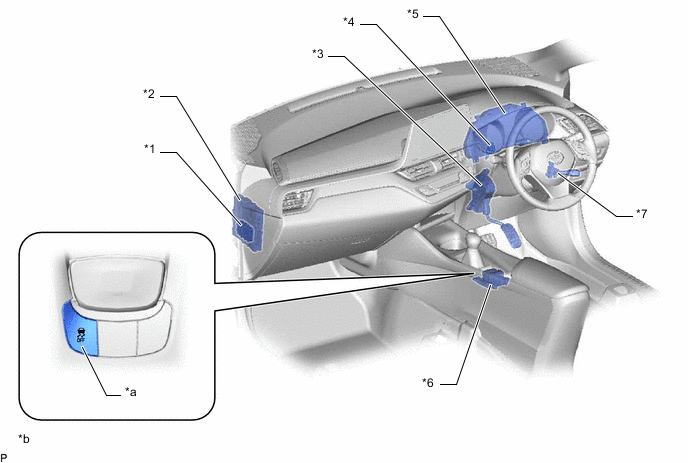

Figure 2. RHD Models
| *1 | Network Gateway ECU | *2 | Hybrid Vehicle Control ECU |
| *3 | Accelerator Pedal Sensor Assembly | *4 | Stop Light Switch Assembly |
| *5 | Combination Meter Assembly | *6 | Electric Parking Brake Switch Assembly |
| *7 | Cruise Control Main Switch | - | - |
| *a | VSC OFF (TRC OFF) Switch | *b | The illustration shown is an example only. |
