HYBRID CONTROL SYSTEM

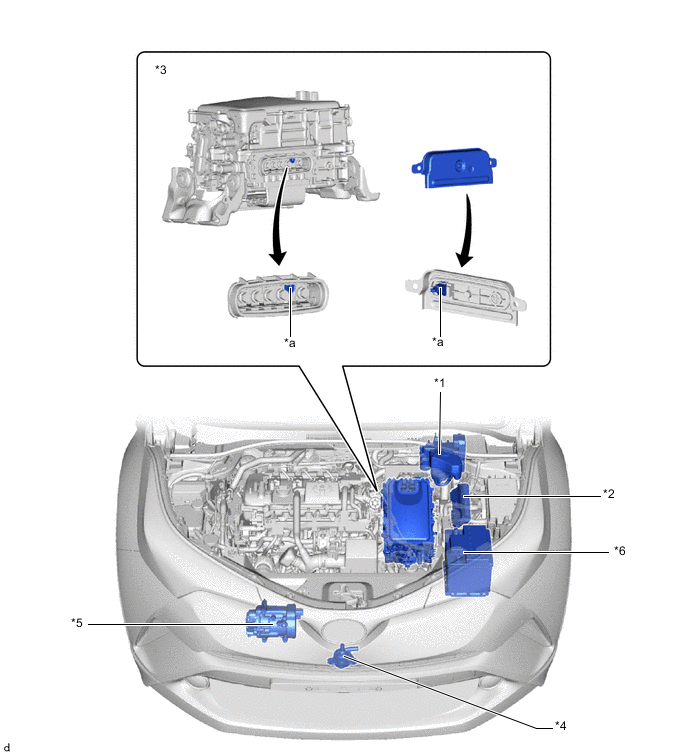

Figure 1. LHD Models

A001LMWC01
*1

Brake Booster with Master Cylinder Assembly


  • Skid Control ECU

 *2 ECM
*3

Inverter with Converter Assembly


  • MG ECU

  • Booster Converter

  • DC-DC Converter

  • Inverter

 *4 Inverter Water Pump Assembly
*5 Compressor with Motor Assembly *6 Auxiliary Battery
*a Interlock Switch (For Inverter Cover) - -

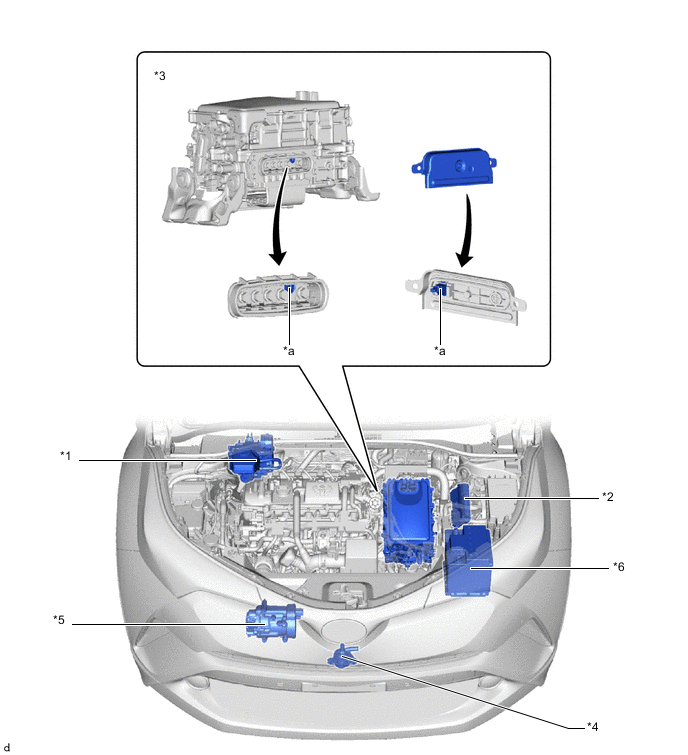

Figure 2. RHD Models

A001LKUC01
*1

Brake Booster with Master Cylinder Assembly


  • Skid Control ECU

 *2 ECM
*3

Inverter with Converter Assembly


  • MG ECU

  • Booster Converter

  • DC-DC Converter

  • Inverter

 *4 Inverter Water Pump Assembly
*5 Compressor with Motor Assembly *6 Auxiliary Battery
*a Interlock Switch (For Inverter Cover) - -

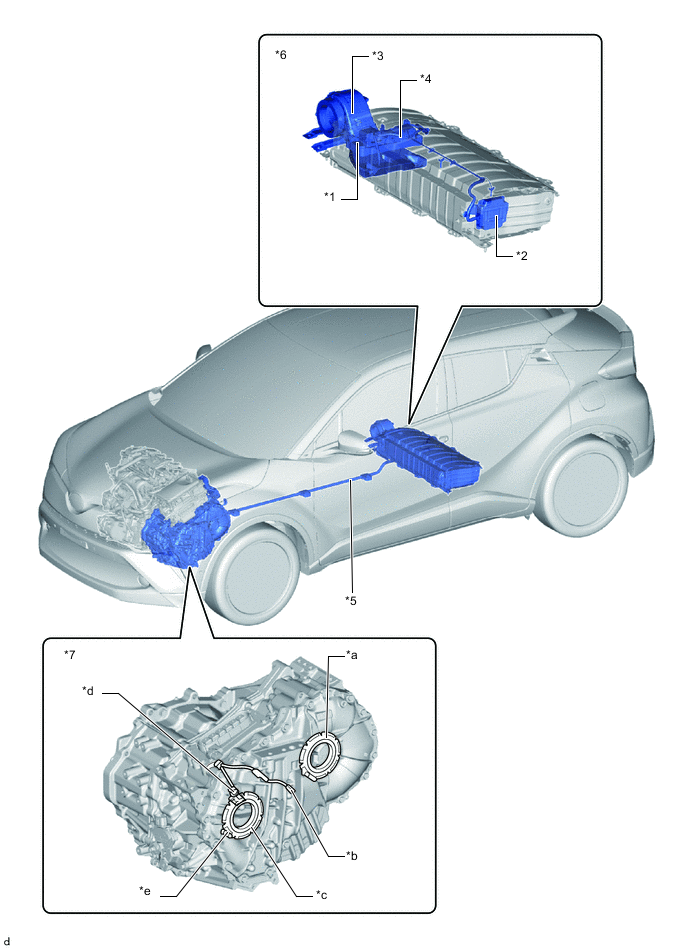

A001LPKC01
*1 Service Plug Grip *2 Battery Smart Unit (Battery Voltage Sensor)
*3 Battery Cooling Blower Assembly *4

Hybrid Battery Junction Block Assembly


  • Battery Current Sensor

  • SMRB

  • SMRP

  • SMRG

  • Precharge Resistor
*5 Power Cable (HV Floor Under Wire) *6 HV Battery Assembly
*7

Hybrid Vehicle Transaxle Assembly


  • Motor Generator NO. 1 (MG1)

  • Motor Generator NO. 2 (MG2)

 - -
*a Motor Resolver (For MG2) *b Motor Temperature Sensor (For MG2)
*c Generator Resolver (For MG1) *d Generator Temperature Sensor (For MG1)
*e ATF Temperature Sensor - -

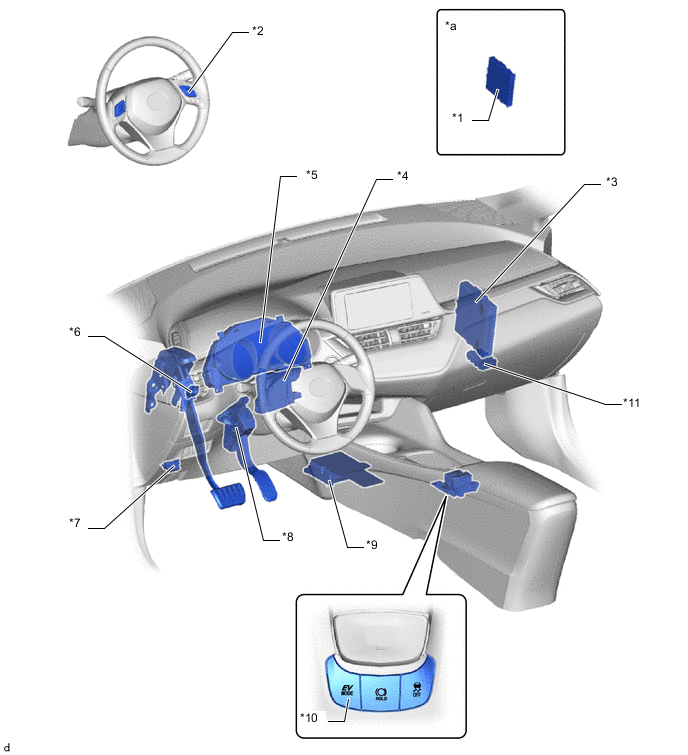

Figure 3. LHD Models

A001LZUC01
*1 Certification ECU (Smart Key ECU Assembly) *2 Steering Pad Switch Assembly
*3 Hybrid Vehicle Control ECU *4 Air Conditioning Amplifier Assembly
*5

Combination Meter Assembly


  • Multi-information Display

 *6 Stop Light Switch Assembly
*7 DLC3 *8 Accelerator Pedal Sensor Assembly
*9 Airbag Sensor Assembly *10 EV Drive Mode Switch
*11 Network Gateway ECU - -
*a Refer to Service Bulletin for the installation position of the part. - -

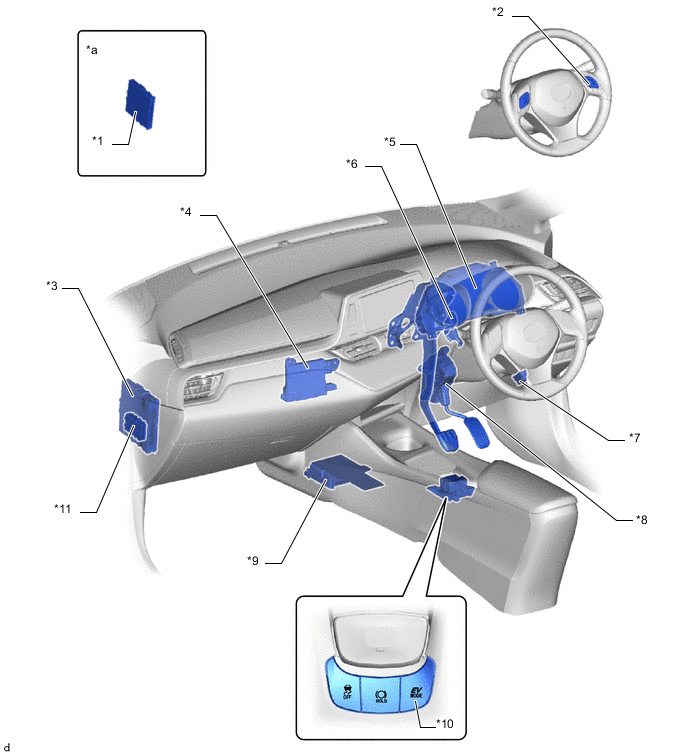

Figure 4. RHD Models

A001LQNC01
*1 Certification ECU (Smart Key ECU Assembly) *2 Steering Pad Switch Assembly
*3 Hybrid Vehicle Control ECU *4 Air Conditioning Amplifier Assembly
*5

Combination Meter Assembly


  • Multi-information Display

 *6 Stop Light Switch Assembly
*7 DLC3 *8 Accelerator Pedal Sensor Assembly
*9 Airbag Sensor Assembly *10 EV Drive Mode Switch
*11 Network Gateway ECU - -
*a Refer to Service Bulletin for the installation position of the part. - -
