BRAKE CONTROL SYSTEM

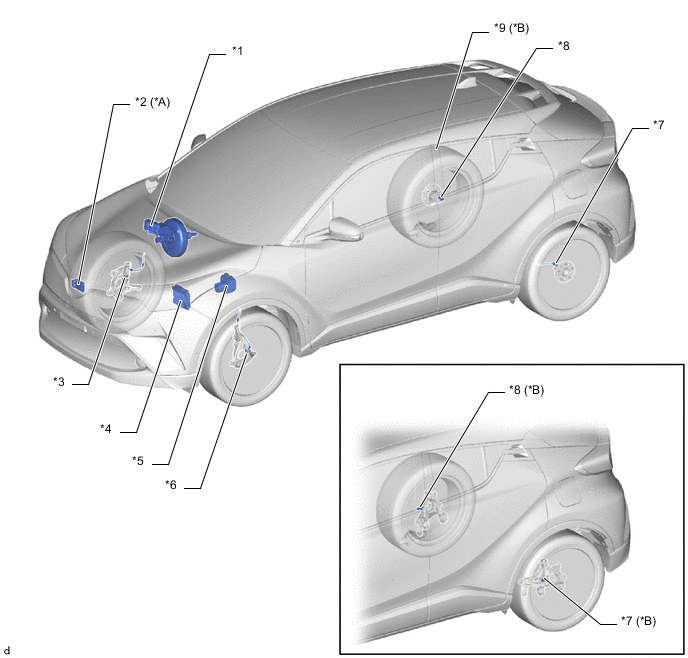

Figure 1. LHD Models
| *A | Models with Toyota Safety Sense | *B | AWD Models |
| *1 | Brake Actuator Assembly
|
*2 | Millimeter Wave Radar Sensor Assembly |
| *3 | Front Speed Sensor RH | *4 | ECM |
| *5 | Brake Master Cylinder Reservoir Assembly
|
*6 | Front Speed Sensor LH |
| *7 | Rear Speed Sensor LH | *8 | Rear Speed Sensor RH |
| *9 | 4WD ECU Assembly | - | - |

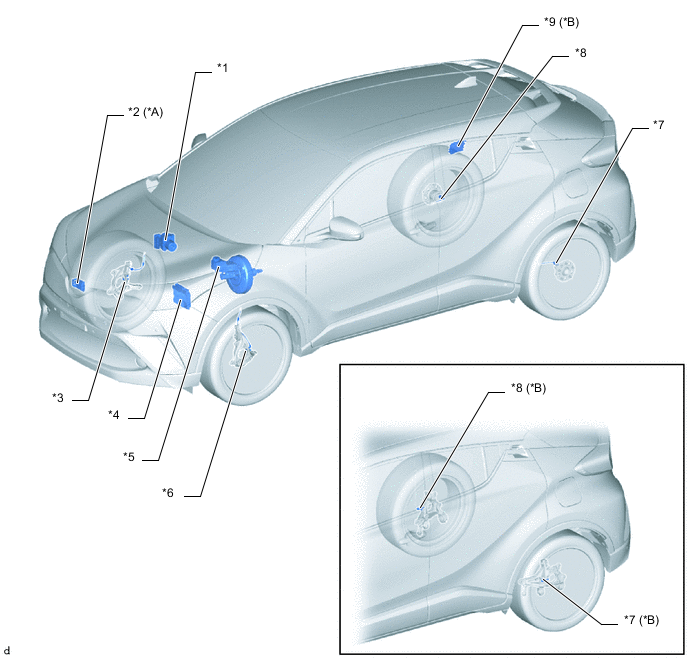

Figure 2. RHD Models
| *A | Models with Toyota Safety Sense | *B | AWD Models |
| *1 | Brake Master Cylinder Reservoir Assembly
|
*2 | Millimeter Wave Radar Sensor Assembly |
| *3 | Front Speed Sensor RH | *4 | ECM |
| *5 | Brake Actuator Assembly
|
*6 | Front Speed Sensor LH |
| *7 | Rear Speed Sensor LH | *8 | Rear Speed Sensor RH |
| *9 | 4WD ECU Assembly | - | - |

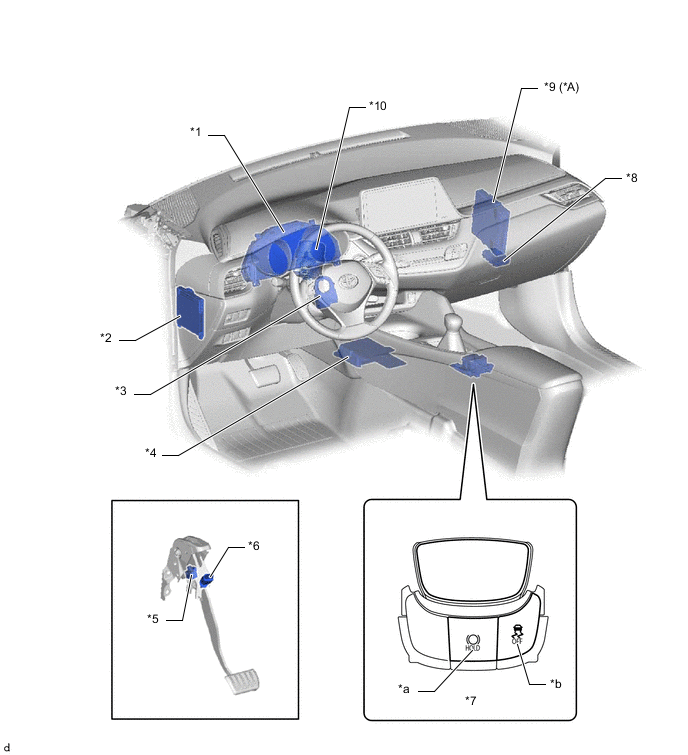

Figure 3. LHD Models
| *A | Models with Stop and Start System | - | - |
| *1 | Combination Meter Assembly | *2 | Main Body ECU (Multiplex Network Body ECU) |
| *3 | Spiral Cable with Sensor Sub-assembly
|
*4 | Airbag Sensor Assembly
|
| *5 | Brake Pedal Load Sensing Switch | *6 | Stop Light Switch Assembly |
| *7 | Electric Parking Brake Switch Assembly | *8 | Network Gateway ECU |
| *9 | Engine Stop and Start ECU | *10 | Power Steering ECU Assembly |
| *a | Brake Hold Switch | *b | VSC OFF Switch |

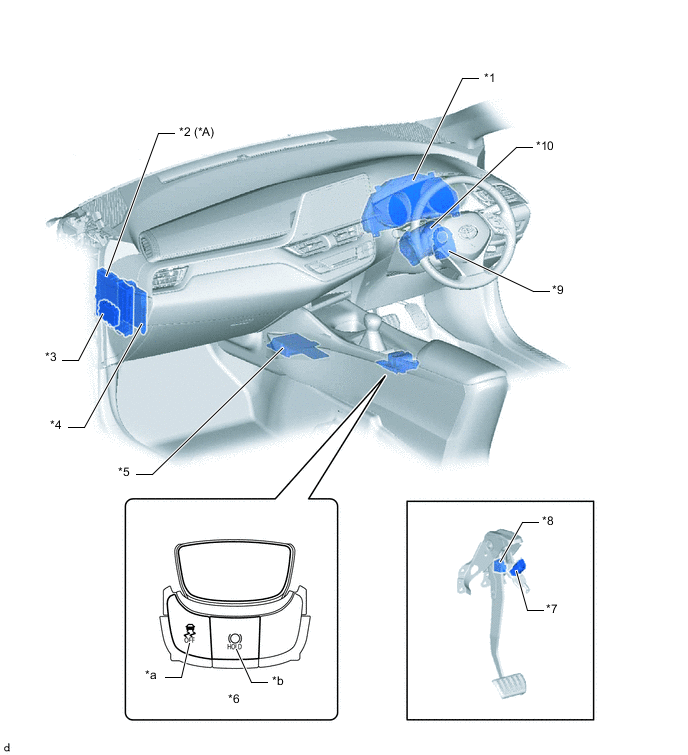

Figure 4. RHD Models
| *A | Models with Stop and Start System | - | - |
| *1 | Combination Meter Assembly | *2 | Engine Stop and Start ECU |
| *3 | Network Gateway ECU | *4 | Main Body ECU (Multiplex Network Body ECU) |
| *5 | Airbag Sensor Assembly
|
*6 | Electric Parking Brake Switch Assembly |
| *7 | Stop Light Switch Assembly | *8 | Brake Pedal Load Sensing Switch |
| *9 | Spiral Cable with Sensor Sub-assembly
|
*10 | Power Steering ECU Assembly |
| *a | Brake Hold Switch | *b | VSC OFF Switch |
