TIRE AND WHEEL SYSTEM


  1. OUTLINE


    1. 3 sizes of tires, 1 type of steel wheel and 4 types of aluminum wheels are available.

    2. 1 type of wheel cap is available.

    3. By integrating lightweight aluminum disc wheels and aero caps, the appearance and aerodynamic characteristics of the 16-inch tires have been enhanced.

    4. 2 sizes of compact spare tires, full size spare tire, or puncture repair kit are available.

  2. SPECIFICATION


    1. Tire and Wheel

      Tire Size 215/60R17
      Wheel Size 17 x 6 1/2J
      Pitch Circle Diameter mm (in.) 114.3 (4.5)
      Inset mm (in.) 45 (1.8)
      Material Steel
      Wheel Cap Full Wheel Cap

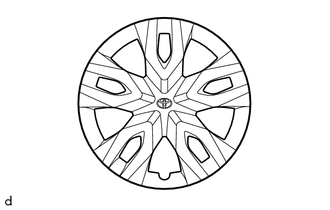

      Wheel Design / Wheel Cap Design A001N1A
      Tire Size 215/65R16
      Wheel Size 16 x 6 1/2J
      Pitch Circle Diameter mm (in.) 114.3 (4.5)
      Inset mm (in.) 45 (1.8)
      Material Aluminum
      Wheel Cap Center Ornament/Aero Cap

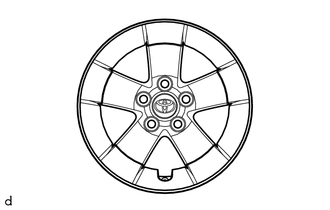

      Wheel Design / Wheel Cap Design A001MYX
      Tire Size 215/60R17
      Wheel Size 17 x 6 1/2J
      Pitch Circle Diameter mm (in.) 114.3 (4.5)
      Inset mm (in.) 45 (1.8)
      Material Aluminum
      Wheel Cap Center Ornament

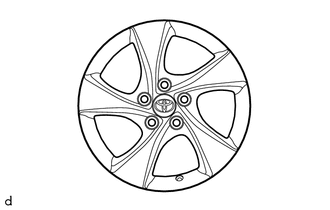

      Wheel Design / Wheel Cap Design A001N9C
      Tire Size 225/50R18
      Wheel Size 18 x 7J
      Pitch Circle Diameter mm (in.) 114.3 (4.5)
      Inset mm (in.) 50 (2.0)
      Material Aluminum
      Wheel Cap Center Ornament

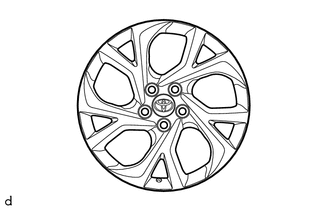

      Wheel Design / Wheel Cap Design A001MJF
      Tire Size 225/50R18
      Wheel Size 18 x 7J
      Pitch Circle Diameter mm (in.) 114.3 (4.5)
      Inset mm (in.) 50 (2.0)
      Material Aluminum
      Wheel Cap Center Ornament

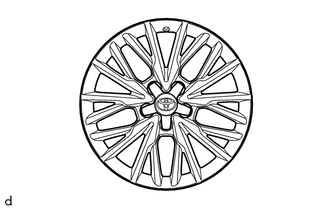

      Wheel Design / Wheel Cap Design A001MH5

    2. Puncture Repair Kit

      Item Specification
      Usable Temperature Range °C (°F) -30 to 60 (-22 to 140)
      Maximum Current Consumption A 10
      Sealant Repair Seal Liquid Material Glycerin, natural rubber, synthetic rubber, water, surfactant
      Quantity ml (US qts, Imp. qts) 450 (0.5, 0.4)
      Expiration Date Displayed on Sealant Bottle

  3. MAIN FEATURES


    1. Puncture Repair Kit


      1. A puncture repair kit, which is used to feed repair seal liquid into a flat tire to temporarily repair the puncture, is provided. Therefore, a spare tire is no longer needed, resulting in an increase in the luggage compartment capacity.

      2. The puncture repair kit can be used in an emergency to repair a tire that has been punctured by a nail, screw, etc. piercing the tread part of the tire.

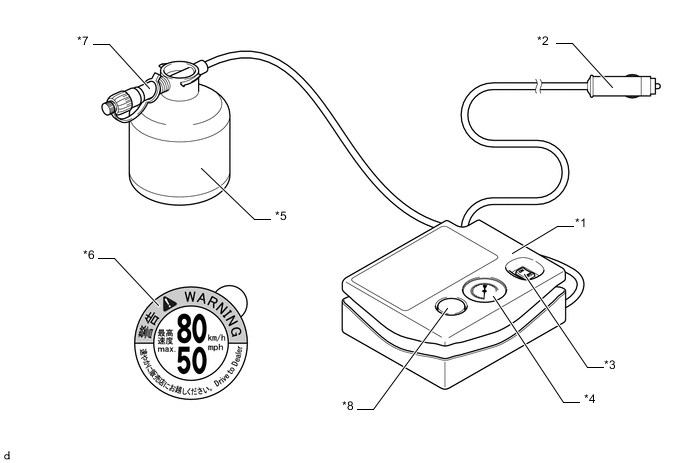

        A001MUQC01
        *1 Air Compressor Assembly *2 Power plug
        *3 On/Off Switch *4 Air pressure gauge
        *5 Repair Sealant Bottle *6 Speed Restriction Sticker
        *7 Nozzle *8 Pressure release button
