CRUISE CONTROL SYSTEM

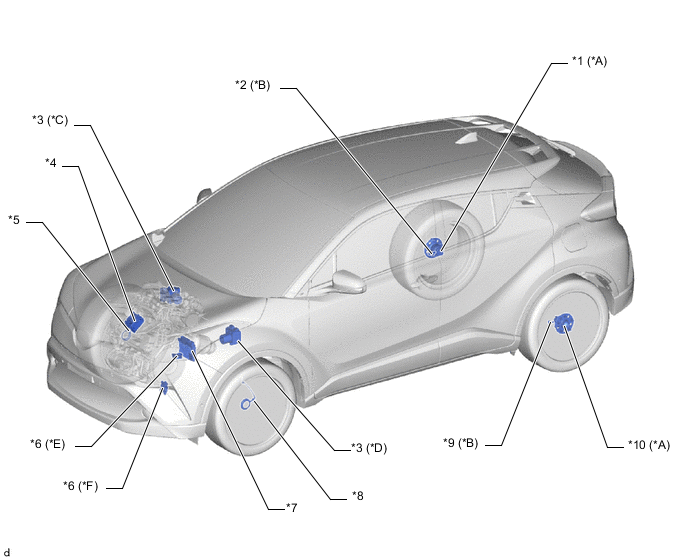

| *A | 2WD Models | *B | AWD Models |
| *C | LHD Models | *D | RHD Models |
| *E | Models for 8NR-FTS Engine and CVT | *F | Models for 3ZR-FAE Engine and CVT |
| *1 | Rear Speed Sensor RH (Rear Axle Hub and Bearing Assembly RH) | *2 | Rear Speed Sensor RH |
| *3 | Brake Actuator Assembly
|
*4 | Throttle Body with Motor Assembly
|
| *5 | Front Speed Sensor RH | *6 | Park/Neutral Position Switch Assembly |
| *7 | ECM | *8 | Front Speed Sensor LH |
| *9 | Rear Speed Sensor LH | *10 | Rear Speed Sensor LH (Rear Axle Hub and Bearing Assembly LH) |

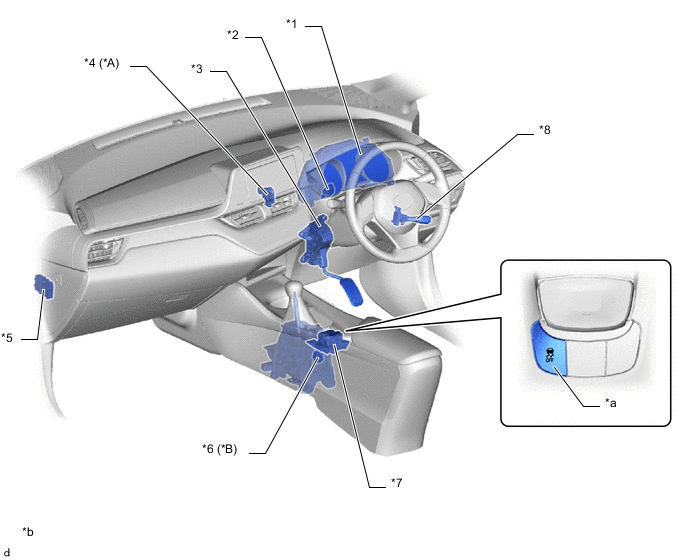

Figure 1. LHD Models
| *A | Models with Manual Transaxle | *B | Models with CVT |
| *1 | Combination Meter Assembly | *2 | Stop Light Switch Assembly |
| *3 | Clutch Pedal Stroke Sensor Assembly | *4 | Accelerator Pedal Sensor Assembly |
| *5 | Cruise Control Main Switch | *6 | Shift Lock Control Unit Assembly
|
| *7 | Electric Parking Brake Switch Assembly | *8 | Network Gateway ECU |
| *a | VSC OFF (TRC OFF) Switch | *b | The illustration shown is an example only. |

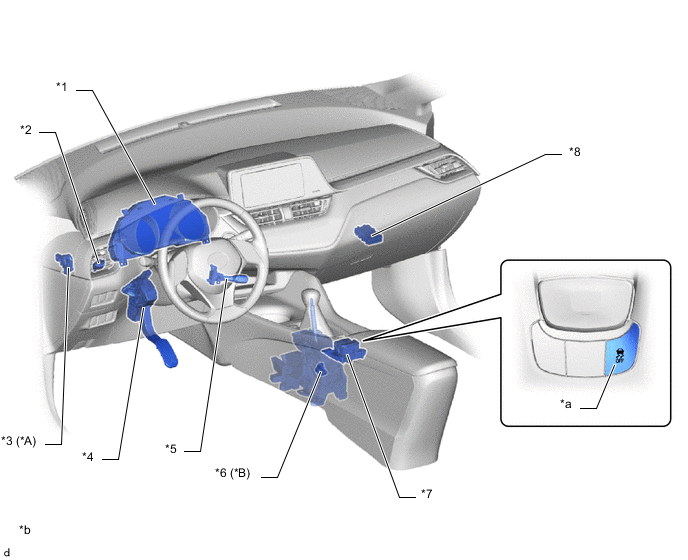

Figure 2. RHD Models
| *A | Models with Manual Transaxle | *B | Models with CVT |
| *1 | Combination Meter Assembly | *2 | Stop Light Switch Assembly |
| *3 | Accelerator Pedal Sensor Assembly | *4 | Clutch Pedal Stroke Sensor Assembly |
| *5 | Network Gateway ECU | *6 | Shift Lock Control Unit Assembly
|
| *7 | Electric Parking Brake Switch Assembly | *8 | Cruise Control Main Switch |
| *a | VSC OFF (TRC OFF) Switch | *b | The illustration shown is an example only. |
