SFI SYSTEM


  1. FUNCTION


    1. Fuel Cut Control


      1. Fuel cut control is used to stop the fuel pump when any the SRS airbags has deployed in a the front or side* collision. When the ECM detects the airbag deployment signal from the airbag sensor assembly, the ECM will turn the EFI circuit opening relay off.


        • *: Models with SRS side airbag

      2. After fuel cut control has been activated, turning the ignition switch off and then ON cancels fuel cut control, and the engine can be restarted.

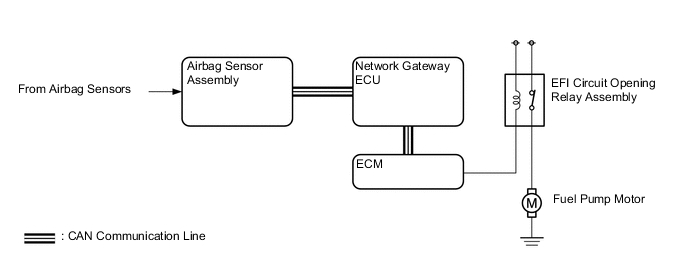

        A001MLLE01
