SFI SYSTEM

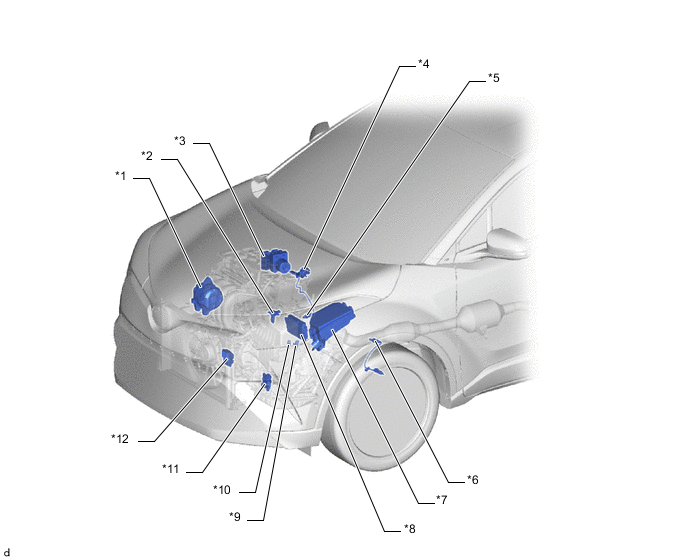

A001NAKC01
*1 Generator Assembly *2

Intake Mass Air Flow Meter Sub-assembly


  • Intake Air Temperature Sensor
*3

Brake Actuator Assembly


  • Skid Control ECU

 *4 Duty Vacuum Switching Valve
*5 Air Fuel Ratio Sensor *6 Oxygen Sensor
*7

No. 1 Engine Room Relay Block


  • EFI Circuit Opening Relay Assembly

  • Starter Relay Assembly

  • No. 1 EFI Main Relay

  • No. 2 Ignition Relay (No. 1 Integration Relay)

 *8 ECM
*9 Transmission Revolution Sensor (NIN) *10 Transmission Revolution Sensor (NT)
*11 Park/Neutral Position Switch Assembly *12 Cooling Fan ECU

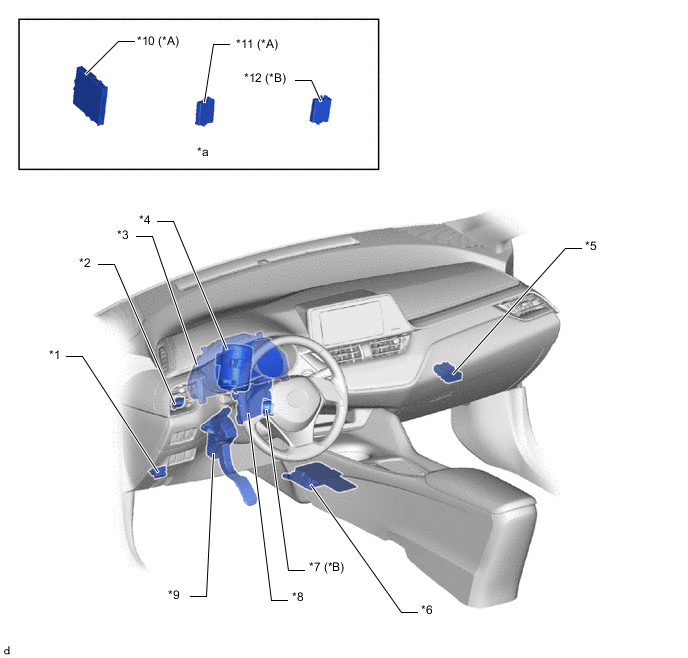

A001NAAC02
*A Models with Entry and Start System *B Models without Entry and Start System
*1 DLC3 *2 Stop Light Switch Assembly
*3 Combination Meter Assembly *4 Power Steering ECU Assembly
*5 Network Gateway ECU *6 Airbag Sensor Assembly
*7 Ignition or Starter Switch Assembly *8 Air Conditioning Amplifier Assembly
*9 Accelerator Pedal Sensor Assembly *10 Certification ECU (Smart Key ECU Assembly)
*11 ID Code Box (Immobiliser Code ECU) *12 Transponder Key ECU Assembly
*a Refer to the Service Bulletin for the installation position of the parts. - -

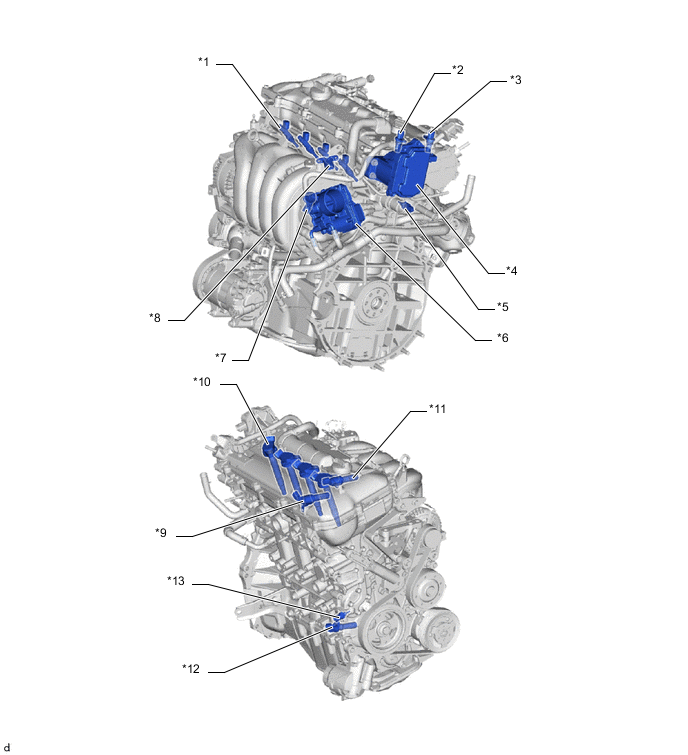

A001MQ6C01
*1 Fuel Injector Assembly *2 Cam Position Sensor (Intake)
*3 Cam Position Sensor (Exhaust) *4 Continuously Variable Valve Lift Controller Assembly
*5 E.F.I. Engine Coolant Temperature Sensor *6

Throttle Body Assembly


  • Throttle Control Motor

  • Throttle Position Sensor
*7 Knock Control Sensor *8 E.F.I. Vacuum Sensor Assembly
*9 Camshaft Timing Oil Control Valve Assembly (Exhaust) *10 Ignition Coil Assembly
*11 Camshaft Timing Oil Control Valve Assembly (Intake) *12 Crank Position Sensor
*13 Temperature Sensor - -
