SFI SYSTEM

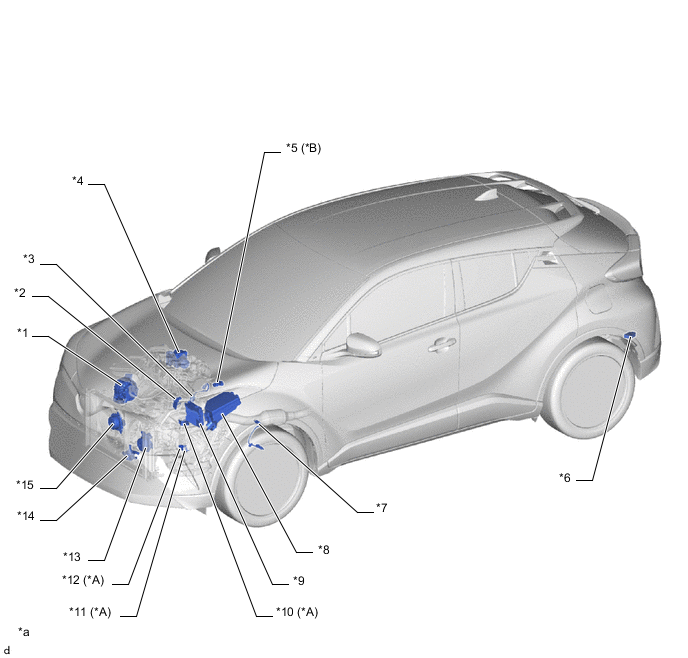

| *A | Models with CVT | *B | Models with Charging Control |
| *1 | Generator Assembly | *2 | Intake Mass Air Flow Meter Sub-assembly
|
| *3 | Air Fuel Ratio Sensor | *4 | Brake Actuator Assembly
|
| *5 | Battery State Sensor Assembly | *6 | Fuel Pump Control ECU Assembly |
| *7 | Oxygen Sensor | *8 | No. 1 Engine Room Relay Block
|
| *9 | ECM | *10 | Park/Neutral Position Switch Assembly |
| *11 | Transmission Revolution Sensor (NT) | *12 | Transmission Revolution Sensor (NIN) |
| *13 | Cooling Fan Motor LH | *14 | Electric Water Pump Assembly |
| *15 | Cooling Fan Motor RH | - | - |
| *a | The illustrations shown are examples only. | - | - |

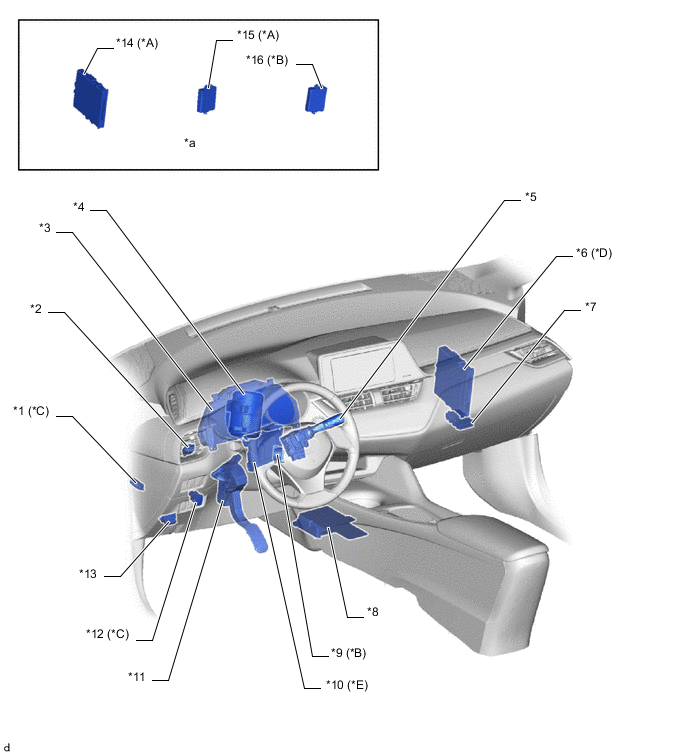

Figure 1. LHD Models
| *A | Models with Entry and Start System | *B | Models without Entry and Start System |
| *C | Models with Manual Transaxle | *D | Models with Stop and Start System |
| *E | Models with Air Conditioning System | - | - |
| *1 | Clutch Start Switch Assembly | *2 | Stop Light Switch Assembly |
| *3 | Combination Meter Assembly | *4 | Power Steering ECU Assembly |
| *5 | Windshield Wiper Switch Assembly | *6 | Engine Stop and Start ECU |
| *7 | Network Gateway ECU | *8 | Airbag Sensor Assembly |
| *9 | Ignition or Starter Switch Assembly | *10 | Air Conditioning Amplifier Assembly |
| *11 | Accelerator Pedal Sensor Assembly | *12 | iMT Switch (Pattern Select Switch Assembly) |
| *13 | DLC3 | *14 | Certification ECU (Smart Key ECU Assembly) |
| *15 | ID Code Box (Immobiliser Code ECU) | *16 | Transponder Key ECU Assembly |
| *a | Refer to the Service Bulletin for the installation position of the part. | - | - |

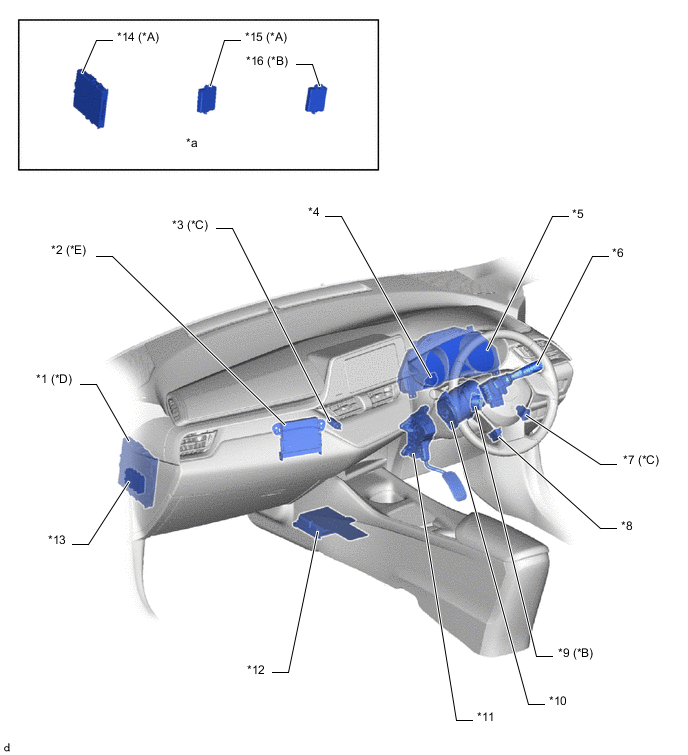

Figure 2. RHD Models
| *A | Models with Entry and Start System | *B | Models without Entry and Start System |
| *C | Models with Manual Transaxle | *D | Models with Stop and Start System |
| *E | Models with Air Conditioning System | - | - |
| *1 | Engine Stop and Start ECU | *2 | Air Conditioning Amplifier Assembly |
| *3 | Clutch Start Switch Assembly | *4 | Stop Light Switch Assembly |
| *5 | Combination Meter Assembly | *6 | Windshield Wiper Switch Assembly |
| *7 | iMT Switch (Pattern Select Switch Assembly) | *8 | DLC3 |
| *9 | Ignition or Starter Switch Assembly | *10 | Power Steering ECU Assembly |
| *11 | Accelerator Pedal Sensor Assembly | *12 | Airbag Sensor Assembly |
| *13 | Network Gateway ECU | *14 | Certification ECU (Smart Key ECU Assembly) |
| *15 | ID Code Box (Immobiliser Code ECU) | *16 | Transponder Key ECU Assembly |
| *a | Refer to the Service Bulletin for the installation position of the part. | - | - |

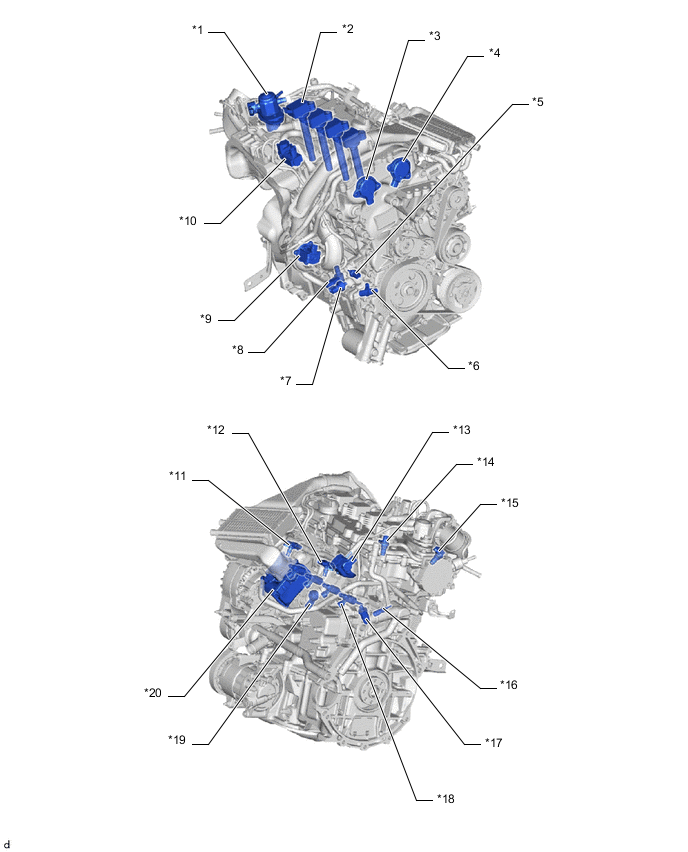

| *1 | Fuel Pump Assembly (for High Pressure) | *2 | No. 1 Ignition Coil |
| *3 | Cam Timing Oil Control Solenoid Assembly (Exhaust) | *4 | Cam Timing Oil Control Solenoid Assembly (Intake) |
| *5 | Temperature Sensor | *6 | Crank Position Sensor |
| *7 | Oil Pressure Sender Gauge Assembly | *8 | Oil Pressure Switching Valve Assembly |
| *9 | Air Bypass Valve | *10 | Vacuum Regulating Valve Assembly |
| *11 | No. 1 Turbo Pressure Sensor
|
*12 | No. 2 Turbo Pressure Sensor |
| *13 | Purge VSV (No. 1 Vacuum Switching Valve Assembly) | *14 | Intake Cam Position Sensor (No. 1 Crank Position Sensor) |
| *15 | Exhaust Cam Position Sensor (No. 2 Crank Position Sensor) | *16 | Engine Coolant Temperature Sensor |
| *17 | Fuel Pressure Sensor | *18 | Fuel Injector Assembly |
| *19 | Knock Control Sensor | *20 | Throttle Body with Motor Assembly
|
