BODY STRUCTURE


  1. CONSTRUCTION


    1. Hot-stamped and High Tension Steel, Aluminum Components


      1. Ultra high-tensile strength steel sheet, hot-stamped steel sheet and aluminum components are used in order to achieve excellent body rigidity and a lightweight body.

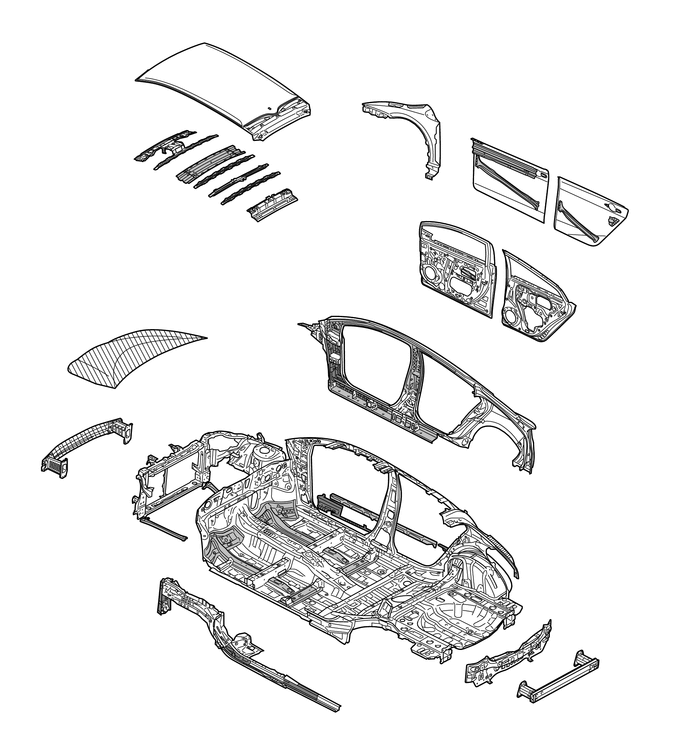

        A003ITGC01
        A003J9O Aluminum Components A003J6D Hot-stamped Steel Sheet
        A003IT4 Ultra High-tensile Strength Steel Sheet - -

    2. Carbon Fiber Reinforced Plastics Back Door


      1. By rigidity it has used and lightweight Carbon Fiber Reinforced Plastics (CFRP) to back door, and lighter without compromising th body rigidity.

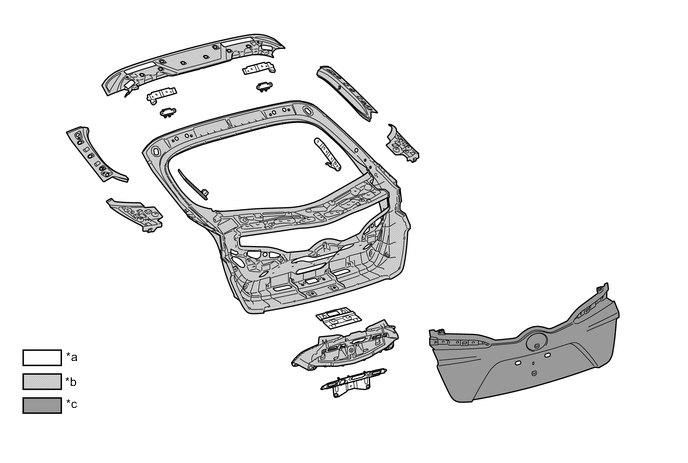

        A003J13C01
        *a Aluminum *b Carbon Fiber Reinforced Plastics (CFRP)
        *c Toyota Super Olefin Polymer (TSOP) - -
