CAN COMMUNICATION SYSTEM

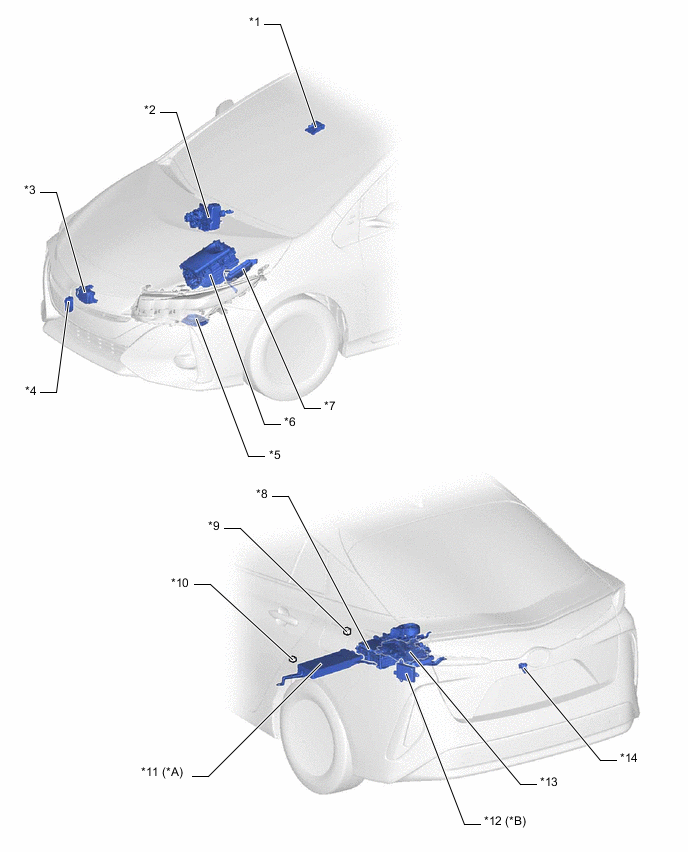

Figure 1. LHD Models
| *A | Models with Toyota Safety Sense | *B | Except Destination Package for South Korea |
| *C | Models with Solar Charging System | *D | Models with Blind Spot Monitor System |
| *E | Models with Parking Assist Monitor System | - | - |
| *1 | FORWARD RECOGNITION CAMERA | *2 | INVERTER WITH CONVERTER ASSEMBLY |
| *3 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *4 | SWING GRILLE ACTUATOR ASSEMBLY |
| *5 | NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH | *6 | ECM |
| *7 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY | *8 | NO. 8 CAN JUNCTION CONNECTOR |
| *9 | ELECTRIC VEHICLE CHARGER ASSEMBLY | *10 | NO. 7 CAN JUNCTION CONNECTOR |
| *11 | SOLAR ENERGY CONTROL UNIT | *12 | BLIND SPOT MONITOR SENSOR LH |
| *13 | BATTERY ECU ASSEMBLY | *14 | REAR TELEVITION CAMERA ASSEMBLY |

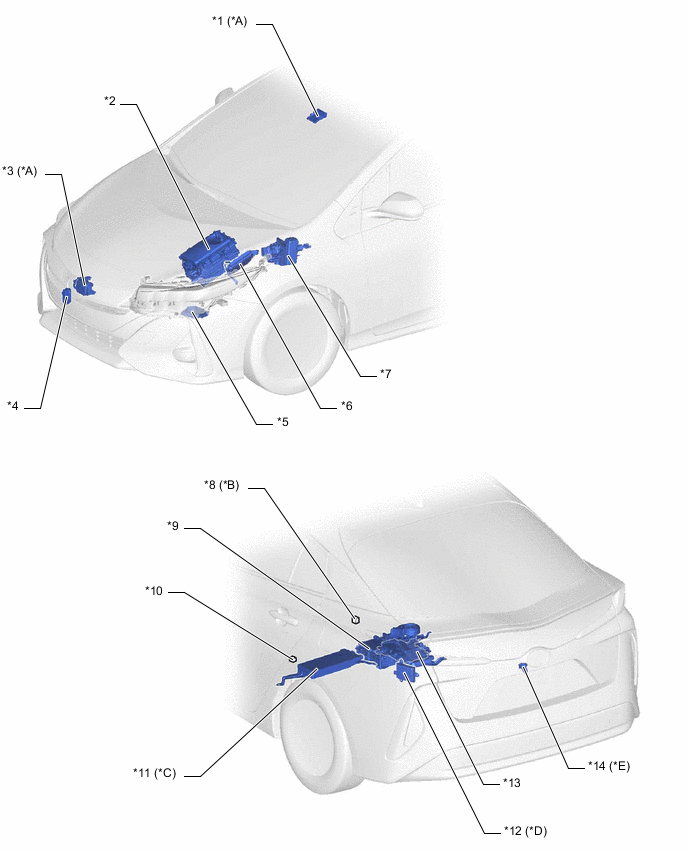

Figure 2. RHD Models
| *A | Models with Solar Charging System | *B | Models with Blind Spot Monitor System |
| *1 | FORWARD RECOGNITION CAMERA | *2 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY |
| *3 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *4 | SWING GRILLE ACTUATOR ASSEMBLY |
| *5 | NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH | *6 | INVERTER WITH CONVERTER ASSEMBLY |
| *7 | ECM | *8 | ELECTRIC VEHICLE CHARGER ASSEMBLY |
| *9 | NO. 8 CAN JUNCTION CONNECTOR | *10 | NO. 7 CAN JUNCTION CONNECTOR |
| *11 | SOLAR ENERGY CONTROL UNIT | *12 | BLIND SPOT MONITOR SENSOR LH |
| *13 | BATTERY ECU ASSEMBLY | *14 | REAR TELEVITION CAMERA ASSEMBLY |

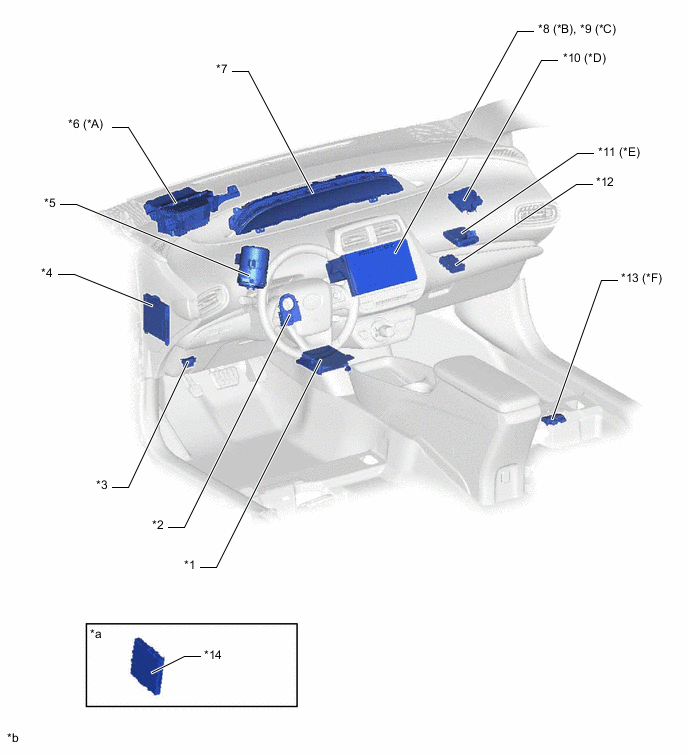

Figure 3. LHD Models
| *A | Models with Headup Display | *B | Models with Navigation System |
| *C | Models with Multimedia System | *D | Models with Intelligent Clearance Sonar System |
| *E | Models with Toyota Safety Sense | *F | Destination Package for South Korea |
| *1 | AIRBAG SENSOR ASSEMBLY | *2 | STEERING SENSOR |
| *3 | DLC3 | *4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | POWER STEERING ECU ASSEMBLY | *6 | COMBINATION METER MIRROR ECU |
| *7 | COMBINATION METER ASSEMBLY | *8 | NAVIGATION RECEIVER ASSEMBLY |
| *9 | RADIO AND DISPLAY RECEIVER ASSEMBLY | *10 | CLEARANCE WARNING ECU ASSEMBLY |
| *11 | DRIVING SUPPORT ECU ASSEMBLY | *12 | CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) |
| *13 | OCCUPANT DETECTION ECU | *14 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *a | Refer to Service Bulletin for the installation position of the part. | *b | The illustrations shown are examples only. |

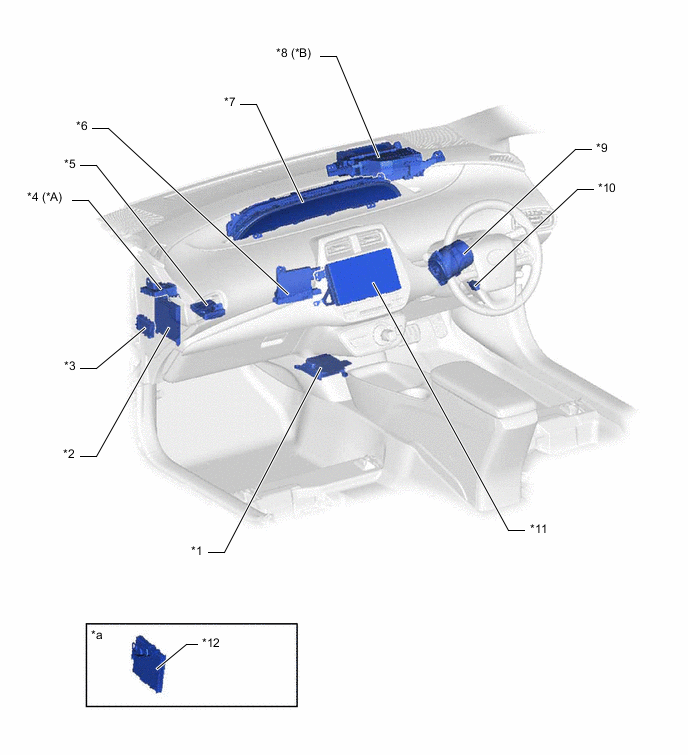

Figure 4. RHD Models
| *A | Models with Intelligent Clearance Sonar System | *B | Models with Headup Display |
| *1 | AIRBAG SENSOR ASSEMBLY | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) | *4 | CLEARANCE WARNING ECU ASSEMBLY |
| *5 | DRIVING SUPPORT ECU ASSEMBLY | *6 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *7 | COMBINATION METER ASSEMBLY | *8 | COMBINATION METER MIRROR ECU |
| *9 | POWER STEERING ECU ASSEMBLY | *10 | DLC3 |
| *11 | RADIO AND DISPLAY RECEIVER ASSEMBLY | *12 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |

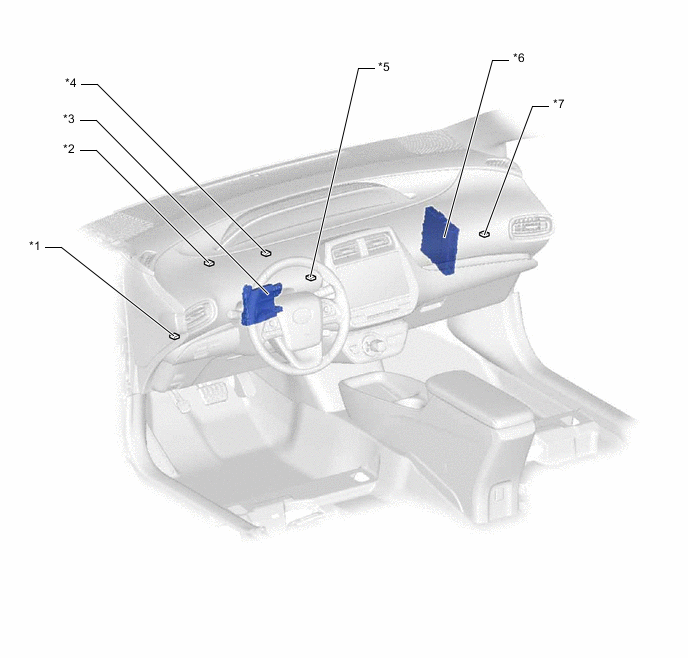

Figure 5. LHD Models
| *1 | NO. 2 CAN JUNCTION CONNECTOR | *2 | NO. 1 CAN JUNCTION CONNECTOR |
| *3 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *4 | NO. 3 CAN JUNCTION CONNECTOR |
| *5 | NO. 4 CAN JUNCTION CONNECTOR | *6 | HYBRID VEHICLE CONTROL ECU |
| *7 | NO. 5 CAN JUNCTION CONNECTOR | - | - |

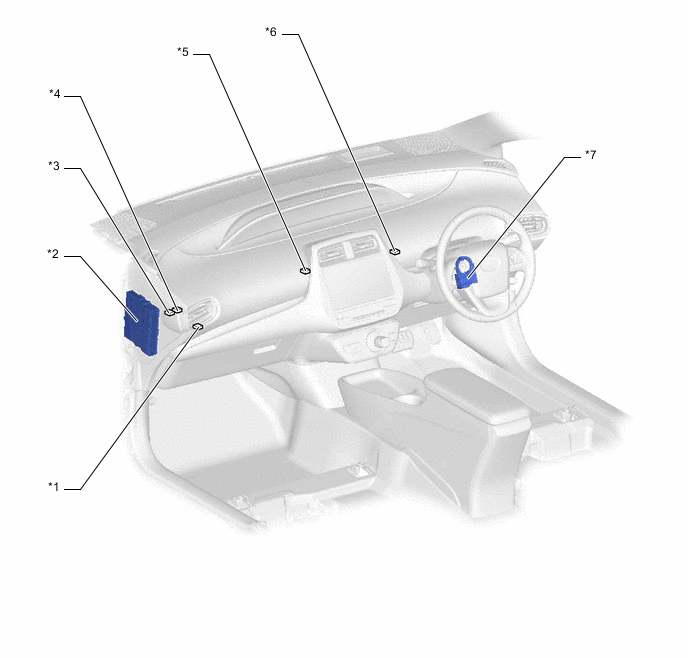

Figure 6. RHD Models
| *1 | NO. 1 CAN JUNCTION CONNECTOR | *2 | HYBRID VEHICLE CONTROL ECU |
| *3 | NO. 5 CAN JUNCTION CONNECTOR | *4 | NO. 3 CAN JUNCTION CONNECTOR |
| *5 | NO. 4 CAN JUNCTION CONNECTOR | *6 | NO. 2 CAN JUNCTION CONNECTOR |
| *7 | STEERING SENSOR | - | - |
