LIN COMMUNICATION SYSTEM
| *A | Models with Rain Sensing Function | *B | LHD Models |
| *C | RHD Models | - | - |
| *1 | RAIN SENSOR | *2 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (Driver) |
| *3 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (Rear LH) | *4 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (Rear RH) |
| *5 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (Front Passenger) | - | - |

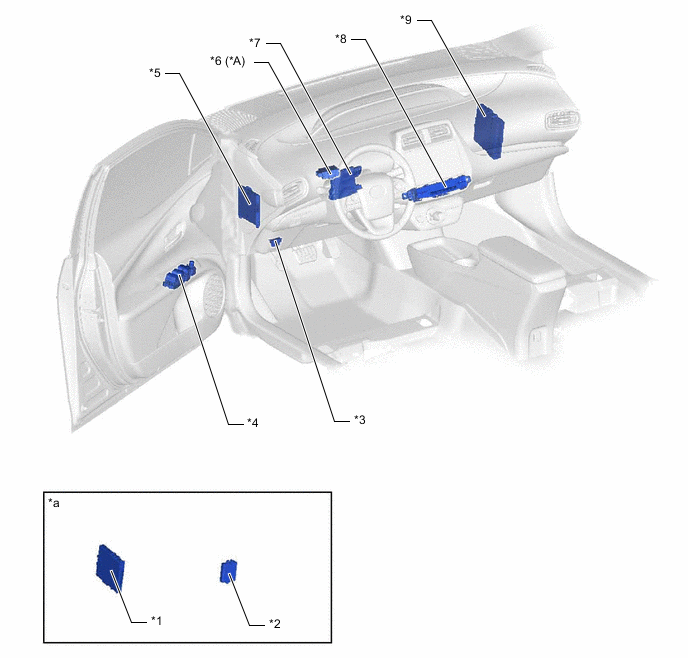

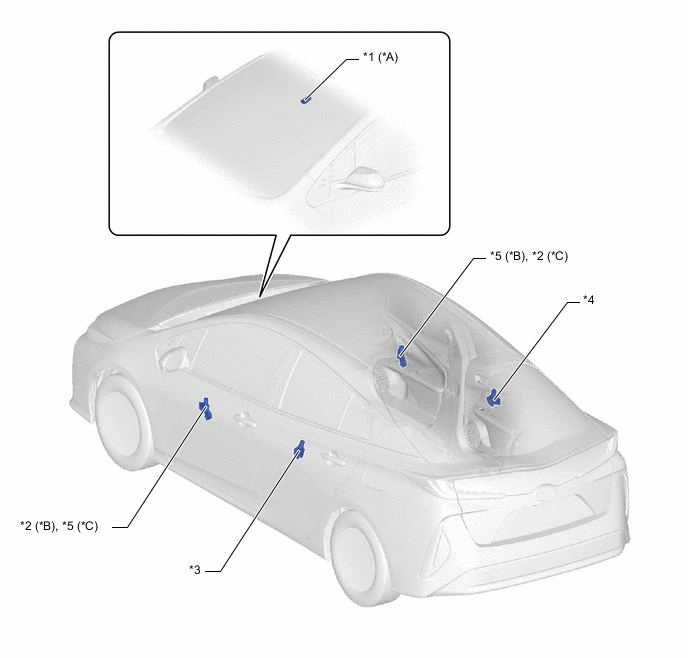

Figure 1. LHD Models
| *A | Models with Rain Sensing Function | - | - |
| *1 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *2 | ID CODE BOX (IMMOBILISER CODE ECU) |
| *3 | DLC3 | *4 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | WINDSHIELD WIPER RELAY ASSEMBLY |
| *7 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *8 | AIR CONDITIONING CONTROL ASSEMBLY |
| *9 | HYBRID VEHICLE CONTROL ECU | - | - |
| *a | Refer to Service Bulletin for the installation position of the parts. | - | - |

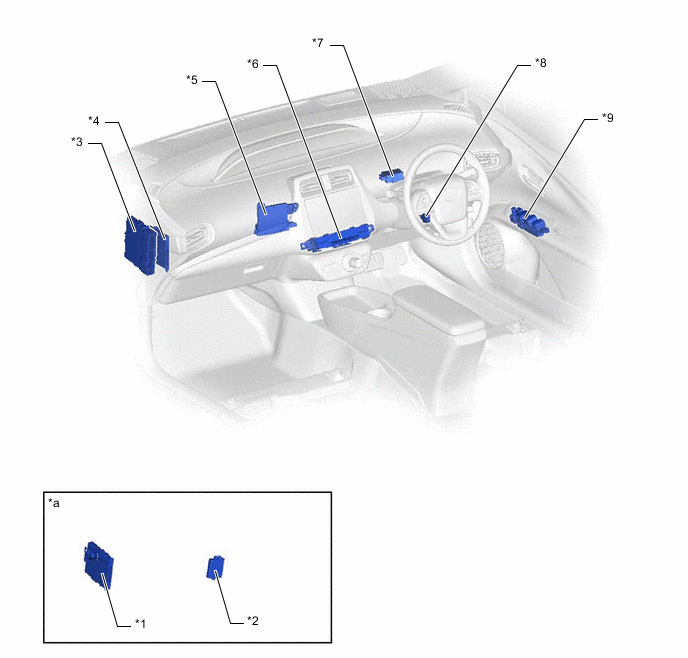

Figure 2. RHD Models
| *1 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *2 | ID CODE BOX (IMMOBILISER CODE ECU) |
| *3 | HYBRID VEHICLE CONTROL ECU | *4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *6 | AIR CONDITIONING CONTROL ASSEMBLY |
| *7 | WINDSHIELD WIPER RELAY ASSEMBLY | *8 | DLC3 |
| *9 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY | - | - |
| *a | Refer to Service Bulletin for the installation position of the parts. | - | - |
