LIN COMMUNICATION SYSTEM

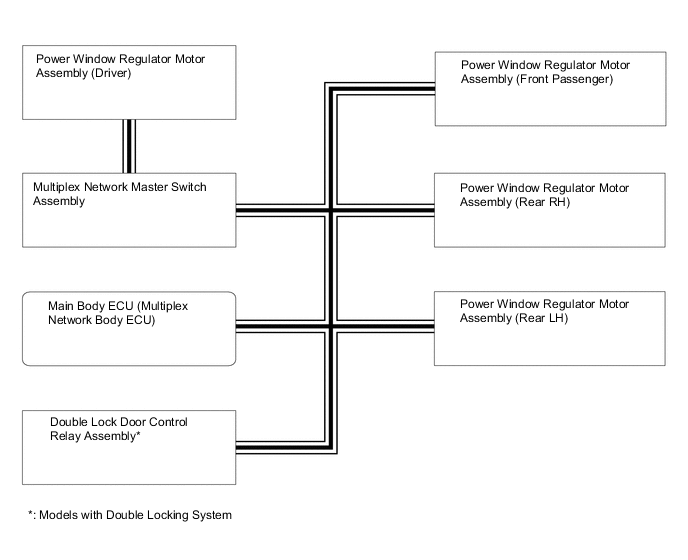

Figure 1. Door Bus

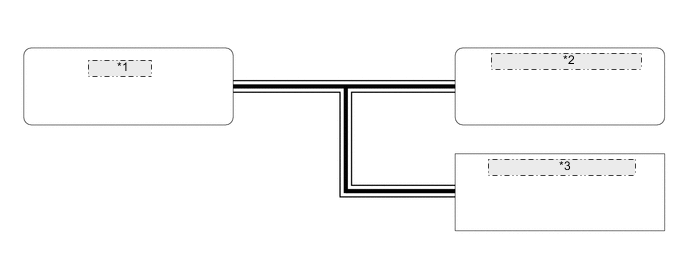

Figure 2. Certification Bus
| *1 | Certification ECU (Smart Key ECU Assembly) |
| *2 | Hybrid Vehicle Control ECU |
| *3 | ID Code Box (Immobiliser Code ECU) |

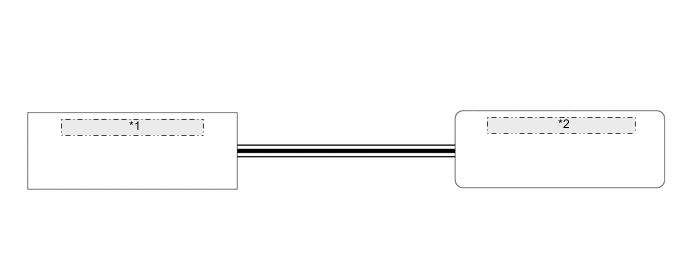

Figure 3. Air Conditioning Bus
| *1 | Air Conditioning Control Assembly |
| *2 | Air Conditioning Amplifier Assembly |

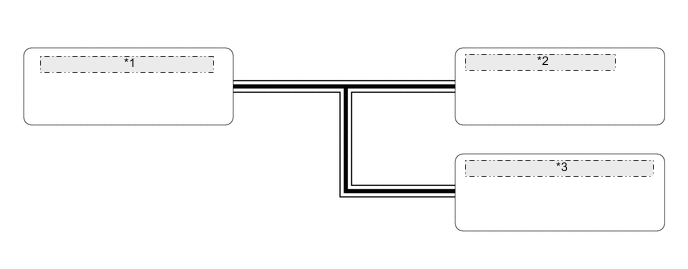

Figure 4. Wiper Bus (Models with Rain Sensing Function)
| *1 | Rain Sensor |
| *2 | Air Conditioning Amplifier Assembly |
| *3 | Windshield Wiper Relay Assembly |
