PARKING BRAKE SYSTEM


  1. OUTLINE


    1. A foot-operated parking brake has been adopted.

    2. A parking brake mechanism which is built into the caliper is used.

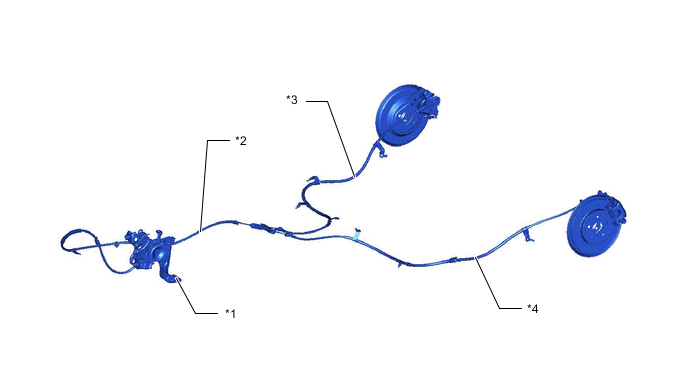

      A003JA7C01
      *1 Parking Brake Control Pedal Assembly *2 No. 1 Parking Brake Cable Assembly
      *3 No. 2 Parking Brake Cable Assembly *4 No. 3 Parking Brake Cable Assembly
