SPEED LIMITER SYSTEM


  1. OPERATOPN


    1. The combination meter assembly provides indicator lights, display and buzzer to indicate the condition of the speed limiter system.

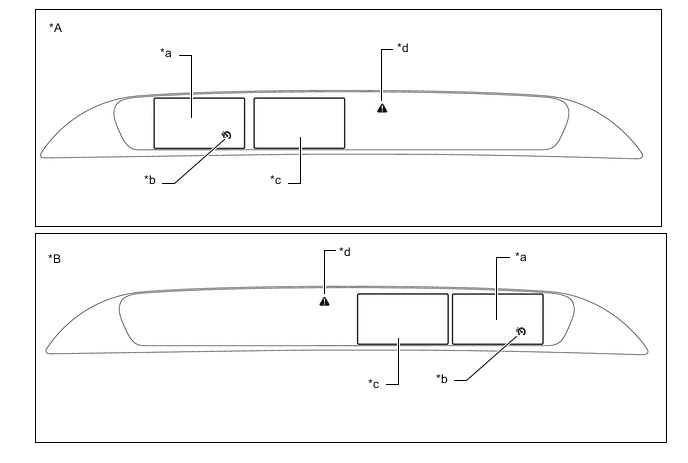

      A003JA0C01
      *A LHD Models *B RHD Models
      *a Main Display *b Speed Limiter Indicator Light
      *c Multi-information Display *d Master Warning Light
      Condition Main Display*1*2 Multi-information Display Master Warning light Buzzer
      Speed Limiter Switch Off Dose not Illuminate - Dose not Illuminate -
      Speed Limiter Switch On A003J7M - Dose not Illuminate -
      Set Standby A003JA2 - Dose not Illuminate -

      Being Controlled

      (Effecting Control)

      		 A003JA2 - Dose not Illuminate -

      Being Controlled

      (Set Speed Exceeded)*3

      		 A003IQX

      (Blinks)

      		 - Illuminates Sounds
      System Malfunction -

      Check

      Speed Limiter

      System

      		 Illuminates Sounds

      *1: These illustrations are examples.

      *2: While driving at a set speed of 100 km/h (62 mph).

      *3: Except when the driver is intended over speed (Override, coast, tap down and resume control operation).
