CRUISE CONTROL SYSTEM


  1. OPERATION


    1. The combination meter assembly provides a cruise control indicator light, cruise SET indicator light and multi-information display to indicate the condition of the cruise control system.

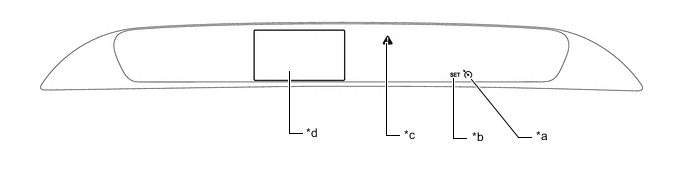

      A003JA9C01
      *a Cruise Control Indicator Light *b Cruise SET Indicator Light
      *c Master Warning Light *d Multi-information Display
      Condition Multi-information Display*1 A003IPW A003J23 A003IVM
      Set Standby - Illuminates - -
      Being Controlled*2 A003IXX Illuminates Illuminates -
      System Malfunction Check Cruise Control System Visit Your Dealer - - Illuminates

      *1: These illustrations are examples.

      *2: While driving at a set speed of 100 km/h (62 mph).
