CRUISE CONTROL SYSTEM


  1. CONSTRUCTION


    1. The cruise control switch consists of the ON-OFF button and the +RES, -SET and CANCEL switches. The +RES, -SET and CANCEL switches are operated by moving the lever in the 3 directions indicated.

    2. The switches in the cruise control switch are of the automatic reset (normally open) type that turn on only when the switch is being operated and turn off as soon as the driver releases the switch. Furthermore, the functions of the switch are active only when the cruise control system has been turned on using the ON-OFF button on the cruise control switch.

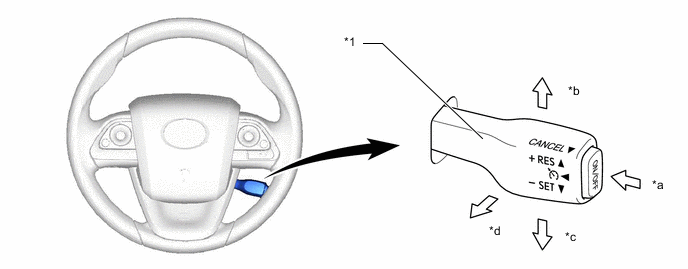

      A003IWFC01
      *1 Cruise Control Switch - -
      *a ON-OFF Button *b +RES Switch
      *c -SET Switch *d CANCEL Switch
