CRUISE CONTROL SYSTEM

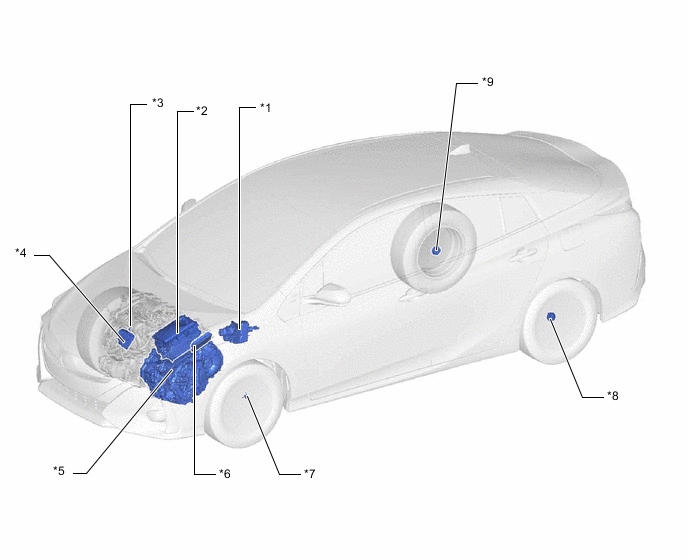

A003J3HC01
*1

BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY


  • SKID CONTROL ECU

 *2

INVERTER WITH CONVERTER ASSEMBLY


  • MG ECU
*3 FRONT SPEED SENSOR RH *4

THROTTLE BODY ASSEMBLY


  • THROTTLE POSITION SENSOR

  • THROTTLE CONTROL MOTOR
*5

HYBRID VEHICLE TRANSAXLE ASSEMBLY


  • MG2

 *6 ECM
*7 FRONT SPEED SENSOR LH *8 REAR SPEED SENSOR LH
*9 REAR SPEED SENSOR RH - -

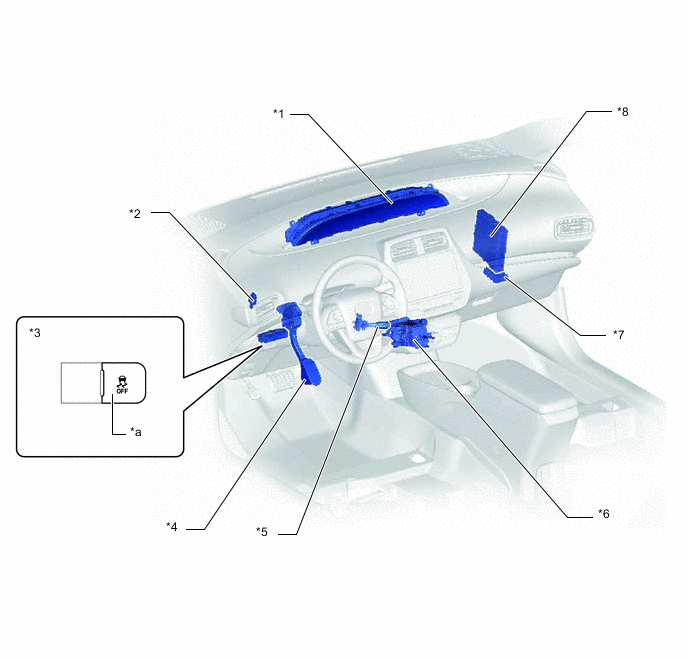

A003JEWC04
*1

COMBINATION METER ASSEMBLY


  • CRUISE CONTROL INDICATOR LIGHT

  • CRUISE SET INDICATOR LIGHT

  • MULTI-INFORMATION DISPLAY

  • MASTER WARNING LIGHT

  • BUZZER

 *2 STOP LIGHT SWITCH ASSEMBLY
*3 COMBINATION SWITCH ASSEMBLY *4 ACCELERATOR PEDAL SENSOR ASSEMBLY
*5 CRUISE CONTROL SWITCH *6

SHIFT LOCK CONTROL UNIT ASSEMBLY


  • SHIFT LEVER POSITION SENSOR
*7 NETWORK GATEWAY ECU *8 HYBRID VEHICLE CONTROL ECU
*a VSC OFF (TRC OFF) Switch - -
