PLUG-IN CHARGE CONTROL SYSTEM


  1. CONSTRUCTION


    1. An SOC indicator showing the state of charge of the HV battery is located on the upper side of the instrument panel on the front passenger side.

    2. The state of charge of the HV battery is indicated by illuminating or flashing the 3 indicators.

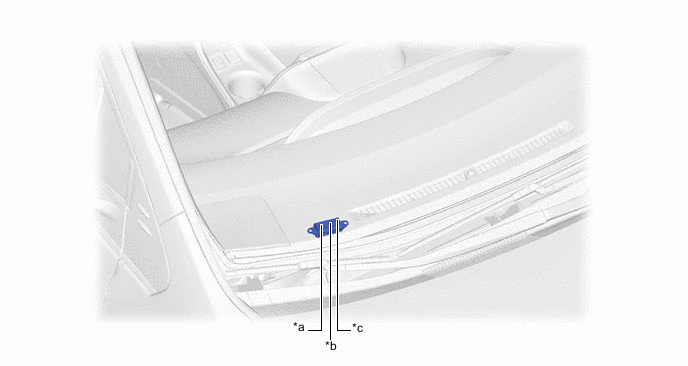

      Figure 1. LHD Models

      A003JALC01
      *a INL1 *b INL2
      *c INL3 - -

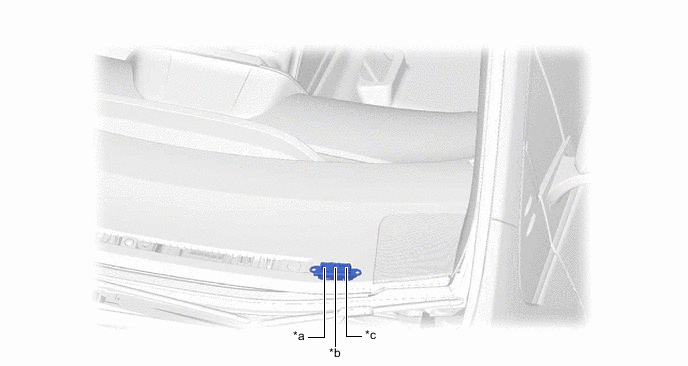

      Figure 2. RHD Models

      A003JE3C01
      *a INL1 *b INL2
      *c INL3 - -

  2. OPERATION

    Indication patterns during AC charging
    SOC INL1 INL2 INL3
    Low SOC Level Flashes Not illuminated Not illuminated
    Medium SOC Level Illuminated Flashes Not illuminated
    High SOC Level Illuminated Illuminated Flashes
    Indication patterns before charging or when charging is suspended.
    SOC INL1 INL2 INL3
    Low SOC Level Illuminated Not illuminated Not illuminated
    Medium SOC Level Illuminated Illuminated Not illuminated
    High SOC Level Illuminated Illuminated Illuminated
    Fully Charged Illuminated Illuminated Illuminated
