HYBRID CONTROL SYSTEM


  1. CONSTRUCTION


    1. The power cable (HV floor under wire, air conditioner wire and HV battery Charger wire) are set of high-voltage, high-amperage cables that connect the HV battery with the inverter with converter assembly, the inverter with converter assembly with MG1 and MG2, and the inverter with converter assembly with the compressor with motor assembly.

    2. The power cable (HV floor under wire, air conditioner wire and HV battery Charger wire) are made of shielded cables in order to reduce electromagnetic interference.

    3. For identification purposes, the high-voltage wiring harness and connectors are color-coded orange to distinguish them from those of ordinary low-voltage wiring.

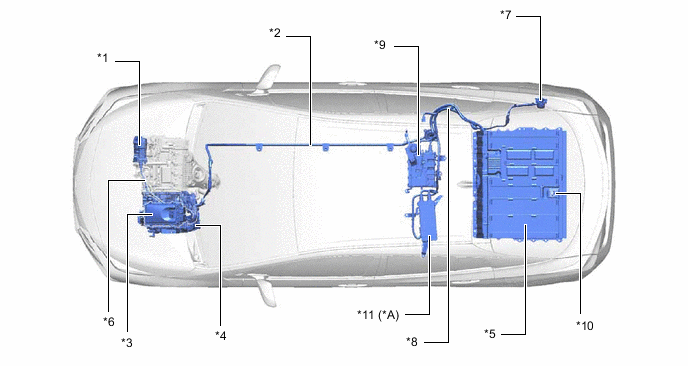

      A003IT8C01
      *A Models with Solar Charging System - -
      *1 Compressor with Motor Assembly *2 Power Cable (HV Floor Under Wire)
      *3 Inverter with Converter Assembly *4 Hybrid Vehicle Transaxle Assembly
      *5 HV Battery *6 Power Cable (Air Conditioner Wire)
      *7 Charge Inlet (AC Charger Inlet Cable) *8 Power Cable (HV Battery Charger Wire)
      *9 Electric Vehicle Charger Assembly *10 Service Plug Grip
      *11 Solar Energy Control ECU - -
