POWER DOOR LOCK CONTROL SYSTEM

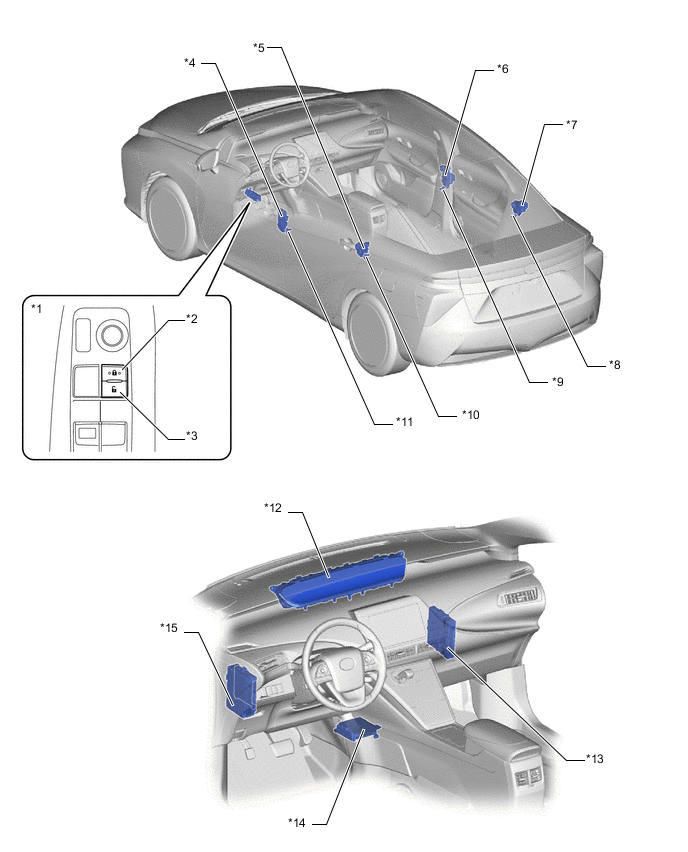

Figure 1. (LHD Model)
| *1 | Multiplex Network Master Switch Assembly (Door Control Switch) | *2 | Door Lock Switch |
| *3 | Door Unlock Switch | *4 | Front Door Lock with Motor Assembly LH |
| *5 | Rear Door Lock with Motor Assembly LH | *6 | Front Door Lock with Motor Assembly RH |
| *7 | Rear Door Lock with Motor Assembly RH | *8 | Rear Door Courtesy Light Switch (RH) |
| *9 | Front Door Courtesy Light Switch (RH) | *10 | Rear Door Courtesy Light Switch (LH) |
| *11 | Front Door Courtesy Light Switch (LH) | *12 | Combination Meter Assembly |
| *13 | EV Control ECU | *14 | Airbag ECU Assembly |
| *15 | Main Body ECU (Multiplex Network Body ECU) | - | - |

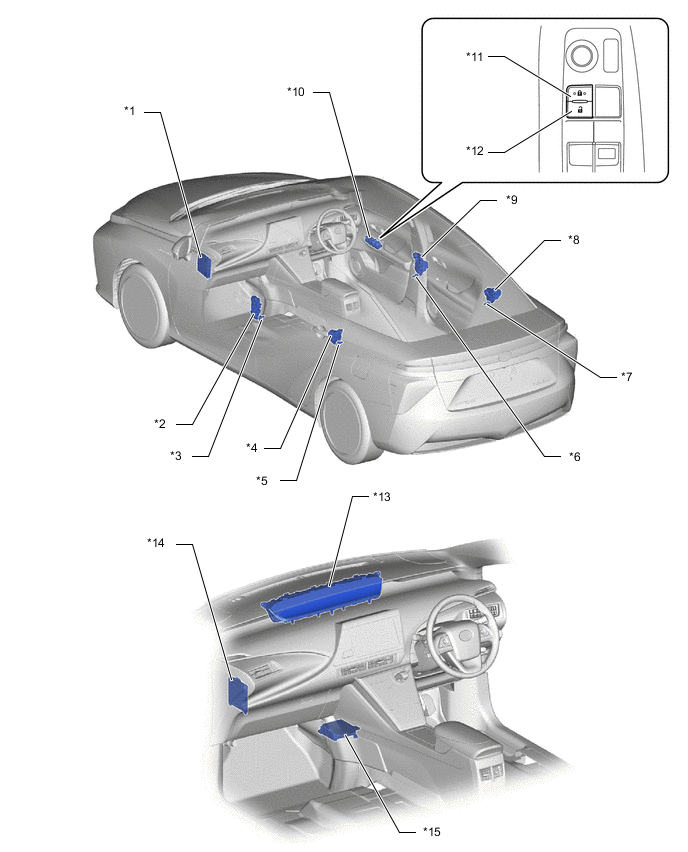

Figure 2. (RHD Model)
| *1 | EV Control ECU | *2 | Front Door Lock with Motor Assembly LH |
| *3 | Front Door Courtesy Light Switch (LH) | *4 | Rear Door Lock with Motor Assembly LH |
| *5 | Rear Door Courtesy Light Switch (LH) | *6 | Front Door Courtesy Light Switch (RH) |
| *7 | Rear Door Courtesy Light Switch (RH) | *8 | Rear Door Lock with Motor Assembly RH |
| *9 | Front Door Lock with Motor Assembly RH | *10 | Multiplex Network Master Switch Assembly (Door Control Switch) |
| *11 | Door Lock Switch | *12 | Door Unlock Switch |
| *13 | Combination Meter Assembly | *14 | Main Body ECU (Multiplex Network Body ECU) |
| *15 | Airbag ECU Assembly | - | - |
