AIRBAG SYSTEM

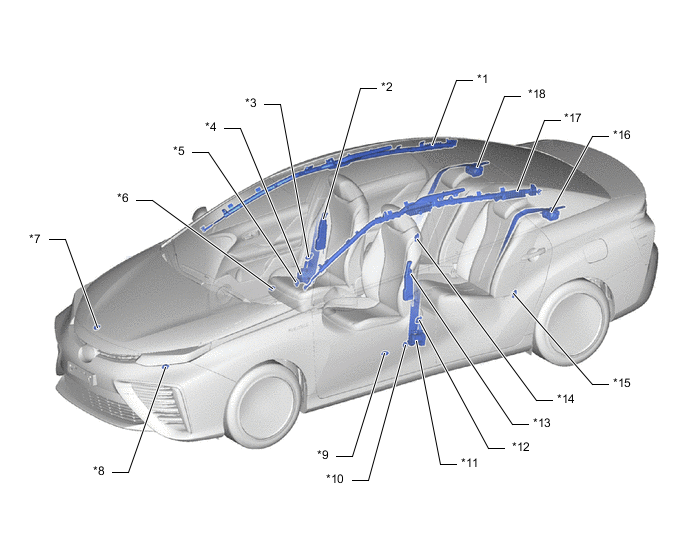

| *1 | SRS Curtain Shield Airbag RH (Curtain Shield Airbag Assembly RH) | *2 | SRS Front Side Airbag RH (Front Seat Airbag Assembly RH) |
| *3 | Side Airbag Sensor Assembly RH | *4 | Front Seat Outer Belt Assembly RH |
| *5 | No. 2 Side Airbag Sensor Assembly RH | *6 | Door Side Airbag Sensor RH |
| *7 | Front Airbag Sensor RH | *8 | Front Airbag Sensor LH |
| *9 | Door Side Airbag Sensor LH | *10 | No. 2 Side Airbag Sensor Assembly LH |
| *11 | Front Seat Outer Belt Assembly LH | *12 | Side Airbag Sensor Assembly LH |
| *13 | SRS Front Side Airbag LH (Front Seat Airbag Assembly LH) | *14 | Rear Airbag Sensor RH |
| *15 | Rear Airbag Sensor LH | *16 | Rear Seat 3 Point Type Outer Belt Assembly LH |
| *17 | SRS Curtain Shield Airbag LH (Curtain Shield Airbag Assembly LH) | *18 | Rear Seat 3 Point Type Outer Belt Assembly RH |

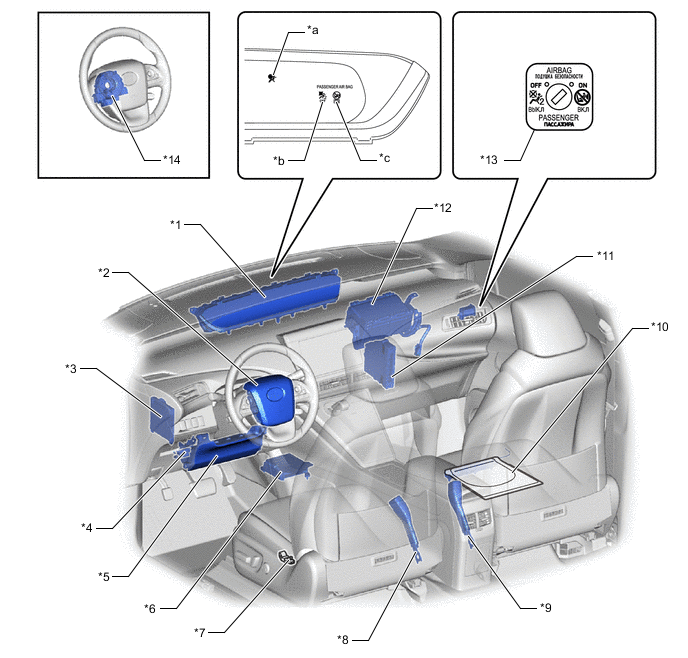

| *1 | Combination Meter Assembly | *2 | SRS Driver Airbag (Horn Button Assembly) |
| *3 | Main Body ECU (Multiplex Network Body ECU) | *4 | DLC3 |
| *5 | SRS Driver Knee Airbag (Lower No. 1 Instrument Panel Airbag Assembly) | *6 | Airbag ECU Assembly |
| *7 | Seat Position Airbag Sensor | *8 | Front Seat Inner Belt Assembly LH
|
| *9 | Front Seat Inner Belt Assembly RH
|
*10 | SRS Front Seat Cushion Airbag (Front Seat Cushion Airbag Assembly RH) |
| *11 | EV Control ECU | *12 | SRS Front Passenger Airbag (Instrument Panel Passenger Airbag without Door Assembly) |
| *13 | Airbag Cut Off Switch Cylinder Sub-assembly | *14 | Spiral Cable with Sensor Sub-assembly |
| *a | SRS Airbag Warning Light | *b | AIRBAG OFF Indicator Light |
| *c | AIRBAG ON Indicator Light | - | - |
