LANE DEPARTURE ALERT SYSTEM


  1. OPERATION

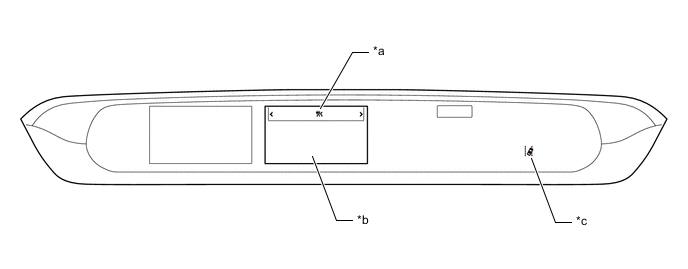

    1. The combination meter assembly illuminates the indicator lights or displays an indicator on the multi-information display, and sounds a buzzer.

      A01M9ZYC01
      *a Driving Assist System Tab *b Multi-information Display
      *c LDA Indicator Light - -

    2. The following display contents are shown on the multi-information display depending on driver switch operations and road conditions.

      Condition Multi-information Display A01MA3Z Buzzer

      • LDA Main Switch is Off

      • Navigate to Driving Assist System Tab

      		 A01MA9U Does not illuminate -

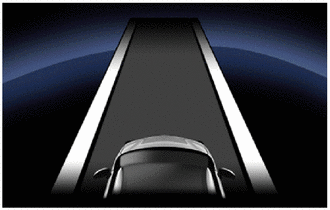

      • Approximately 50 km/h (32 mph) or more

      • Lane Markers Detected

      		 A01MACU Illuminated -

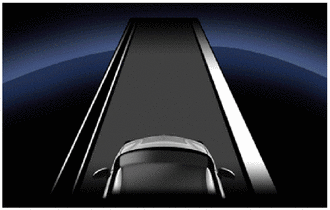

      • Approximately 50 km/h (32 mph) or more

      • One Lane Marker Detected

      		 A01MA6Q Illuminated -

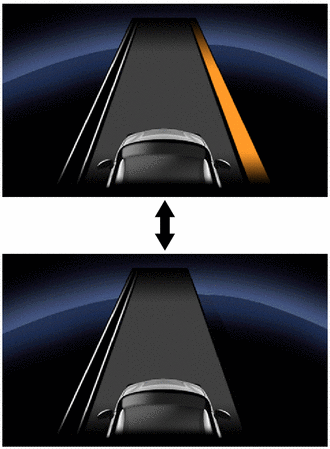

      • Approximately 50 km/h (32 mph) or more

      • Lane Deviation Warning Operating

      		 A01MA6L Illuminated Sounds 2 seconds maximum
      The lane marker icons blink

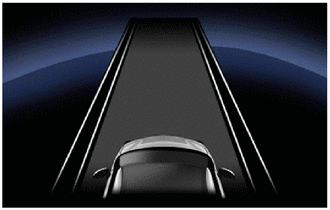

      • Approximately 50 km/h (32 mph) or more

      • Lane Markers Not Detected

      		 A01MA6G Illuminated -
      Below Approximately 50 km/h (32 mph)
      Warning Messages
      Condition Multi-information Display A01MA3Z Buzzer
      Temperature of Lane Departure Warning Camera is Abnormal Lane Departure Alert Unavailable Camera Overheated Does not illuminate Sounds once
      System Malfunction Lane Departure Alert Malfunction Visit Your Dealer Does not illuminate Sounds once
      Lane Departure Warning Camera Angle Being Adjusted ADJUSTING LDA CAMERA Does not illuminate -
      Below Approximately 50 km/h (32 mph) Lane Departure Alert System is Unavailable Below Approx. 50 km/h. Illuminate -
