CLUTCH SYSTEM


  1. SYSTEM CONTROL


    1. The clutch start system prevents the starter from cranking unless the clutch pedal is depressed. When the engine is started with the shift lever in a position other than neutral, it helps ensure safety by preventing the vehicle from moving unintentionally.

      Figure 1. Models without Smart Entry and Start System

      B002MSGE01

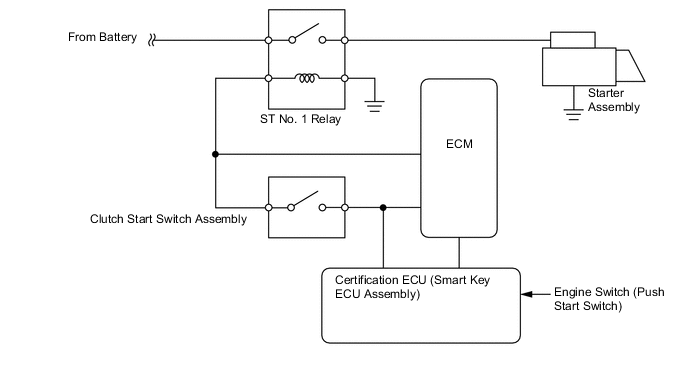

      Figure 2. Models with Smart Entry and Start System

      B002MV6E01
