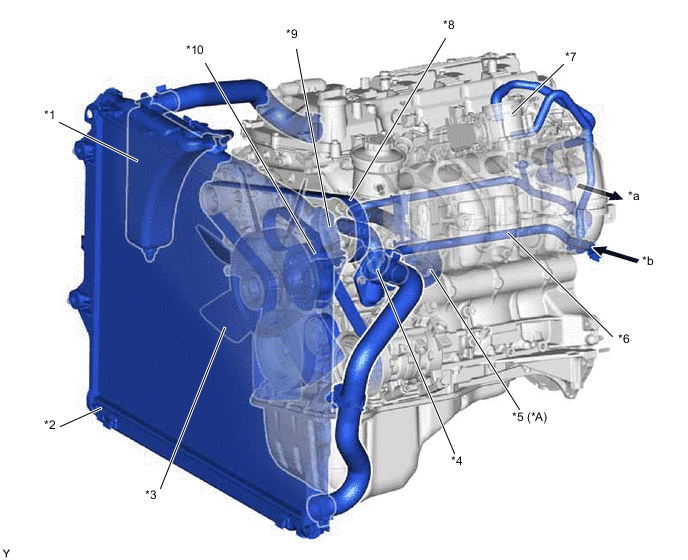

COOLING SYSTEM
| *A | Models with Oil Cooler | - | - |
| *1 | Radiator Reserve Tank Assembly | *2 | Radiator Assembly |
| *3 | Fan | *4 | Thermostat |
| *5 | Oil Cooler | *6 | Water Bypass Pipe |
| *7 | Throttle Body with Motor Assembly | *8 | V-ribbed Belt (Fan and Generator V Belt) |
| *9 | Engine Water Pump Assembly | *10 | Fluid Coupling Assembly |
| *a | To Heater Core | *b | From Heater Core |
