COOLING SYSTEM

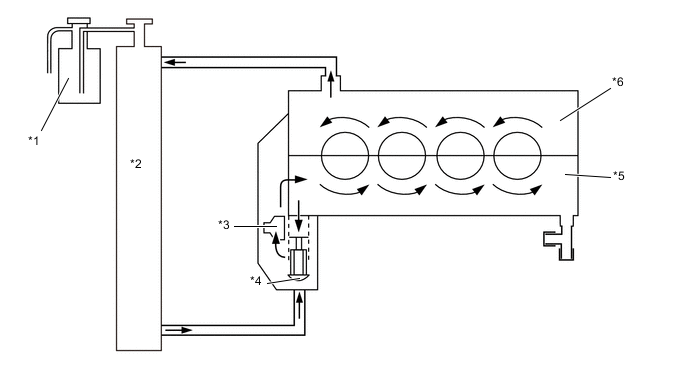

Figure 1. Models for Philippines with Manual Cooler System
| *1 | Radiator Reserve Tank Assembly | *2 | Radiator Assembly |
| *3 | Engine Water Pump Assembly | *4 | Thermostat |
| *5 | Cylinder Block | *6 | Cylinder Head |
 |
Coolant Flow | - | - |

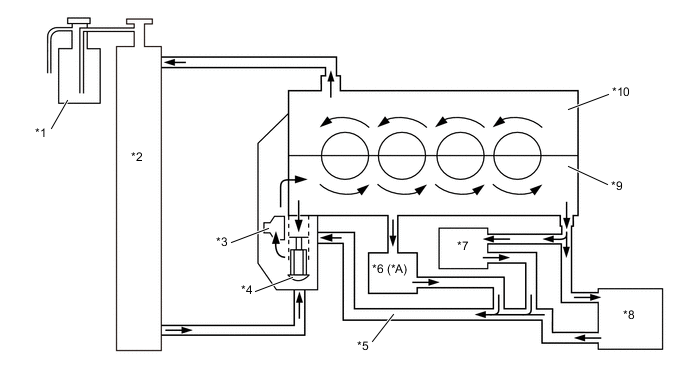

Figure 2. Except Models for Philippines with Manual Cooler System
| *A | Models with Oil Cooler | - | - |
| *1 | Radiator Reserve Tank Assembly | *2 | Radiator Assembly |
| *3 | Engine Water Pump Assembly | *4 | Thermostat |
| *5 | Water Bypass Pipe | *6 | Oil Cooler |
| *7 | Throttle Body with Motor Assembly | *8 | Heater Core |
| *9 | Cylinder Block | *10 | Cylinder Head |
| |
Coolant Flow | - | - |
