EXHAUST SYSTEM

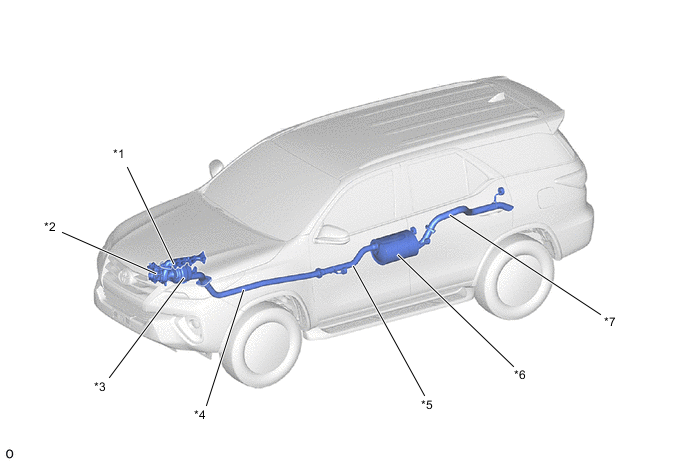

Figure 1. Models with EGR Cooler
| *1 | Exhaust Manifold | *2 | Turbocharger Sub-assembly |
| *3 | Exhaust Manifold Converter Sub-assembly
|
*4 | Front Exhaust Pipe Assembly |
| *5 | Center Exhaust Pipe Assembly | *6 | Main Muffler |
| *7 | Tail Exhaust Pipe Assembly | - | - |
Figure 2. Models without EGR Cooler
| *1 | Exhaust Manifold | *2 | Turbocharger Sub-assembly |
| *3 | Turbine Outlet Elbow | *4 | Front Exhaust Pipe Assembly |
| *5 | Sub Muffler | *6 | Center Exhaust Pipe Assembly |
| *7 | Main Muffler | *8 | Tail Exhaust Pipe Assembly |
