INTAKE SYSTEM


  1. CONSTRUCTION


    1. The intake location for EGR gas is optimized to control differences in EGR gas volume between cylinders, improving fuel economy and reducing noise and vibration.

    2. A curved surface is used for the intake manifold to reduce noise from the engine.

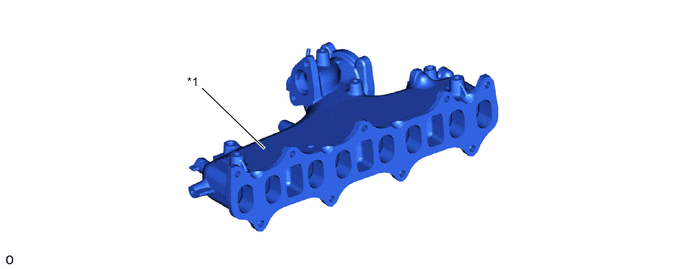

      B002NC0C01
      *1 Intake Manifold - -
