METER / GAUGE SYSTEM

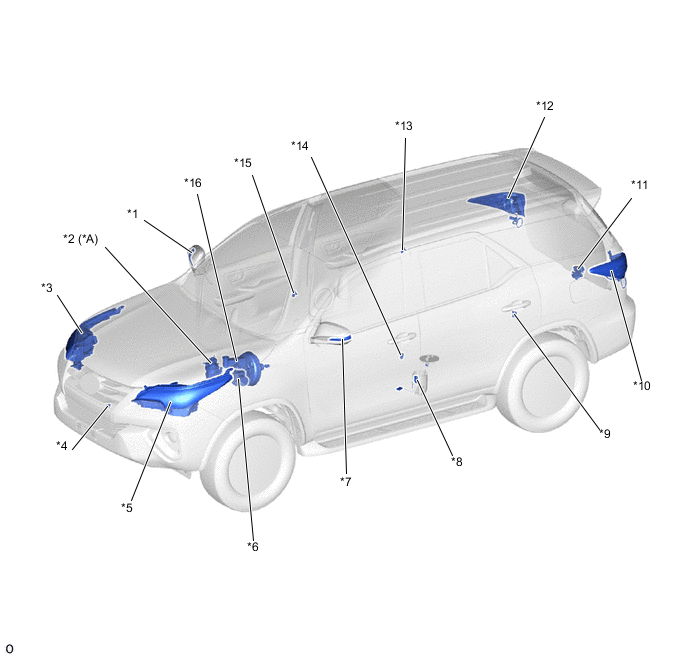

B002NBUC02
*A Models with Diesel Engine - -
*1 Side Turn Signal Light Assembly RH *2

Fuel Filter Assembly


  • Sedimenter Level Warning Switch
*3

Headlight Assembly RH


  • Front Turn Signal Light

 *4 Thermistor Assembly (Ambient Temperature Sensor)
*5

Headlight Assembly LH


  • Front Turn Signal Light

 *6

Brake Actuator Assembly


  • Skid Control ECU
*7 Side Turn Signal Light Assembly LH *8 Fuel Sender Gauge Assembly
*9 Rear Door Courtesy Light Switch Assembly (LH) *10

Rear Combination Light Assembly LH


  • Rear Turn Signal Light
*11

Back Door lock Assembly


  • Back Door Courtesy Light Switch

 *12

Rear Combination Light Assembly RH


  • Rear Turn Signal Light
*13 Rear Door Courtesy Light Switch Assembly (RH) *14 Front Door Courtesy Light Switch Assembly (LH)
*15 Rear Door Courtesy Light Switch Assembly (RH) *16

Master Cylinder Reservoir Assembly


  • Brake Level Warning Switch

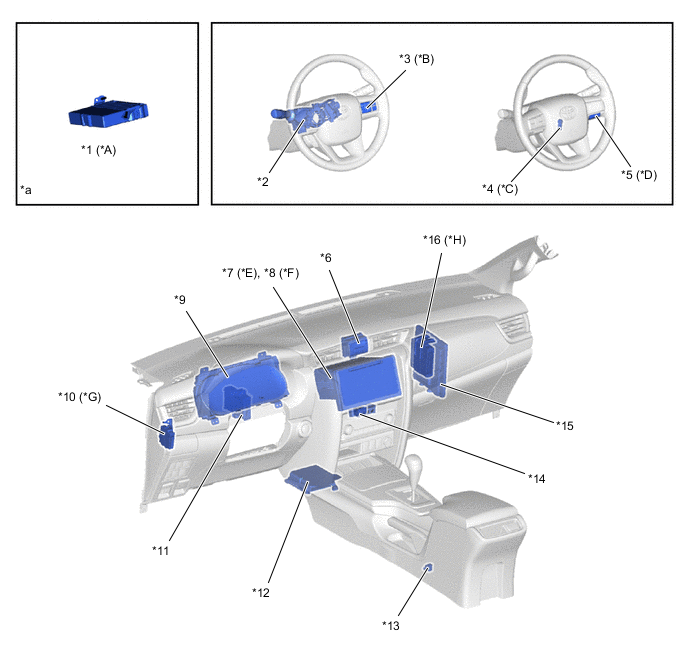

B002NFJC03
*A Models with Entry and Start System *B Models with Optitron Type Combination Meter Assembly
*C Models without Entry and Start System *D Models with Analog Type Combination Meter Assembly with Dot Display Type Multi-information Display
*E Models with Navigation System *F Models with Display Audio System
*G Models with Automatic Headlight Beam Level Control System *H 4WD Models
*1 Certification ECU (Smart Key ECU Assembly) *2 Headlight Dimmer Switch Assembly
*3

Steering Pad Switch Assembly


  • RIGHT/LEFT/UP/DOWN/Enter Switch

 *4 Key Unlock Warning Switch Assembly
*5

Steering Pad Switch Assembly


  • DISP Switch

 *6

Clock Assembly


  • Hazard Warning Switch
*7 Navigation Receiver Assembly *8 Radio and Display Receiver Assembly
*9 Combination Meter Assembly *10 Headlight Leveling ECU Assembly
*11 Body ECU *12 Airbag Sensor Assembly
*13 Parking Brake Switch Assembly *14 Telltale Light Assembly
*15 ECM *16 4 Wheel Drive Control ECU
*a Refer to the Service Bulletin for the installation of the part. - -

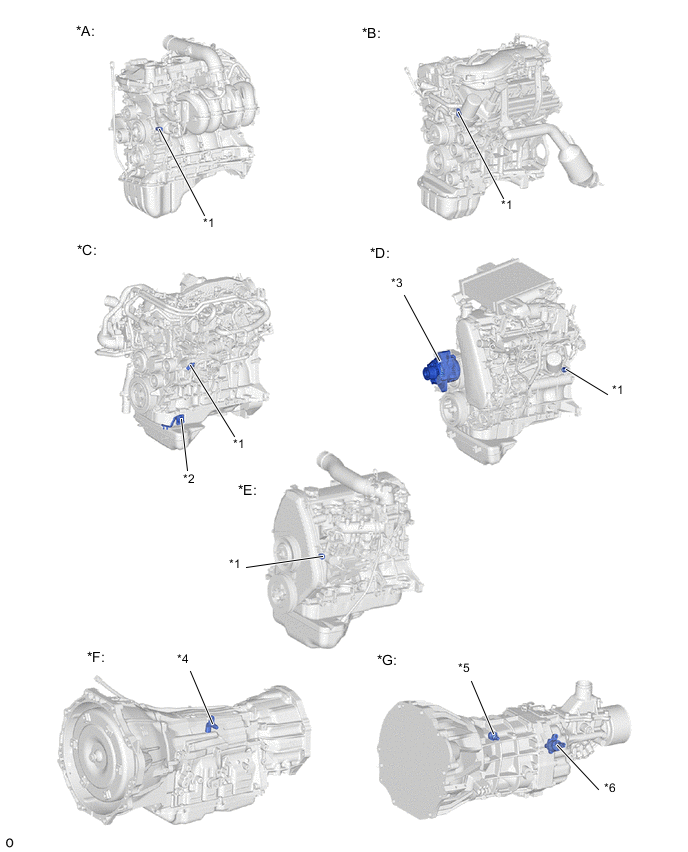

B002NDJC01
*A Models with 2TR-FE Engine *B Models with 1GR-FE Engine
*C Models with 1GD-FTV or 2GD-FTV Engine *D Models with 1KD-FTV or 2KD-FTV Engine
*E Models with 5L-E Engine *F Models with Automatic Transmission
*G Models with Manual Transmission - -
*1 Engine Oil Pressure Switch Assembly *2 Engine Oil Level Sensor Assembly
*3 Generator Assembly *4 Transmission Revorution Sensor
*5 Back-up Light Switch Assembly *6 Speedmeter Sensor

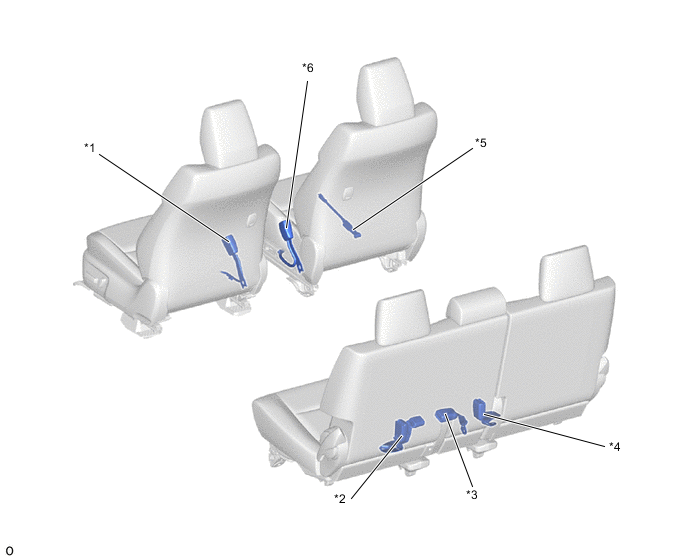

B002MXEC01
*1

Front Seat Inner Belt Assembly LH


  • Buckle Switch

 *2

Rear No. 1 Seat Lap Type Belt Assembly CTR


  • Buckle Switch
*3

Rear Seat Lap Type Belt Assembly CTR RH


  • Buckle Switch

 *4

Rear No. 1 Seat Inner Belt Assembly RH


  • Buckle Switch
*5 Occupant Detention Sensor *6

Front Seat Inner Belt Assembly RH


  • Buckle Switch
