METER / GAUGE SYSTEM

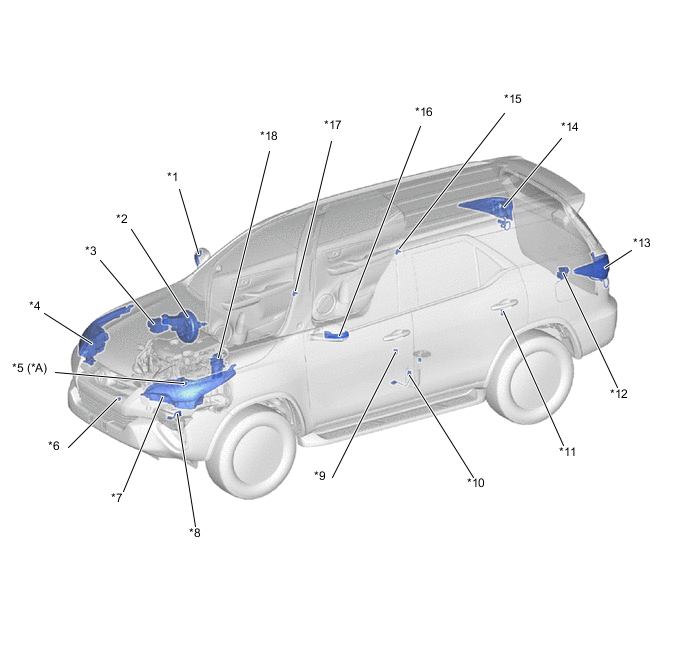

B002MT0C01
*1 Side Turn Signal Light Assembly RH *2

Brake Master Cylinder Sub-assembly


  • Brake Master Cylinder Reservoir Assembly
*3

Brake Actuator Assembly


  • Skid Control ECU

 *4

Headlight Assembly RH


  • Front Turn Signal Light
*5 Engine Oil Pressure Switch Assembly *6 Thermistor Assembly (Ambient Temperature Sensor)
*7

Headlight Assembly LH


  • Front Turn Signal Light

 *8 Engine Oil Level Sensor
*9 Front Door Courtesy Light Switch Assembly (LH) *10 Fuel Sender Gauge Assembly
*11 Rear Door Courtesy Light Switch Assembly (LH) *12 Back Door Lock Assembly
*13

Rear Combination Light Assembly LH


  • Rear Turn Signal Light

 *14

Rear Combination Light Assembly RH


  • Rear Turn Signal Light
*15 Rear Door Courtesy Light Switch Assembly (RH) *16 Side Turn Signal Light Assembly LH
*17 Front Door Courtesy Light Switch Assembly (RH) *18

Fuel Filter Assembly


  • Sedimenter Level Warning Switch

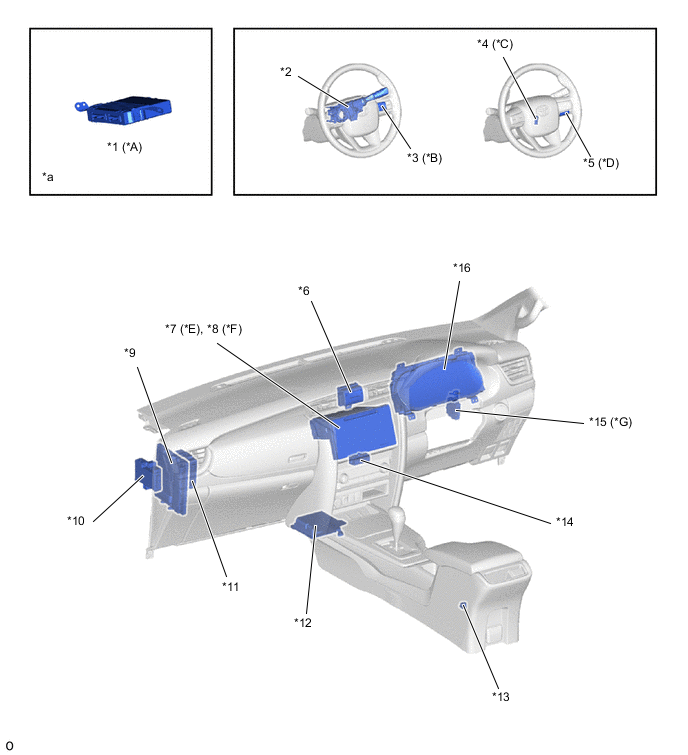

B002NA1C01
*A Models with Smart Entry and Start System *B Models with Optitron Type Combination Meter Assembly
*C Models without Smart Entry and Start System *D Models with Analog Type Combination Meter Assembly with Dot Display Type Multi-information Display
*E Models with Navigation System *F Models with Display Audio System
*G Models with Automatic Headlight Beam Level Control System - -
*1 Certification ECU (Smart Key ECU Assembly) *2 Headlight Dimmer Switch Assembly
*3

Steering Pad Switch Assembly


  • RIGHT/LEFT/UP/DOWN/ENTER Switch

 *4 Unlock Warning Switch Assembly
*5

Steering Pad Switch Assembly


  • DISP Switch

 *6

Clock Assembly


  • Hazard Warning Signal Switch
*7 Navigation Receiver Assembly *8 Radio and Display Receiver Assembly
*9 ECM *10 Body ECU
*11 4 Wheel Drive Control ECU *12 Airbag ECU (Airbag Sensor Assembly)
*13 Parking Brake Switch Assembly *14 Telltale Light Assembly
*15 Headlight Leveling ECU Assembly *16 Combination Meter Assembly
*a Refer to the Service Bulletin for the installation of the part. - -

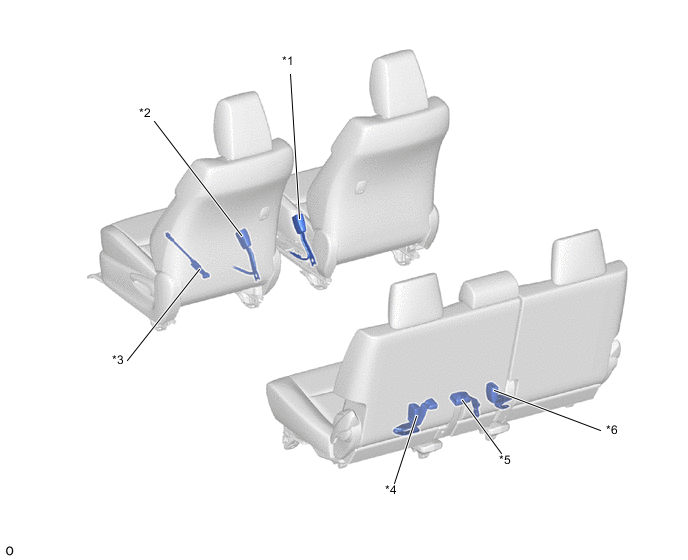

B002NAWC01
*1

Front Seat Inner Belt Assembly RH


  • Buckle Switch

 *2

Front Seat Inner Belt Assembly LH


  • Buckle Switch
*3 Occupant Detection Sensor *4

Rear No. 1 Seat Lap Type Belt Assembly CTR


  • Buckle Switch
*5

Rear Seat Lap Type Belt Assembly CTR RH


  • Buckle Switch

 *6

Rear No. 1 Seat Inner Belt Assembly RH


  • Buckle Switch
