FOUR WHEEL DRIVE CONTROL SYSTEM

B002MV4C02

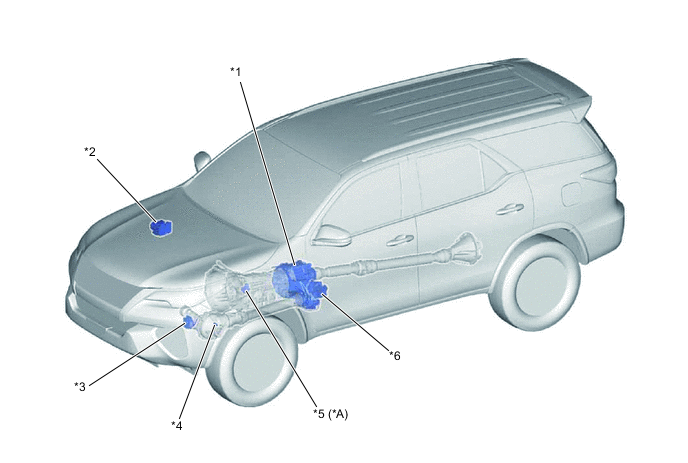

*A Models with Automatic Transmission - -
*1 Transfer Assembly *2

Brake Actuator Assembly


  • Skid Control ECU
*3

A.D.D. Actuator (Differential Motor Actuator Assembly)


  • A.D.D. Shift Motor

  • Limit Switch DL1

  • Limit Switch DL2

  • A.D.D. Position Switch

 *4 Oil Temperature Sensor
*5 Park/Neutral Position Switch Assembly *6

Transfer Shift Actuator Assembly


  • Transfer Shift Motor

  • Limit Switch TL1

  • Limit Switch TL2

  • Limit Switch TL3

  • 4WD Detection Switch

  • L4 Detection Switch
B002NE6C01

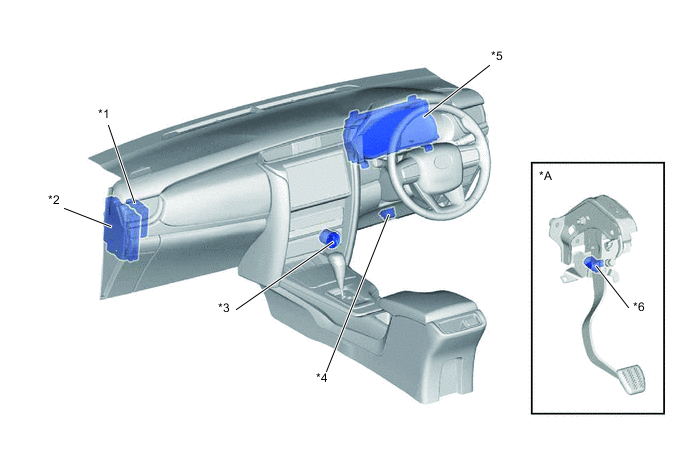

*A Models with Manual Transmission - -
*1 4 Wheel Drive Control ECU *2 ECM
*3 Transfer Position Switch *4 DLC3
*5 Combination Meter Assembly *6 Clutch Start Switch Assembly
