TIRE PRESSURE WARNING SYSTEM

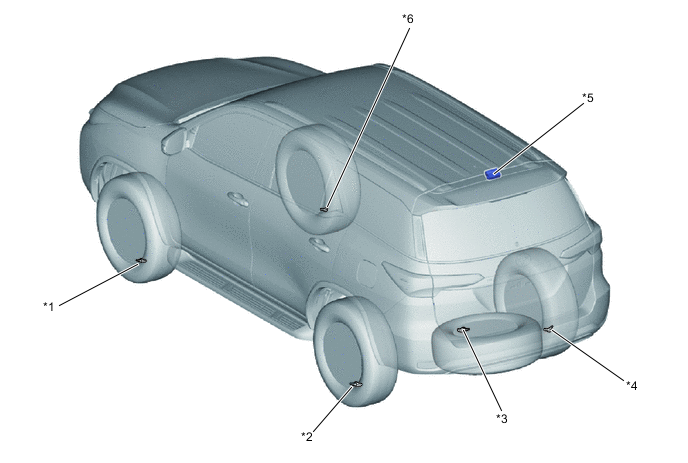

| *1 | Tire Pressure Warning Valve and Transmitter (Front LH) | *2 | Tire Pressure Warning Valve and Transmitter (Rear LH) |
| *3 | Tire Pressure Warning Valve and Transmitter (Spare Tire) | *4 | Tire Pressure Warning Valve and Transmitter (Rear RH) |
| *5 | Tire Pressure Warning ECU and Receiver | *6 | Tire Pressure Warning Valve and Transmitter (Front RH) |
Figure 1. Arab American Vehicle Co. (AAV) Made Models

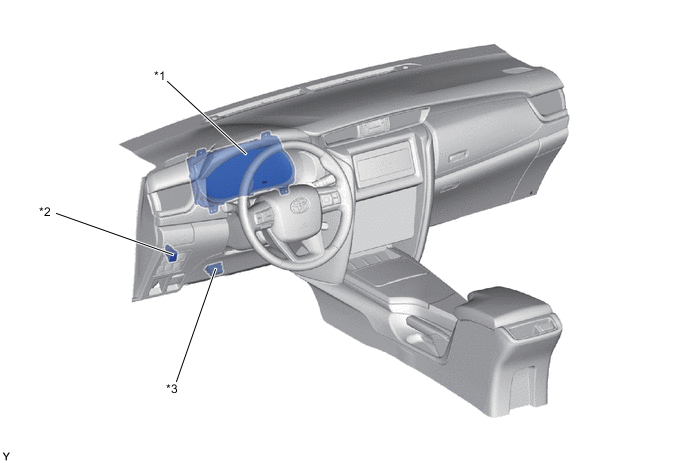

| *1 | Combination Meter Assembly | *2 | Tire Pressure Warning Reset Switch |
| *3 | DLC3 | - | - |
Figure 2. Except AAV Made Models
| *1 | Combination Meter Assembly | *2 | DLC3 |
| *3 | Tire Pressure Warning Reset Switch | - | - |
