WIPER AND WASHER SYSTEM


  1. CONSTRUCTION


    1. Front Washer Nozzle


      1. Diffuser type washer nozzles are located under the engine hood to ensure good appearance.

      2. With the adoption of the diffuser type washer nozzles, only a small amount of washer fluid is needed to spray over a large area, realizing excellent wiping performance.

        Tech Tips

        Diffuser type washer nozzles cannot be adjusted because of their structure. Do not attempt to adjust the nozzles as it could damage them. If adjustment is necessary, adjust the spray pattern by replacing the nozzles with those selected from the 3 part numbers available. For details, refer to the Repair Manual.

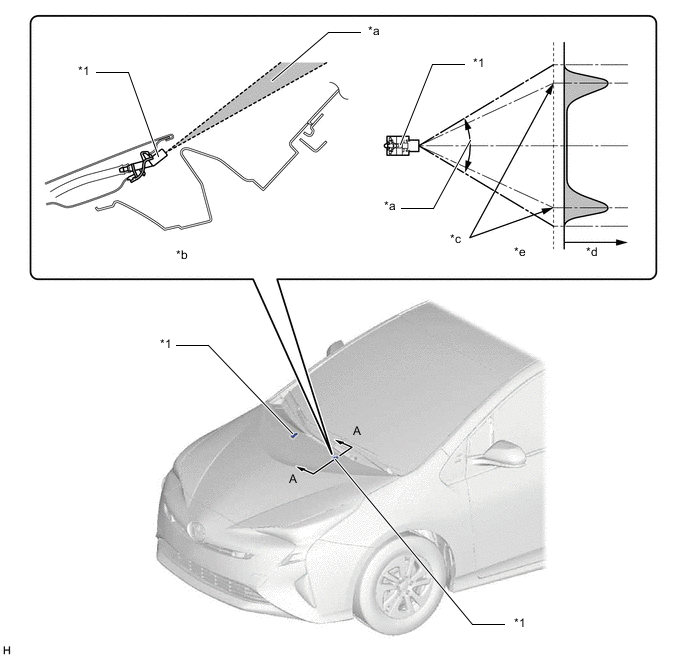

        A01RGCZC01
        *1 Washer Nozzle Sub-assembly - -
        *a Washer Fluid Contact Area *b A-A cross section
        *c Main Flow Center *d Fluid Volume
        *e Washer Fluid Volume Distribution (Top View) - -

    2. Rear Washer Nozzle


      1. A flat spray type nozzle is used for the rear washer nozzle to spray washer fluid which spreads like a fan, enlarging the washer fluid contact area and enhancing the wiping function.

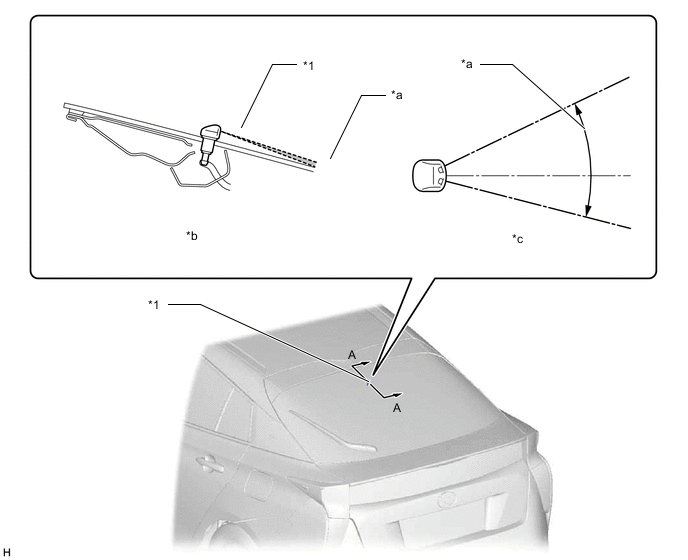

        A01RGO1C02
        *1 Rear Washer Nozzle - -
        *a Washer Fluid Contact Area *b A-A cross section
        *c Washer Fluid Volume Distribution (Top View) - -
