WIPER AND WASHER SYSTEM

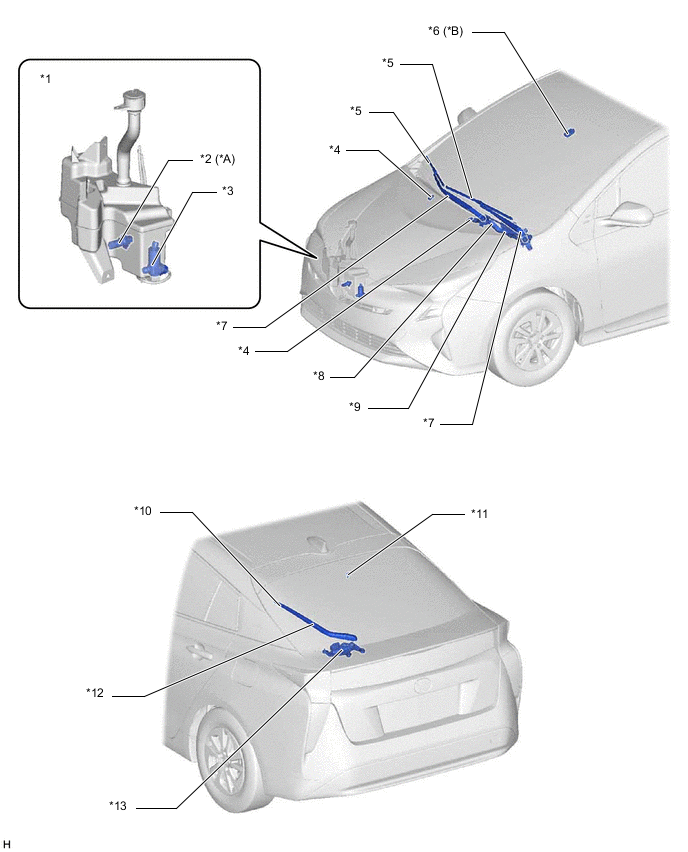

Figure 1. LHD Models
| *A | Models with Washer Fluid Warning Function | *B | Models with Rain Sensing Function |
| *1 | WINDSHIELD WASHER JAR ASSEMBLY | *2 | WASHER FLUID LEVEL WARNING SWITCH |
| *3 | WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY | *4 | WASHER NOZZLE SUB-ASSEMBLY |
| *5 | FRONT WIPER BLADE | *6 | RAIN SENSOR |
| *7 | FRONT WIPER ARM | *8 | WINDSHIELD WIPER LINK ASSEMBLY |
| *9 | WINDSHIELD WIPER MOTOR ASSEMBLY | *10 | REAR WIPER BLADE |
| *11 | REAR WASHER NOZZLE | *12 | REAR WIPER ARM |
| *13 | REAR WIPER MOTOR ASSEMBLY | - | - |

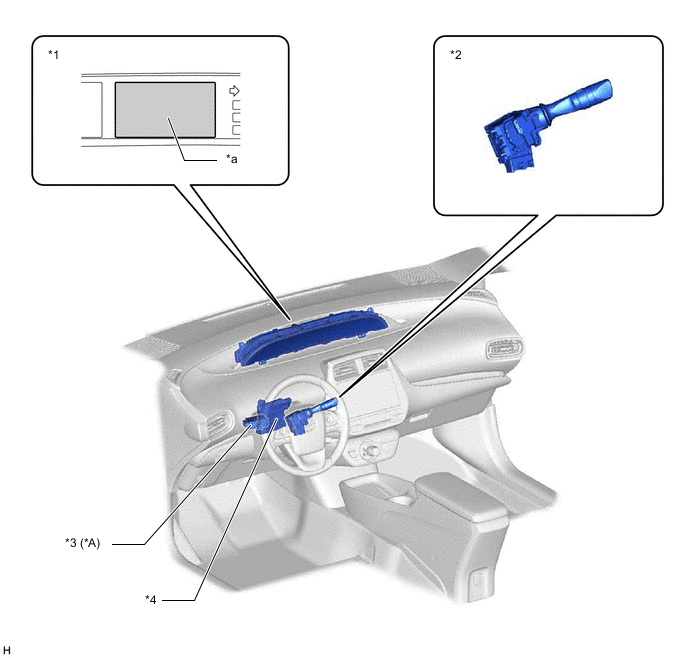

| *A | Models with Rain Sensing Function | - | - |
| *1 | COMBINATION METER ASSEMBLY | *2 | WINDSHIELD WIPER SWITCH ASSEMBLY |
| *3 | WINDSHIELD WIPER RELAY ASSEMBLY | *4 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *a | Multi-information Display | - | - |
Figure 2. RHD Models
| *A | Models with Washer Fluid Warning Function | *B | Models with Rain Sensing Function |
| *1 | WINDSHIELD WASHER JAR ASSEMBLY | *2 | WASHER FLUID LEVEL WARNING SWITCH |
| *3 | WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY | *4 | FRONT WIPER ARM |
| *5 | FRONT WIPER BLADE | *6 | WINDSHIELD WIPER MOTOR ASSEMBLY |
| *7 | RAIN SENSOR | *8 | WINDSHIELD WIPER LINK ASSEMBLY |
| *9 | WASHER NOZZLE SUB-ASSEMBLY | *10 | REAR WIPER BLADE |
| *11 | REAR WASHER NOZZLE | *12 | REAR WIPER ARM |
| *13 | REAR WIPER MOTOR ASSEMBLY | - | - |

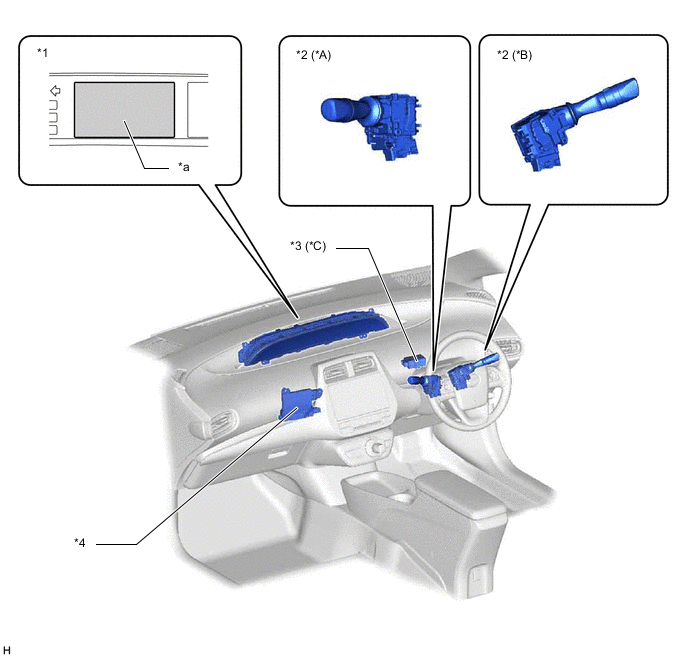

| *A | for Windshield Wiper Switch LH Side Models | *B | for Windshield Wiper Switch RH Side Models |
| *C | Models with Rain Sensing Function | - | - |
| *1 | COMBINATION METER ASSEMBLY | *2 | WINDSHIELD WIPER SWITCH ASSEMBLY |
| *3 | WINDSHIELD WIPER RELAY ASSEMBLY | *4 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *a | Multi-information Display | - | - |
